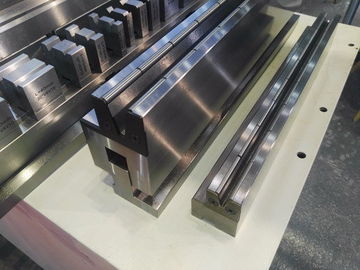

30 Degree Hardness Bending Die Punching Press Brake Tooling With 3150mm Length
-
High Light
metal bending tools
,hydraulic press tools
-
SpecificationAs Per European Or Italy ,Us Internation Standard
-
NameHydraulic Press Brake Die/CNC Press Brake Tooling
-
Segment415mm Or 500mm Standard
-
Horns Of PunchingL & R As Standard
-
Mold Cavity TechnologyCNC Milling Machining
-
Process CombinationSingle-Process Mould
-
Place of OriginChina
-
Brand NameWXJQ
-
CertificationISO9001
-
Model Number100T
-
Minimum Order Quantity1 set
-
Packaging Detailssteel box and wooden case
-
Delivery Time30 days
30 Degree Hardness Bending Die Punching Press Brake Tooling With 3150mm Length
30 Degree Hardness Bending Die High Quality Press Brake Punching Tooling With 3150mm Length
providing press brake tooling, press brake die, bending machine tools, punching die, shear blade.
Description of bending toolings:
4 way die Press Brake tooling for CNC Press Brake - China Supplier
We supplied Press Brake Tooling for Amada Press Brake,
Durama Press brake, LVD Press Brake with different stypes as Italy standard
or European Standards.
Press Brake Tooling, Material:
42CrMo, 42CrMo4, wheeled Steel. D2Steel.
415mm and 835mm. Horns avaliable
Hardness:
HRC: 48o+2o.
Hardened and Grounded
Full Length or Segment 835mm & 415mm with italy or European standards
| material of press brake die | |
| 9 crsi, Cr12Mov, W6Mo5Cr4V2 W18Cr4V | SKD - 11, LD, T10, W18, W6, etc. |
draulic bending machine mould is our competitive price and high quality, durable and compatible with the mold.
| Material | 42CrMo=SCM440=42CrMo4=4140 |
| General Hardness | HRC: 47±3° |
| Surface Tolerance | 0.02mm |
| Sectioned | AVAILABLE |
| Certification | ISO9001:2008 |
| Supplying Brands | amada, tokyo, trumpf, LVD, YSD, beyeler, etc. |
| OEM & ODM Service | available |
| CUSTOMIZE & DESIGN Service | available |
| Tool Refurbishment Service | available |
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype:zouqicheng
QQ:2308574039
Information of CNC press brake tools:
| Application | cnc hydraulic press brake tooling mould |
| Material | 42CrMo |
| HRC | 47°±2° |
| Usage | For press brake machine |
| Precision |
Harshness of grinding mouth surface≤0.08μm, Harshness of connection part ≤1.6μm |
| Sample & Production | |
| Sample | No sample provided |
| Production | 10-25 days production time |
| Advantages |
Qualified raw material is the key for quality High tech equipment is the key for precision Experienced workers are the key for success Designed to fit for all types of press brakes OEM and ODM service accepted Small orders accepted Safety package and fast delivery |
press brake matrix details of customer provide:
| Inquiry Sheet for Customers | |||
| Please provide us detail information before quotes | |||
| 1. Bending Machine information | |||
| Brand/Tonnage | 80-2200ton |
Working Length | 2500mm-9000mm |
| Stroke/closing Height | 200-450mm | Working Width | 200-750mm |
| One seam or two seams for pole | One seam | two seams | |
| 2.Steel Sheet information | |||
| Steel Sheet Material | Q235, Q345, S335,Hadrox 250 | ||
| Sheet Thick/Bending Length | 3-30mm thikcness | ||
Materials for Press Brake Dies:
9Crsi, Cr12Mov, W6Mo5Cr4V2, W18Cr4V, SKD-11, LD,T10 ,W18,W6 and so on.
Advantages of CNC press brake mould:
Wide die width range from W24 - W182 possible. Continuous die replacement
is thus not required.
Reduced-imprint bending of rotating and hardened track rollers (minimum wear)
Lower press forces required.
Production of various bending radii.
Decrease in the down times by up to 30% through the fast and easy replacement
of the setting bars.
Minimum maintenance costs: - Replaceable track rollers. - Replaceable protective
foil protecting the die parts against contamination. Low collision contour compared
to the conventional adjustable dies
Our service:
Any question about press brake tooling&dies should be replied in 24 working hours
Experienced staffs will provide professional and technical suggestion on press brake
tooling drawing
Customized design is available OEM&ODM
Increase the order quality or long-term cooperation in the future will get our discount.
download brochure here:
pres brake tooling of jinqiu.pdf
Picture of press brake bottom die with rollers:
Our products are sold all over the world, you can rest assured.
