Automatic 6500KN Large Capacity electrical pole CNC Tandem Press Brake Bending

Automatic 6500KN Large Capacity electrical pole CNC Tandem Press Brake Bending

  • High Light

    bending press brake

    ,

    electric press brake

  • Warranty
    13 Months
  • Product Name
    CNC Press Brake Machine
  • Power
    Hydraulic Type
  • Color
    Green And White Or Customized
  • Application
    Light Pole And Steel Beam
  • Structure
    Welding Steel Structure
  • Material
    Carbon Steel
  • Service
    Provide The Installation And Training Service
  • Place of Origin
    China
  • Brand Name
    JINQIU
  • Certification
    ISO9001
  • Model Number
    2-WE67K-650/7000
  • Minimum Order Quantity
    1set
  • Price
    negotiation
  • Packaging Details
    iron pallet with plastic cover. container: 20'OTx2
  • Delivery Time
    According to the requirement of order
  • Payment Terms
    T/T or L/C
  • Supply Ability
    2 sets per month

Automatic 6500KN Large Capacity electrical pole CNC Tandem Press Brake Bending

Automatic 6500KN Large Capacity electrical pole CNC Tandem Press Brake Bending

european type press brake tool, heavy CNC tandem press brake machine supply


Hydraulic bending machine Packing& Delivery


packing: CNC tandem press brake use steel pallet with Plastic film or Wooden case Seaworthy

packaging for tandem
press brake
container; 40'OTx2,20'OTx2,40'HQx2.
delivery time: 70 days.



650ton CNC plate tandem press brake machine Specification



model 2-WE67K-650/7000 2-WE67K-800/7000
Nominal pressure 4000KN 8000KN
length of table 7000mmx2 7000x2
distance between housing 5600mm 5600mm
Throat depth 1000mm 1250mm
Stroke of ram 320mm 320mm
Idle speed of ram 70mm/s 80mm/s
Working speed of ram 7.5mm/s 8mm/s
Return speed of ram 75mm/s 70mm/s
Open height 960mm 1250mm
Main motor 30KW x2 55KW x2
Volume of oil tank 2100Lx2 2100L x2
Overall size 7150X3580X5515mm 7220x7500x6700
Weight 6500kgx2 98700kgx2


street light pole bending machine Structure


The design of the Hydraulic tandem press brake frame is a critical part of any machine
with relation to its ability to produce accurate parts for a long period of time.
Totally European design,streamlined looking of our Hydraulic tandem press brake
Taking off inner-stress of welded parts by tempering,good stability
 Remove rust with sand-blast and coated with anti-rust paint
Frames, assembly surfaces and connection holes are machined after the welding process,
up to 60' in a single pass.



single press brake equipment:

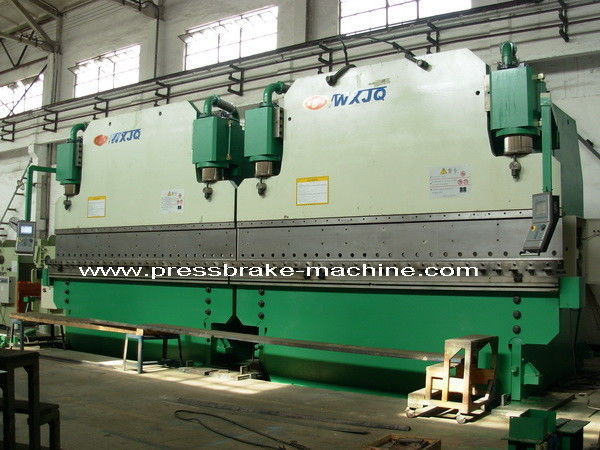

 Automatic 6500KN Large Capacity electrical pole CNC Tandem Press Brake Bending 0

12 meter CNC press brake machine Hydraulic system
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.
Hydraulic system is from Bosch – Rexroth,Germany.
2. Hydraulic tandem press brake all seals in cylinder is PARKER from USA,the most famous
brandgood quality and high performance
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,
and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).



1000ton capacity sheet bending machine with servo proportional vlave:





 CNC control system for hydraulic press brake:
The compact DA-65W is a complete CNC solution for conventional as well as synchronised
press brakes for this Hydraulic tandem press brake.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets
as well as in an optional pendulant arm housing.
 Equipped with the Delem user-friendly user interface, the DA-65W provides all main
Hydraulic tandem press brake functionality.
 The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables
quick and easy programming of a product. All common bend parameters are located on one
page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on
board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.

Electrical System for homemade press brake machine:
Electrical components are imported or from Sino-foreign joint Venture,in accordance with
international standards, reliable safety,long life,good anti-interference ability,a radiation unit
is fitted in electrical cabinet.
Protective fence and the safety interlock to ensure the operation safety. Have a movable
single-hand pedal switch,easy to operate.
The Hydraulic tandem press brake by the European Union CE certification and ISO quality
system certification.

press brake suplier design the new type electrical system;

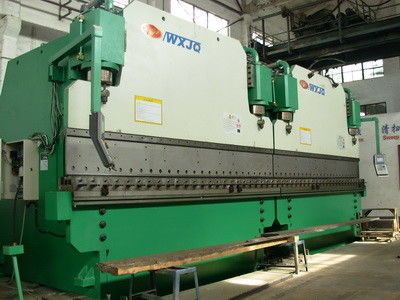

 Automatic 6500KN Large Capacity electrical pole CNC Tandem Press Brake Bending 1

Performance Charateristics for press brake bending


1. advance configuration, high precision and high effciency CNC tandem press brake
2. all major elecetrical and hydraulic elements are assembled with high grade inter-national
brands holistic welding structure treated by annealing.
3. standard configuration with 4+1 axes.
4. equipped with world-calss mechnical crowning system is controlled by CNC system.
5. all Major electrical and hydraulic elements are assembled with high grad international
brands.front support arms provide
6. a set of upper punching and bottom die is provided with the machine.

 here is a catalog of CNC tandem press brake
CNC multi machine tandem hydraulic press brake.pdf


BOSCH-Rexroth hydraulic system for CNC multi tandem press brake machinery:

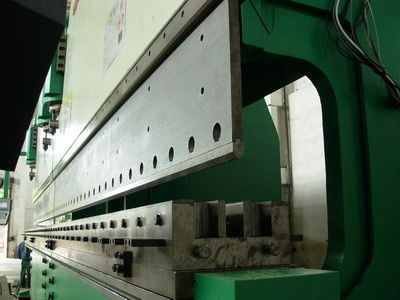

Automatic 6500KN Large Capacity electrical pole CNC Tandem Press Brake Bending 2
