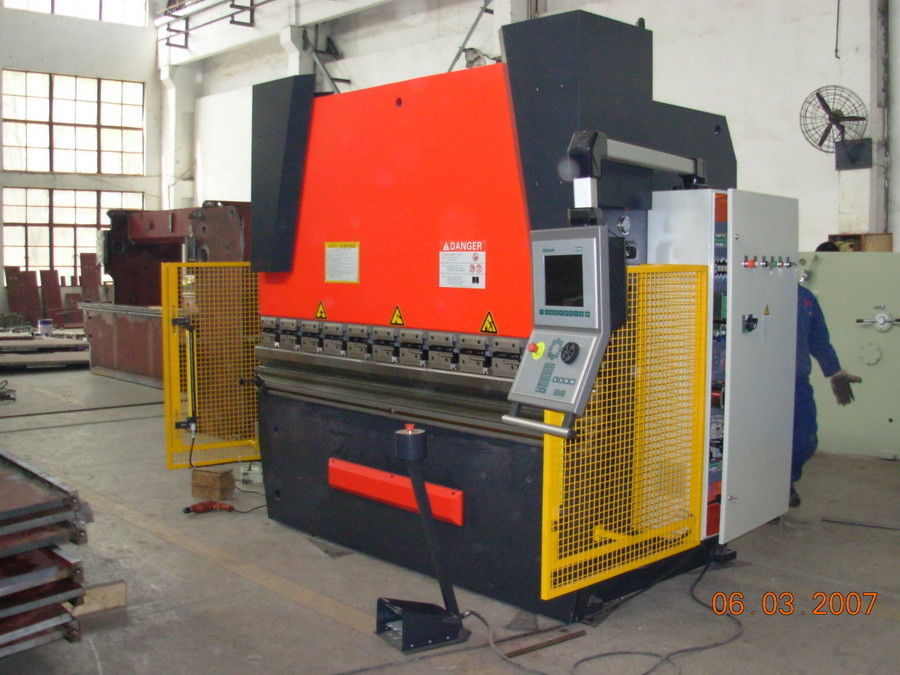

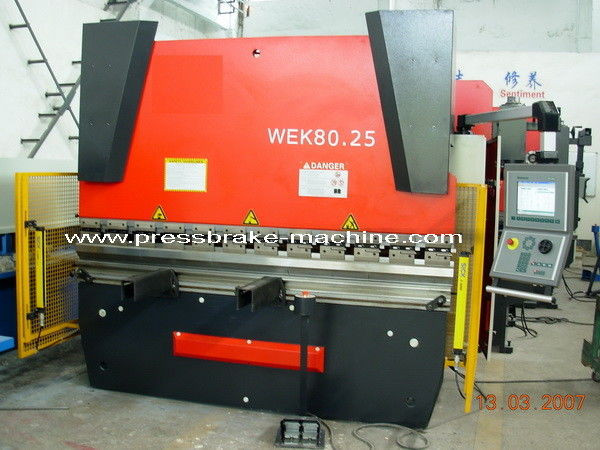

Digital Display 800KN Pressure Bending Sheet Metal Hydraulic Press Brake Machinery

Digital Display 800KN Pressure Bending Sheet Metal Hydraulic Press Brake Machinery

  • High Light

    metal sheet bender machine

    ,

    electric sheet metal brake

  • Name
    CNC Hydraulic Press Brake Machine/sheet Metal Press Brake
  • Feature
    High Percision And Low Cost
  • Presure
    800KN
  • Controller
    DA-65W
  • Safety
    Install Light Curtain And Guard Fence
  • Guarantee Time
    One Year
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    WE67K-80/2500
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: ,20'OTx1
  • Delivery Time
    30 days

Digital Display 800KN Pressure Bending Sheet Metal Hydraulic Press Brake Machinery

Digital Display 800KN Pressure Bending Sheet Metal Hydraulic Press Brake Machinery

hot sell the sheet metal press brake/ plate press brake/ sheet bending machine/shearing machine
CNC servo drive sheet press brake machine Feature

  • This stainless steel press brake machine is designed limiting limit elements analyzing and optimization made of entirely steel structure.Using libration effort to eliminate inner stress, the rigidity of
  • machine is guaranteed.
  • Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis
  • centering taper bearings at both ends of torsion shaft ,and to install loads ,can make
  • the workpiece acquire better precision of bending .
  • The bending angle adjustment by reducer driven by a mechanical block inside the fuel
  • tank, trip counter display value.
  • Installed long-distance pressure-regulator valve on column right side.
  • Wallboard inside with manual pumps...
  • Back gauge adopt grinding plate design ,high regulation accuracy.

hydraulic sheet press brake machine technical Data:

No.

Name

Data

Unit

1

Nominal pressure

800

KN

2

Length of worktable

2500

Mm

·3

Stroke of Ram

200

Mm

4

Max. Open Height

460

Mm

5

Throat Depth

250

Mm

6

Distance between Housing

2650

Mm

7

Axis controlled

Y1,Y2, X,R and V



8

Back gauge’s  stroke

600

Mm

9

Overall Dimensions  (LxWxH)

3100x2100x2550

Mm



10

Downward speed

110

Mm/s

Working  speed

9

Mm/s

Returning  speed

115

Mm/s

11

Power of Motor

7.5

KW

12

Weight

6200

kg

13

Front support arms

2

piece


electroic diapaly hydraulic bending machineDescribe

  • 4- axis Delem DA65W programming mode CNC control
  • Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and
  • constant monitoring by CNC system to +/- 0.01mm accuracy
  • High precision linear scales for measurement of stroke depth mounted on side frames
  • rather than top beam to prevent any distortion in accuracy as beam comes under load
  • CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors
  • Two micrometric backgauge finger-stops with lateral adjustment
  • Steel mono-block construction
  • Polished chrome plated and ground cylinders
  • Long stroke and large open height dimensions
  • High approach and return speeds for production bending
  • Euro style quick release top tool holders with intermediaries including wedges
  • for crowning
  • 88 degree sectionalised goose neck top tool
  • 4 way sectionalised multi vee bottom tool
  • Double footswitch control and pendant type control arm.

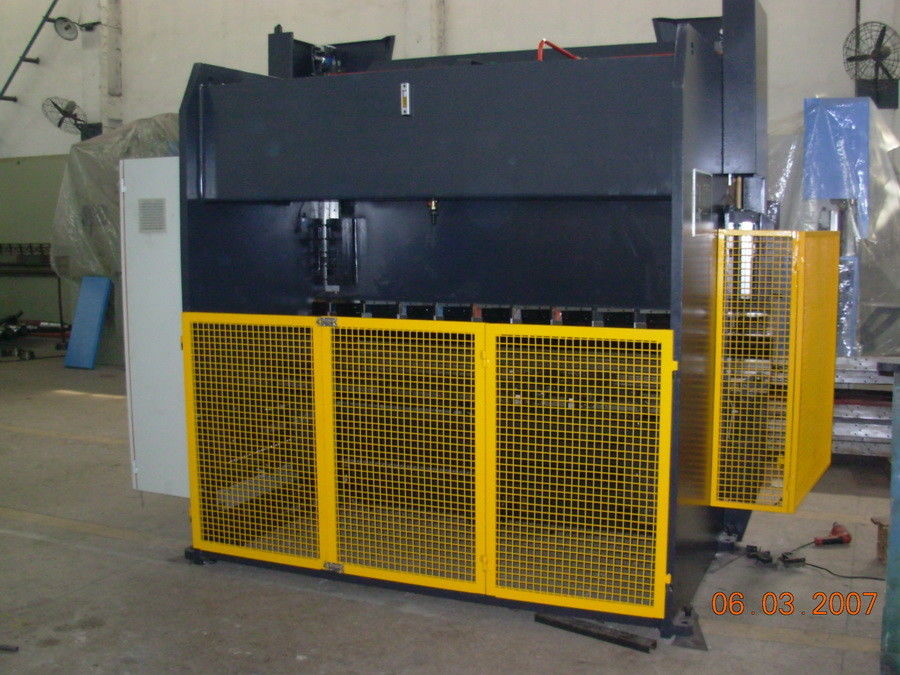

  • Electrically interlocked side guards
  • Electrically interlocked read access door
  • 2 sliding front support arms with linear guide rails for lateral adjustment and hand
  • wheel for height adjustment, 1000mm long from centre of bottom tool vee.
  • Side guard is standard meeting CE regulations.

Major Elements
1. CE Conformity including Light guards
2. Beam Synchronization via torsion bar and dead stopper block on the cylinder
3. Angle Programming DA-65W system
4. Y1,Y2,X,R and V axis as standard, auto indexing of axis at start-up
5. Uropean (System) Top and Bottom Tool Clamping
6. Hardened Gooseneck Top Tool and multi V-die Bottom Tool
7. motorized driven back gauge on ball screws (=X-axis)
8. Crowning Table / Top clamping with anti deflection wedges
8. Side and rear safety guards and safety interlock switches
Optional equipment
1. Control of additional axis like R1, R2, Z1 and Z2
2. Delem 52, 56, 66T and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system
Enclosed Accessory
Front arm support, 2 pieces
Anchor bolt, 4 pieces
Nut, some pieces
Washer, some pieces
Oil gun, 1 piece
Foot pedal 1 piece
Upper Punching And Bottom Die
Standard upper punching, it can section to 500mm length or customized.
The degree of the punching is 86 degree and the hardness of edge is HRC 40-45
use the fast clamping with crowned defection to hold the punching.
Multi Vee bottom die to bending different thickness sheet.
The bottom die is HB190-260 after heat treatment.
CNC touch screen hydraulic press machine
