Foot Sheet Metal Shearing Machine 6mm Plate Shear CE Certificate

Foot Sheet Metal Shearing Machine 6mm Plate Shear CE Certificate



supply hydraulic shearing mahine/guillotine shear/press brake machine/cutting machine/bending machine



Specifications:

All-welded stall frame, first generation machine. Designed and constructed to provide

high-speed shearing of blanks with clean.

Model: QC12Y-6x6000

Max. cutting thicness:4mm. Max. cutting width: 6000mm

Electrical system with CE certificate(Simens, Germany)

Motor with CE (Simens, Germany)

Hydraulic system with CE ( Autos, Italy)



Max. thickness of plate	6mm
Max. width of plate	6000mm
Workbench thickness	60mm
Wallboard thickness	50mm
Anti-strength of plate	450N/mm2
Shear angle	1°30′
Back gauge range	20-800mm
Stroke times	7 times/min
Throat depth	100mm
Blade length	6000mm
Main motor	15KW
Oil pump	16MCY14-1B
Dimension(LxWxH)	6800×2300×2360 (mm)



Feature:

the cutting machine is very popular in metalworking market for cutting metal sheets

Various model of cutting 4-40mm thickness and 1000-9000mm length.

Steel welded construction, vibrating aging function

Shearing gap can be adjusted stepless at will and can do sectional cut

Motorized back gauge and cutting number can digital readout

Power break protection device to guarantee safety during maintenance

Debug and goodafter-sales service



Option:

1. Digital readout: E21,DAC-310 system customized
2. Hydraulic system: Omega and Bosch
3. Pump: Gear pump or according to customer need
4. Electrics: Germany simens or schnider
5. Seal: DZ or NOK or VALQUA
6. Straight-line guide: HIWIN or ABBA
7. light curtaint: Germany brand
8. Foot pedal: Karcon or cus
9. Punch and Die: Shanghai eryeC
10. CNC system: DAC310,DAC360



Packing And Shipping:



1. the machien adopt iron pallet with plastic cover to pack after the machine is

running and testing for 48 hours.

2. Before loading, stable package, professional and skilled loader reduce

damage of product during transport



Shipping Documents:



• Operation Manual(hydraulic diagram,electro diagram)
• Foundation plans
• foundation bolts
• footswitch
• Oring parts
• Quality Certification
• Packing list
• Colors: According to Customer's requirements

After Sales Service:



1. Our guarantee time is 5 years from B/L date.  If any component is damaged

during guarantee time, we can send the component to the customer

by DHL, TNT freely.

2. Our factory can send our engineer to the customer’s factory install,

commission and training freely. The customer provide the double trip tickets,

food and accommodation for our engineer.

The customer also can send the engineer to our factory to learn the operation

and maintains freely.

3. Our factory provide the service for the customer forever, if the customer need

operation help, can contact us by MSN, Skype, Email and Telephone at any time,

we provide 24 hours on-line service.



More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039



dwonload brochure here

hydraulic shearing machine.pdf

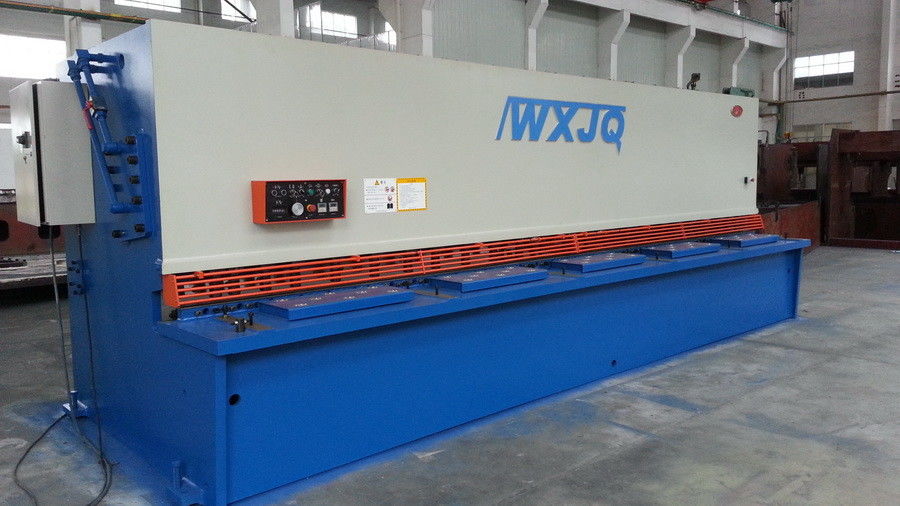

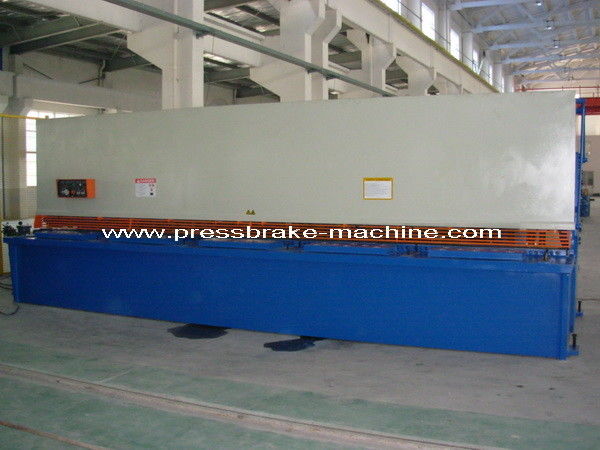

Machine picture:
