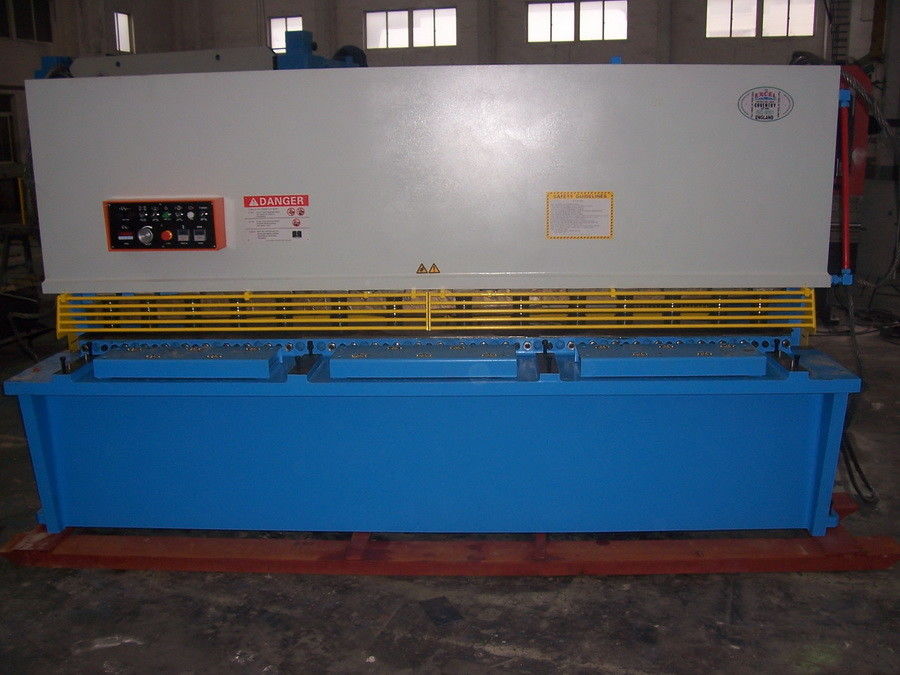

Motorized Hydraulic Metal Sheet Shearing Machine , Guillotine Shear Cutter

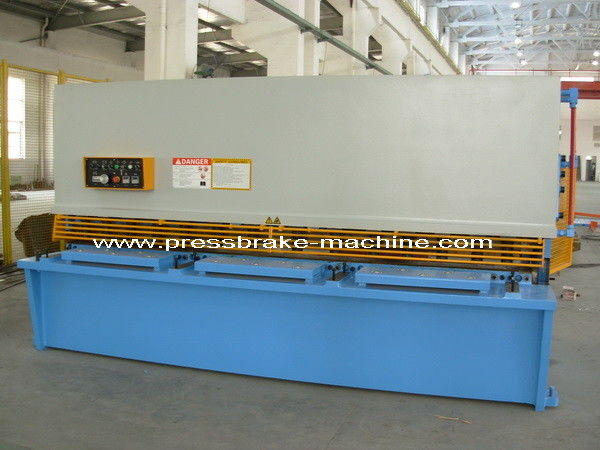

Motorized Hydraulic Metal Sheet Shearing Machine , Guillotine Shear Cutter



hot sell hydraulic shearing mahine/guillotine shear/press brake machine/cutting machine/bedning machine





Features:

• Main electric parts: France Schneider
• Limited switch,button:France schneider
• Lower noise,gear-wheel pump:shanghai chengjie co.
• Hydraulic system: China famous brand
• Casting connector:Germany js co.
• Material of blades:6CrW2Si
• Sealing rings: japan NOK.
• Electric box:power off when open the door
• Steel pallets, two soft packages
• Side front arms with scale and stopper
• Front guard fence and rea fence to protection hand and body
• Foot switch with emergency switch



More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039





Performance:

The frame is entirely welded with steel plates, vibration to eliminate stress.

With high strength and good rigidity.
Hydraulic drive, return of knife beam is smooth and prompt by accumulator

or nitrogen cylinder. With easy operation, reliable performance and nice

appearance.
There is indicator for adjusting the blade clearance, easily operation.
There are safety fences in the working area to ensure the personal safety



Introduction:



1. Sheet plate welded structure is adopted, with hydraulic transmission and

accumulator return, typical of an easy operation, reliable performance,

and nice appearance.

2. Indication by indicator is provided for adjustment of blade clearance, for

a handy and prompt adjustment.

3. Alignment device with lighting and control device for shearing stoke bar

and to reduce frictional resistance.

4. Rolling material support ball is provided, to minimize fish tail with sheet bar

and to reduce frictional resistance.

5. The rear stopper is fitted with electric adjustment and manual adjustment

devices, and digital device is available for display if size of stopper and

times of shearing

6. The rear stopper is fitted with coder and digital display system, So that the

position of rear stopper is displayed more accurately, thus to further enhance

the shearing precision if this machine.



Technical Data:



Hydraulic swing beam shear model	Shear size (mm)	Shear angle	Cutting number (min-1)	Back gauge (mm)	Main motor (KW)	Weight (kg)	Overall dimensions (m)
QC12Y-4X2000	4x2000	1°30	≥18	20-600	7.5	4000	2.65x1.61x1.65
QC12Y-4X2500	4x2500	1°30	≥18	20-600	7.5	5200	3.14x1.61x1.65
QC12Y-6X2500	6x2500	1°30	≥18	20-600	7.5	5200	3.14x1.610x1.65
QC12Y-6X3200	6x3200	1°30	≥14	20-600	7.5	6260	3.84x1.61x1.65
QC12Y-6X4000	6x4000	1°30	≥10	20-600	11	8700	4.64x1.61x1.70
QC12Y-6X6000	6x6000	1°30	≥7	20-800	15	23000	6.80x2.30x2.36
QC12Y-8X2500	8x2500	1°30	≥14	20-600	11	5300	3.14x1.61x1.65
QC12Y-8X3200	8x3200	1°30	≥10	20-600	11	6300	3.84x1.61x1.65
QC12Y-8X4000	8x4000	1°30	≥8	20-600	11	9650	4.68x1705x1.70
QC12Y-8X5000	8x5000	1°30	≥7	20-750	15	21000	5.79x2.252x2.31
QC12Y-10X2500	10x2500	2°	≥10	20-600	15	9150	4..05x1.69x1.85
QC12Y-10X3200	10x3200	1°48	≥8	20-600	15	9150	4.05x1.69x1.85
QC12Y-10X4000	10x4000	2°	≥10	20-800	18.5	14500	4.765x2.20x2.10
QC12Y-12X2500	12x2500	2°	≥10	20-600	15	7380	3.35x1.69x1.85
QC12Y-12X3200	12x3200	1°30	≥8	20-800	18.5	12500	4.00x2.05x2.005



Components List:



No.	Item	QTY	Remarks
1	mechanical counter	1 set	China
2	blade gap clean	1 set	China
4	Hydraulics	1 set	Atos Itly
5	Ball Screw	2 pcs	HIWIN, Taiwan
6	Linear Way	2 pcs	HIWIN, Taiwan
7	Hydraulic Fittings	1 set	EMB,USA
8	Hydraulic Seals	1 set	Japan NOK
9	hydraulic pump	1 pcs	China
10	Electric Components	1 set	Schneider



Enclosed Accessory:

• Front arm support, 2 pieces
• foot switch
• keys for button and electrical cabinet
• Anchor bolt, 4 pieces
• Nut, some pieces
• Washer, some pieces
• Oil gun, 1 piece



Packaging & Delivery



Packaging Details:	Protective Film Package or iron pallet with plastic cover
Delivery Detail:	35 working days after signed the contract
