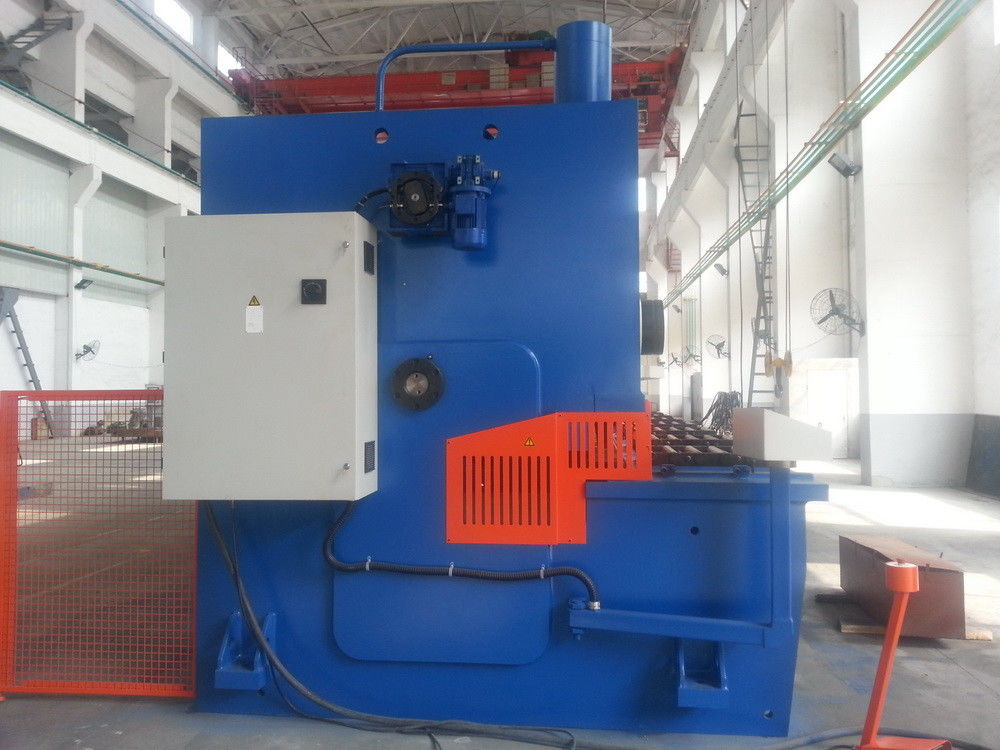

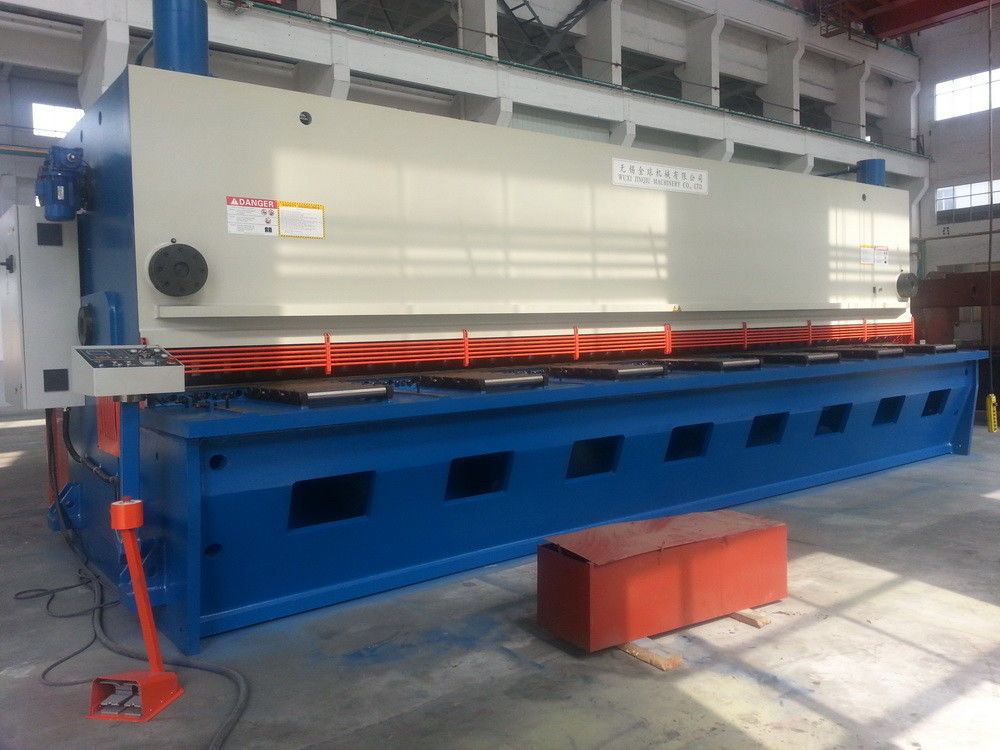

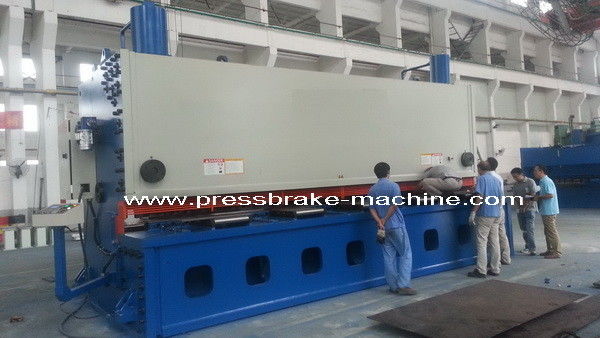

Steel Hydraulic Guillotine Shears Sheet Metal 3 Times/Min Cutter

Steel Hydraulic Guillotine Shears Sheet Metal 3 Times/Min Cutter

  • High Light

    sheet metal guillotine shear

    ,

    guillotine metal cutter

  • Produce Place
    China
  • Name
    Sheet Metal Cutting Machine/hydraulic Guillotien Shear
  • Max. Cutting Thickness
    30mm Thickness Sheet
  • Weight
    72000kg
  • Structure
    Frame Link Bbby Bolte Screw
  • Cutting Speed
    3 Times/Min
  • Place of Origin
    WUXI
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    QC11K-30X6000
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: 40'HQx1,40'FTx1
  • Delivery Time
    30 days
  • Payment Terms
    L/C or , T/T
  • Supply Ability
    30 serts one month

Steel Hydraulic Guillotine Shears Sheet Metal 3 Times/Min Cutter

Steel Hydraulic Guillotine Shears Sheet Metal 3 Times/Min Cutter



importe hydraulic guillotine shear, hydraulic shearing machine,hydraulic cutting machine, sheet press brake machine, CNC press brake,tandem press brake, bending machine



16mm sheet guillotine shear Performance

  • the hydraulic shearing machine with steel sheet welded structure,hydraulic drive system,accumulator back stroke,it has characters of convenient operation,reliable performance,and beautiful appearance.
  • the sheet shear machine with clearance between blades has display plate for swift and stepless adjustment
  • with light-alignment device ,and be capable of stepless adjustment of stroke length of blade rack
  • adopt barrier protection arrangement for personnel safety
  • plate shear's back gauge adopt E21or E200 digital control system ,with characters of low noise and high precision

Standard Configuration of hydraulic shearing machine:


Blade material 6CrW2Si
Seals Japanese NOK
Electrical parts Schneider
Hydraulic Valve Rexroth or ATOUS
Gear pump Shanghai Hangfa
Control system touch screen DTC-660 or E21 system
inverter LG  Korea
Control axes Back gauge X, and blade gap
Oil pipe connecting EMB America


 6000mm length shearing machine Parameter



1 Type NC Hydraulic Guillotines type
2 Cutting length 6000 mm
3 Cutting thickness 30 mm (mild steel at 450 Mpa)
4 Shear angle 0.5~3.5°adjustable
5 Number of stroke per minute 7
6 Throat depth 100 mm
7 Stroke back gauge 20-1000mm
8 Main motor 30kw
9 NC control system Type:DTC-660 touch screen, made in China, control Axis: X back gauge system The back gauge is with ball screw.
10 Main Electric Elements Schneider or Siemens
11 Seal in the cylinders NOK, made in Japan
12 Hydraulic pump Nachi, made in Japan
13 Main hydraulic components Rexroth Germany
14 Net weight 72000 kg
15 overall size (mm) 7515x2965x3740
17 Packing: Wooden case container:40’FTX1,40'HQx1
20 Delivery date 30 days after receive the down payment.











































 Feature

  • The guillotine shear machine is second enhanced shear machine and widely
  • used in all plate metal solution industry.
  • Weld :The machine body is all welded connected through good quality steel plate.
  • The process has gone through the vibration and aging treatment to eliminate
  • nternal stress with good rigidity and high stability.
  • Machine is composed by front-feeding platform, working table, machine front body,
  • side electronic-box, Hydraulic system including gear pump and hydraulic valve,
  • Motor, Backgauge, Nitrogen pullback cylinder, and control or display nc/cnc system
  • and cutted plate lift declined platform,cylinder,hydraulic oil tank, pipe connectors
  • and high-pressure pipes

Quality Guarantee



  • Since press brake machine reached the agreed destination, its main parts will be
  • guaranteedwithin one year or 1000 hours (subject to the earlier mature term).
  • We take charge of all troubles caused by plate rolling machine's fault and repair
  • according to the regulation
  • stipulated by original plants. Factors not accordance with the regulation of original
  • plantssuch as daily consumed components, wrong operating, lack of maintenance
  • are not included in the quality guarantee.
