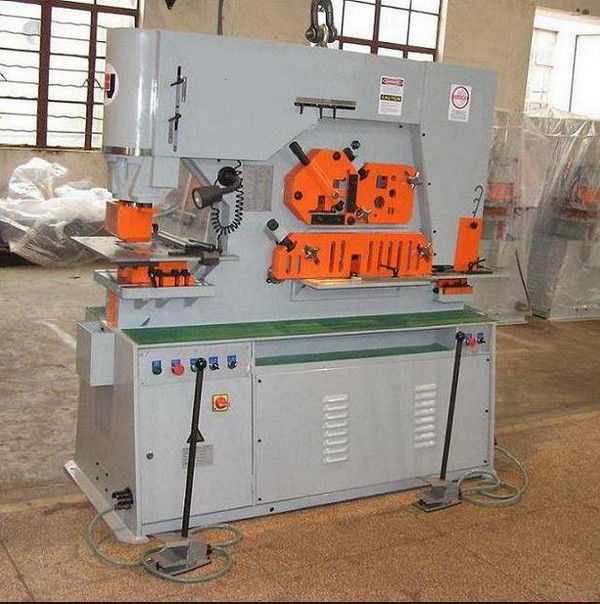

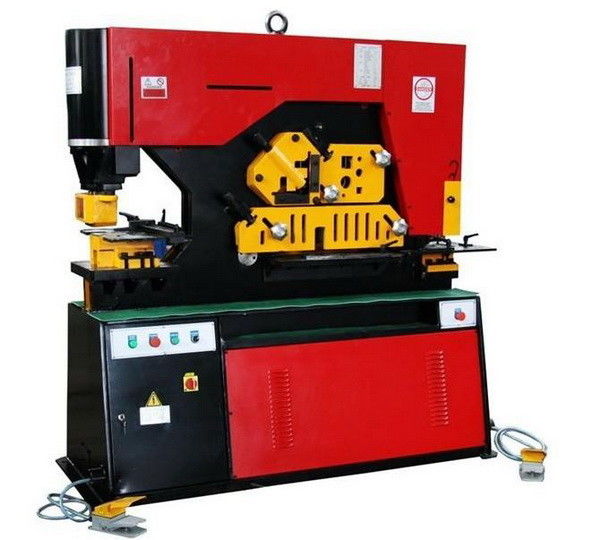

High Efficiency Metal Iron Worker Hydraulic Ironworkers With Double Cylinder

High Efficiency Metal Iron Worker Hydraulic Ironworkers With Double Cylinder

Performance & Features:

Flat bar cutting, profile cutting, punching hole and notching work can be performed on
the machine within the rated specification, with extra equipment, the machine is able to
cut, punch and bend in special shape.
The machine adopted hydraulic driving system and has a perfect structure, with light
weight and low noise, stable performance and overload protecting device.

Main Using:

The machine is mainly used for cutting flat bar, profile, punching hole and notching.
It can be widely used in Shipyard, Electric, Bridge, Auto-mobile, Hoisting & Transportation,
Metal construction and other machinery factories etc.

Machine Function:

Punching:
Full range of universal punches and dies are available.unique style allows for large
angle iron punching and large channel
punching.Large viewing window on stripper swing away design for ease of operation.
large two piece gauging table
with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid
replacement of change.

Shearing:
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down
device for round/square bar,
channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability
to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds.Diamond
shaped blade for quality cuts that is minimal
material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.
Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower
blade has four usable edges.There is screw allow for gap adjust no shim needed.

Notching:
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and
three gauging stops for precise positioning. The notching section of this hydraulic ironworker
is perfect for notching out metal plate,
angle iron and much more. The notching station also has an oversized table with material stops.
This section of the machine can also be outfitted with the optional vee notcher.

Bending:
Also bend the plate below 500mm. All the components of Machine are of the highest quality
in their safty, function, capability and maintenance





Parameter:



Service:

1. Free installation,trial start and adjustment, training. But the machine quotation does
not include the charges of our engineers in the buyer’s country if you want, and the buyer
must take charge of all the expenditure including airplane tickets of our engineers when
in the buyer’s country to do the service!
2. Warranty period is 1 years. During the warranty period we shall reply to the call or Fax
from the user for the machine faults (expect for faults caused by no abiding by the relevant
operation regulations, or by force injury) within 24 hours.
