Metal Bending Brake CNC Hydraulic Mechanical Press Brake For Metal Sheet

Metal Bending Brake CNC Hydraulic Press Brake Machine Tool For Bending Metal Sheet




supply metal sheet CNC hydraulic press brake machine/ press brake tooling



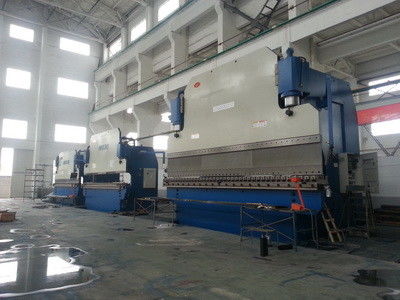

500T bending machine Introduction

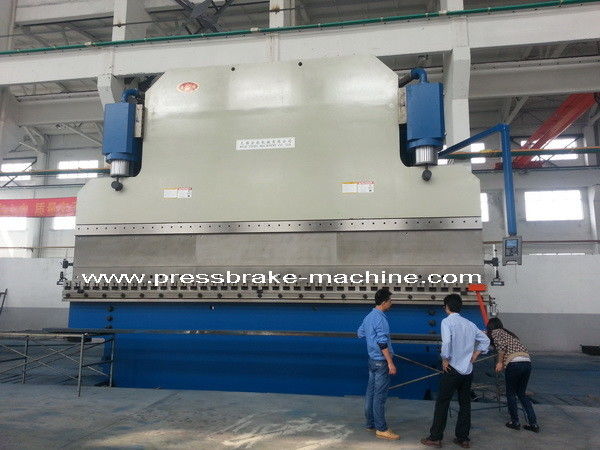

CNC hydraulic Press Brake machine 450T/6000 is a machine tool to bend steel and plate

material.

With models varying in capacity from 56 - 247 tons (US), these press brake series can handle

a full range of material thicknesses in bend lengths from 55 to 169.3 inches. Equipped with

a newly-developed AMNC 3i (intelligent, interactive, integrated) control, the HG series

provides high-speed and high-accuracy with unprecedented ease of use. A 19" multi-touch

LCD panelensures simplified operation. The user-friendly screen is designed for intuitive

operation (similar to a smartphone) allowing for fast and efficient entry even if an operator lacks

experience. Enhanced database network features provide better communication between

the CAM program and the AMNC 3i — resulting in less manual interaction and faster processing.

Additional features of the new HG series include:

Bend Indicator technology ensures high-speed and high-precision.

AMTS tooling provides the ideal solution for multi-stage bending.

Independent L-Axis (L-Shift) provides the capability to bend a wide variety of part shapes.

Standard emergency safety features such as an emergency shut-off button on the controller

panel, an interlock (OFF mode), stopped axis movement when guard is opened and a laser

guard device.

All press brake machines carry a full 1 year parts and labor warranty. Our color graphic CNC

press brakes can tackle projects that require precision, speed and bednign depth.



CNC Press Brake description:



Stronger, faster and deeper bends

The press brake machine is perfect for complicated, sensitive, single or multiple bendings at

high speed. This machine is among the highest rated machines for helping to increase

productivity and lower costs with a user-friendly CNC controller and low-cost hydraulic

maintenance. It allows you to have more production capacity and eliminates wasted time

on production.

Combination of speed and power

High quality and repetitive bending is obtained by using synchronized cylinders and valves

Automatic utilization of all axes on startup

These machines are designed using SOLID WORKS 3D programming and made with enhanced

ST44-1 quality steel using the latest technology

Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm (0.0004”)

Well-known top and bottom tool brands are long lasting and hardened to provide precise bending

Quiet high-pressure pump

Specially designed and produced backgauges help with multi-functional and sensitive bending

in complex parts.

CNC controlled servo drive high precision ball screws.

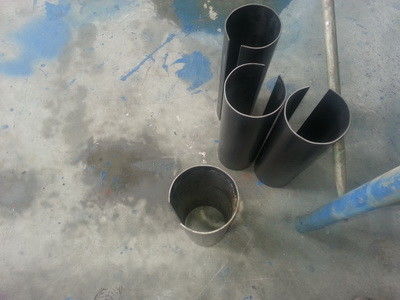

Your best bending solution

You can bend longer and deeper parts with maximum repeatability with CNC press brake machines.

Precise results for long and deep bends

Flexibility with crowning system

Long lasting rigid body is also suitable for heavy duty applications

Easy maintenance

General features

Chrome coated cylinders are machined with 0.001 mm (0.00004”) precision and pistons are

specially hardened.

Clamps are user friendly and machined with high precision.

Front support arms slide along machine length and are easy to adjust.

Compact and well-known brand HOERBIEGER hydraulics are produced according to CE

standards.

Two photocells are on the sides for rear guard.

Fast tool tightening.

Optic linear scales are sensitive up to ± 0.01 mm (0.0004”).

Quick release clamping system. Promecam type top clamps can be easily loaded & unloaded.

Synchronized working cylinders will give you the best bending result.

2 axis ultra strong backgauge system (X=800 mm (31”) and R), with ± 0.01 mm (0.0004”)

repeatability, moves along rails and ball screw, bending length controlled by CNC controller,

foldable backgauge fingers for reverse bending applications.

Multi-functional and highly programmable 2D CYBELEC DNC 600 CNC controller.

SIEMENS electrical system.

Automatic axis referencing when machine is turned on.

Side guard is standard, meeting CE regulations.



hydraulic system of 600T hydraulic press brake machine



Technical Data of CNC pess brake 450T:



Type	Hydraulic CNC electro-hydraulic synchro press brake
Working force	450T
Length of table	6000 mm
distance between frames	4800 mm
Throat depth	4500 mm
Open height	660 mm
Stroke	320 mm
Strokes	8 /min-1
Main motor	30kw
CNC system	Type: DA- 52s Delem  Co., Netherlands Control Axis:Y1,Y2,X,R and V  (crowned compensation)
Tool	With 1 punching and 1 bottom die
Main Electric Elements in cabinet	Schneider or Siemens
Seal in the cylinders	NOK, Japan
Gross weight	36500 kg
Overall sizes(mm) LxWxH	6150x 3280x5300
Packing:	With plastic cover
Delivery date	30days after sing the contract

























Standard configulation of CNC press machine:



1	Front support arms adjustable for height & spacing
2	Top and bottom tools are surface hardened
3	Promecam quick clamping system
4	DELEM da-52S controller with 2D software
5	CNC controlled 600mm (24”) back gauge
6	500 mm (19.6”) throat depth
7	2-piece back gauge fingers
8	Scales in metric
9	Foot pedal is suitable for single and multiple bending
10	Covers for cylinders and top beam

 the throat 500mm of CNC press brake tooling

Optional configuration from press brake manufacturer:



1	Special stroke and throat depth
2	Special back gauge fingers
3	Hydraulic oil heating and cooling
4	Motorized crowning system
5	Optional top and bottom tools in different length
6	Custom made table width and bottom tool V openings
7	Special tools for box and pole bending
8	Laser front support options
9	WILA top clamping and bottom tool holders
10	Rol 1 and Rol 5 quick promecam release
11	U type special bottom tools for bending thick materials
12	Additional front support arms
13	AP3/AP4 front sheet support arms



download brochure here

CNC hydraulic press brake machine.pdf

hydraulic crowning compenstion for CNC hydraulic press brake nachine
