800T CNC Tandem Press Brake Machine 7M Long Tooling Automatic Press Brake

800T CNC Tandem Press Brake Machine 7M Long Tooling Automatic Press Brake

  • High Light

    bending press brake

    ,

    shear press brake

  • Leading Time
    60 Dyas
  • Product Name
    CNC Double Linking Bending Machine/ CNC Sheet Tandem Press Brake Machine
  • Bending Capacity
    Bending 30mmX14000mm Q235 Material
  • Operating
    Automatic Bending
  • Structure
    Steel Frame Type
  • After Service
    Provide Installation And Training Service
  • Place of Origin
    China
  • Brand Name
    JINQIU
  • Certification
    ISO9001
  • Model Number
    2-WE67K-800/7000
  • Minimum Order Quantity
    1set
  • Price
    negotiation
  • Packaging Details
    iron pallet with plastic cover. container: 20'OTx2, 40'HQx3
  • Delivery Time
    According to the requirement of order
  • Payment Terms
    T/T or L/C
  • Supply Ability
    2 sets per month

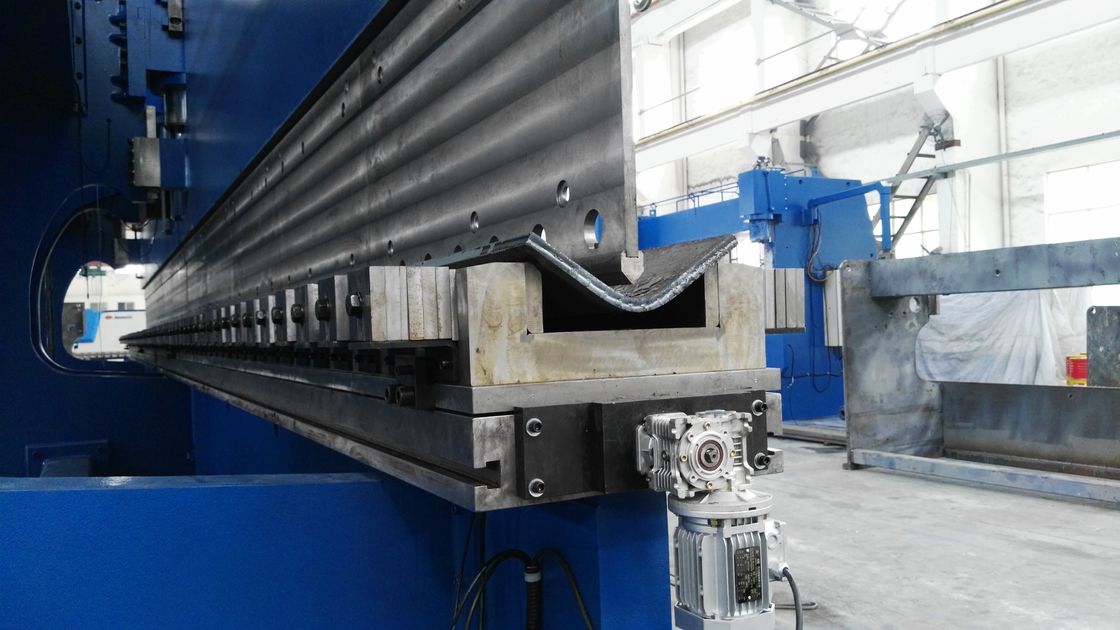

800T CNC Tandem Press Brake Machine 7M Long Tooling Automatic Press Brake

Press Brake Manufacturers 800T CNC Tandem Press Brake Machine 7M Long Tooling



maintenance tandem press brake machine, reform second press brake machine



Features of Machine for press brake hydraulic:
Thishydraulic  bending machine combined with left and right frame, worktable, cylinder, ram and oil tank etc. The

cylinder is positioned in center face of the frame with the reasonable force, high strength and good rigidity,

and easy for transportation, installation and commission. The hydraulic system can prevent the machine

from overload when the thickness of the plate is changed or the wrong selection of the bottom die's

openning width. Otherwise,the machine features a smooth and reliable performance and easy operation.

It has the functions of inching, single cycle and continous operation,The working pressure is constant over

the entire stroke.
A compensation system is installed under the bottem die to ensure a higher bending accuracy,The sheet

can be bent into various shape with different dies prepared by the user.The machine can also punch holes

if equipped with necessary devices.



Delivery of mechnical press brake:
packing: steel pallet with Plastic film or Wooden case Seaworthy packaging for tandem
press brake
container:20'OTx2,40'HQx2.
leading time: 60 days.

Structure forstandard industrial press brake:
The design of the Hydraulic tandem press brake frame is a critical part of any machine
with relation to its ability to produce accurate parts for a long period of time.
Totally European design,streamlined looking of our Hydraulic tandem press brake
Taking off inner-stress of welded parts by tempering,good stability
 Remove rust with sand-blast and coated with anti-rust paint
Frames, assembly surfaces and connection holes are machined after the welding process,
up to 60' in a single pass.

Hydraulic system of servo hydraulic press:
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.
Hydraulic system is from Bosch – Rexroth,Germany.
2. Hydraulic tandem press brake all seals in cylinder is PARKER from USA,the most famous
brandgood quality and high performance
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,
and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).

 CNC control system for sheet bending machine:
The hydraulic press brake amchine use compact DA-66T is a complete CNC solution for conventional as well as synchronised
press brakes for this Hydraulic tandem press brake.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets
as well as in an optional pendulant arm housing.
 Equipped with the Delem user-friendly user interface, the DA-65W provides all main
Hydraulic tandem press brake functionality.
 The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables
quick and easy programming of a product. All common bend parameters are located on one
page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on
board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.


Technical Data of press brke forming Machine



No.

Name

Unit

Parameter

1 Nominal force kN 5000
2 Length of worktable mm 6000
3 Distance between housing mm 4800
4 Throat depth mm 600
5 Ram Stroke mm 320
6 Maximum opening height mm 800



7

Speed of ram stroke Idle running mm/s 90
Pressing mm/s 9
Retract mm/s 90



8

Internal gear pump Model IPH-6B-80-11
Pressure MPa 25
Flow ml/r 80



9

Main motor Model Y2-225M-4B35
Power kW 45
Speed r/min 1480



10



Backgauge motor Model SGMGH-09A
Power kW 0.9
Speed r/min 1500
11 Rated pressure of hydraulic system Mpa 25



12

Overall Dimensions Length mm 6100
Width mm 3645
Height mm 5400
13 Weight of machine kg 48000


Electrical System of press brake bending machine:
Electrical components are imported or from Sino-foreign joint Venture,in accordance with
international standards, reliable safety,long life,good anti-interference ability,a radiation unit
is fitted in electrical cabinet.
Protective fence and the safety interlock to ensure the operation safety. Have a movable
single-hand pedal switch,easy to operate.
The Hydraulic tandem press brake by the European Union CE certification and ISO quality
system certification.

Performance Charateristics of CNC tandem press brake:
 1. advance configuration, high precision and high effciency CNC tandem press brake
 2. all major elecetrical and hydraulic elements are assembled with high grade inter-national
brands holistic welding structure treated by annealing.
3. standard configuration with 4+1 axes.
4. equipped with world-calss mechnical crowning system is controlled by CNC system.
5. all Major electrical and hydraulic elements are assembled with high grad international
brands.front support arms provide
6. a set of upper punching and bottom die is provided with the machine.

 Specification of sheet metal press brake:

model

    2-WE67K-650/7000

    2-WE67K-800/7000

Nominal pressure

          4000KN

         8000KN

length of table

          7000mmx2

        7000x2

distance between housing

          5600mm

        5600mm

Throat depth

          1000mm

        1250mm

Stroke of ram

          320mm

        320mm

Idle speed of ram

          70mm/s

        80mm/s

Working speed of ram

          7.5mm/s

        8mm/s

Return speed of ram

          75mm/s

        70mm/s

Open height

          960mm

       1250mm

Main motor

         30KW x2

       55KW x2

Volume of oil tank

          2100Lx2

        2100L x2

Overall size

      7150X3580X5515mm

     7220x7500x6700

Weight

           6500kgx2

      98700kgx2



More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039


 here is a catalog of CNC tandem press brake
CNC multi machine tandem hydraulic press brake.pdf
