Auto Parts Stretching Forming Machine 80T Hydraulic Motor Bearing Press Machine

Auto Parts Stretching Forming Machine 80T Hydraulic Motor Bearing Press Machine

  • High Light

    800kn hydraulic bearing press machine


    800kn bearing press machine


    80T hydraulic bearing press machine

  • Name
    80T Press Assembly Machine
  • Power Source
    Hydraulic Type
  • Application
    Mtorcycle&motor Bearing Assembly
  • Fuction
    Strengthing, Trimming And Forming
  • Structure
    4 Column Type
  • Packing
    Iorn Pallet With Plastic Cover.
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: 20'GPx1
  • Delivery Time
    30 days

Auto Parts Stretching Forming Machine 80T Hydraulic Motor Bearing Press Machine

Auto Parts Stretching And Forming Machine 800KN bearings Press Assembly Machine


China metal products trimming machine, sheet forming machine, press assembly machine,buy power press machine,

hydraulic press, press machine,bending machine


80T hydraulic press assembly machine Feature:

Application scope of four-column hydraulic press:
This series of hydraulic press is suitable for embossing, forming, shallow drawing, shaping and press assembly

of metal or non-metal parts; press assembly of motor rotor and stator,
press assembly of electronic connectors, electrical parts, glasses, mold clamping and hardware parts Ect;
1. It adopts integrally welded vertical C-shaped structure design, with high body strength and convenient operation;
2. The pressure, stroke, holding time and closing height can be adjusted according to requirements
3. The body structure is compact and sturdy, with low vibration, low noise and less space;
4. This series of equipment uses liquid as a medium to transfer energy, is flexible in control, easy to realize

automation, and operates at a constant speed and stable.
The performance is stable, which can greatly improve the press quality of the product;
5. Force sensors and displays can be installed to monitor the force status of the product;
6. An encoder or grating ruler and a display can be installed to display the displacement of the oil cylinder.


Instruction of four colunm hydralic press machine:

This machine is an 80-ton two-beam and four-column hydraulic press. Compared with a three-beam

and four-column hydraulic press,it has one less measure in terms of appearance. The four-column and

two-plate structure is simple, economical and practical.
It has an independent electrical control system, reliable work, objective action, and maintenance.

Convenience. Adopt button
centralized control, with three operation modes: adjustment, manual and semi-automatic The pressure can

be preset, and it can be used independently and flexibly; a 1000-ton hydraulic press with two beams and four

columns-press-fitting and shaping hydraulic
press is composed of two parts: the host and the control mechanism. The host part includes the body, the main cylinder,

the ejection cylinder and the liquid filling device, etc. The power mechanism is composed of a fuel tank, a high-pressure pump,

a low-pressure control system, an electric motor, and various pressure valves and directional valves. Under the control of the

electric device, the power mechanism realizes energy conversion, adjustment and delivery through pumps, oil cylinders and

various hydraulic valves,and completes various technological actions.

Application range of 80 tons hydraulic press with two beams and four columns:
① Correcting deformation work, correcting the front axle
②Disassembly and assembly of cylindrical and tapered bearings, disassembly and assembly of various tight-fitting parts
③Press-fit piston pins, steering knuckle king pins and various pin sleeves, the worktable adopts a movable core plate structure,
press-fit various tight-fitting parts, press-fit large transmission gears and shafts, press-fit bearings and bearing outer rings
④ Replace the automobile clutch diaphragm spring, replace the reaction rod rubber assembly, replace the clutch disc stop pin
buffer spring, rivet, cut and throw the rear axle basin tooth rivet.
Straightening Press Parameter:

Model Unit Y32-40T Y32-63T Y32-80T Y32-100T Y32-160T
Nominal Pressure KN 400 630 800 1000 1600
Max.Pressure Map 22.2 24.3 25.8 25.8 25.8
Max.Opening Height mm 600 630 720 800 1000
Slide Stroke mm 400 500 500 500 500
Down speed of slide Mm/s 50 50 50 36 25
Return speed of the slide mm 100 90 90 90 65
Throat depth mm 320 350 350 350 325
Dimensions of Die Table F.B. mm 550 550 650 650 650
L.R. mm 700 850 800 800 800
Worktable Height mm 710 710 710 730 750
Work Table Opening Diameter mm 100 140 140 140 200
Hydraulic cylinder diameter mm 150 180 200 220 280
Motor Power Kw 5.5 7.5 7.5 7.5 11


Packing & shipping for press:

PVC film covered hydraulic press

Whole machine fixed in the container with steel rope,very safe

Wooden case or pallet or iron box

If have stock,can provide right now

If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.

Can give destination port best price or cost to the customer factory

Our Service for press machinery:

All machines have been tested by 48 hours before ship out.

All products have 2 year warranty.

Supported 24 hours online service. If any problems happen, our team will do our

best to solve the problems.

If any component is damaged during guarantee time. we can send the component to

the customer by DHL freely

Our Advantage:

MOQ: We can supply you the quantity you want.

OEM: We can produce the goods as per the customer requirement.

Service: We are much more concern for the on time delviery & quality

More information please contact us:


WhatsApp:+86 13961729519

Skype: zouqicheng

QQ: 2308574039

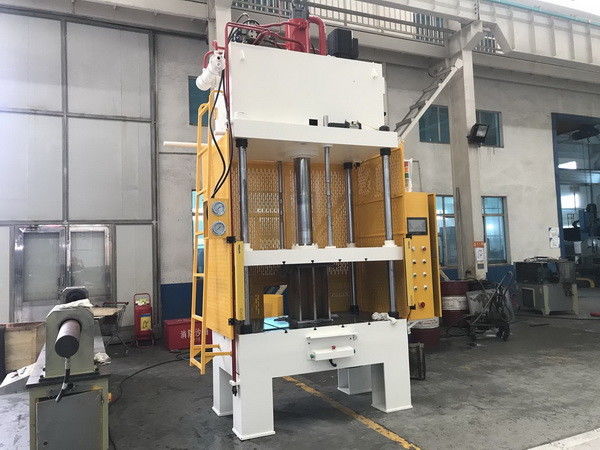

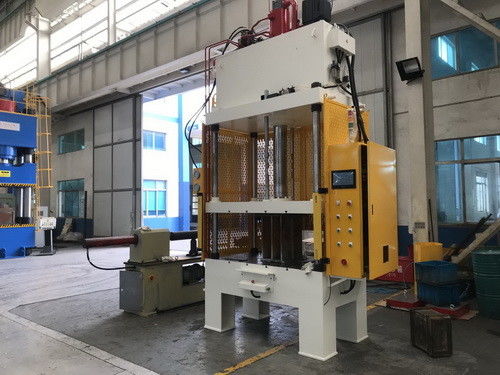

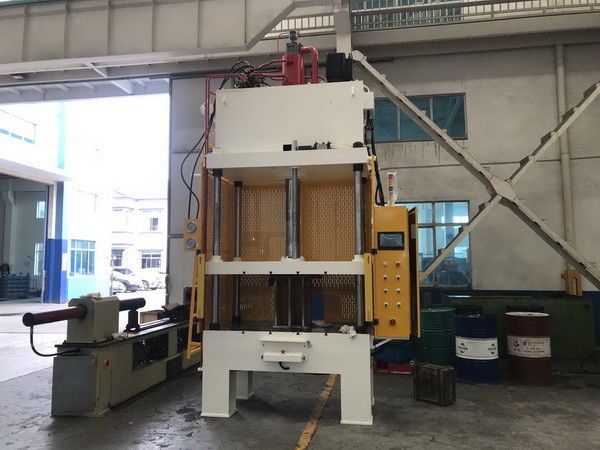

four colum press assembly machine 80T is installed at the customer workshop
