125T Aluminum Die Casting Machine Press Submersible Motor Rotors With 4 Cavity Die

125T Aluminum Die Casting Machine Press Submersible Motor Rotors With 4 Cavity Die

  • Name
    Aluminum Die Casting Machine
  • Advantage
    Easy To Operating And Low Labour Cost
  • Type
    Aluminum Casting
  • Condisiton
    New Machine
  • Producing Standard
    Customized
  • Forging Forming Method
    Mold Forging
  • Place of Origin
    China
  • Brand Name
    WXST
  • Certification
    ISO9001
  • Model Number
    KJY200T
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: 20'GPx1
  • Delivery Time
    30 days

125T Aluminum Die Casting Machine Press Submersible Motor Rotors With 4 Cavity Die

125T Aluminum Die Casting Machine Press Submersible Motor Rotors With 4 Cavity Die



 supply power press machine,hydraulic press, press machine,bending machine



 die casting press machine for motor rotors feature:

This amuminum die cast machine is a three-beam and four-column structure, and the machine has the functions

of feeding& back mold,fast closing mold, slow closing mold, build pressure, slow die casting, fast die casting,

open the mold, take off the low mold, ejector false shaft, ejector rotor and so on.

According to the production process requirements. Equipment electrical operation is equipped with Inch, manual,

semi-automatic three process selection mode, the selection of "inch mode" function is mainly used for the adjustment

of the machine. The manual function is whether each action is normal after adjustment. "Semi-automatic" means that

the die-casting process can be completed only by closing the protective door.

The closing mold using filling liquid fast mold, fast contact with the mold and convert to slow speed, it can more

effectively increase the working efficiency. It will not cause the damage to the mold.

The front and rear safety doors of this machine adopt the pneumatic push & pull device, and the electrical interlock,

it will go to the next step procedure until the protection doors are closed.



The Working principle process for die casting machine with 4 cavity die:
The process program of 4 rotor cavity die one times: manual place the work piece→ feeding mold→

pushing low mold to top→ Give aluminum liquid by hand or by the robot arm for ladle→ pushing low mold to

discharge pressure

→Pneumatic door close→ Quick closing mold→ slow speed close→ die casting→ fast pressing→ Cooling delay→

die casting device slowly retreat→ break the mold→ open the protection door → second pushing low mold to top→

Die-cast cylinder push excess aluminum cake→ Take the excess aluminum cakes manually

→ second pushing low mold to down→ Stop from retreat mold to push false shaft→ ejector false shaft go down→

ejector false shaft return→ Stop from the mold retreat to the ejector rotor position→ ejector rotor rod go up→

manual take away the rotor→ ejector rotor rod return→ pressure shooting device return→ Go to the next work cycle

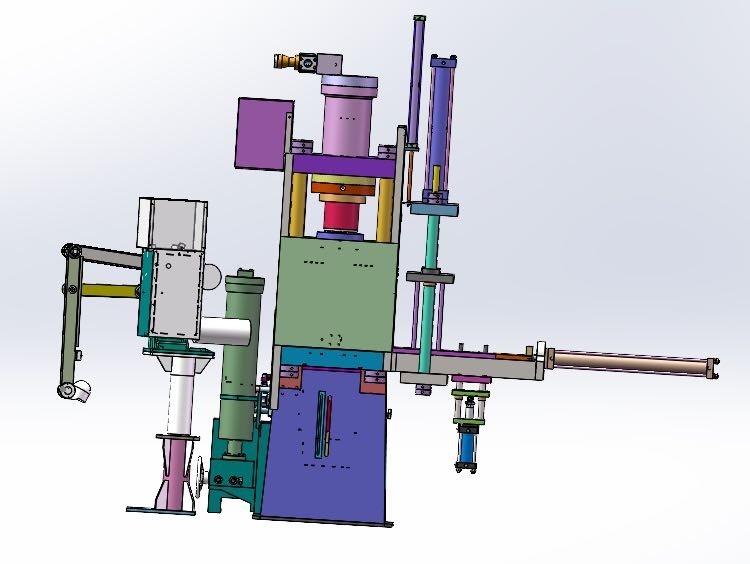

125T Aluminum Die Casting Machine Press Submersible Motor Rotors With 4 Cavity Die 0

motor rotors die cating press machine Technical Data



TECHNICAL FEATURES
1 Type four  column Hydraulic press
2 mold clamping force 1250KN(125T)
3 Pressure of fluid 25.8Mpa
4 The Max. distance between worktable and slipper 1000 mm
7 The Max. stroke of the slipper 500mm
8 press shoot force 1250KN
9 Dimension of worktable 1100X900mm
13 feeding mold force 200KN
14 fedding  mold distance 900mm
15 ejector force 250KN
16 ejector stroke 100mm
17 The diameter of hydraulic cylinder 220mm
18 The diameter of the center of plunger bar 40mm
19 The depth of the center of plunger bar 65mm
20 The screw thread diameter of plunger bar 150mm
21 Motor Power 22KW
22 Overall sizes(mm) LxWxH 1500x3100x3300
23 Weight 7500kg(N.W)
26 Delivery date 30days after receive down payment



Packing & shipping

PVC film covered hydraulic press

Whole machine fixed in the container with steel rope,very safe

Wooden case or pallet or iron box

If have stock,can provide right now

If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.

Can give destination port best price or cost to the customer factory



Guarantee & After Sale Service

Guarantee for 2 year exluding comsumable parts .Extra fee is paid if out of date.

Any damage to the machine caused by improper use will be charged.
when receiving the your money, we will prepare machine for you,it will spend 15-30days,

to get the shipping pictures for you.
24-hour technical support Internet or by Telephone, free instructions and
Problem solving.
Free installation and fully test before sending and free training for operators



finished motor rotors on the die cating press machine

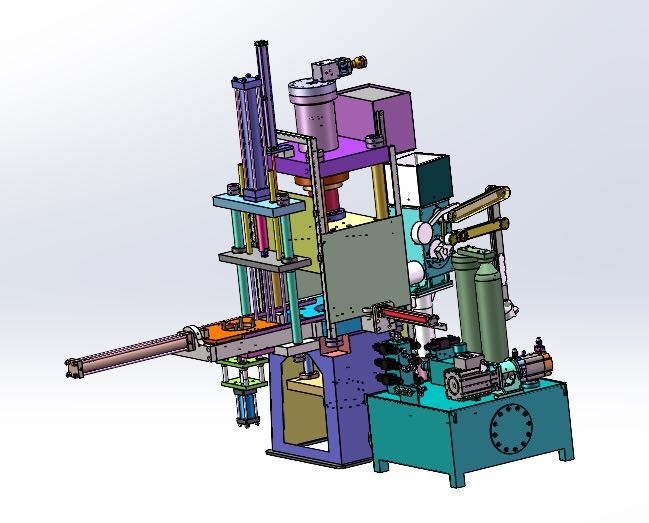

 125T Aluminum Die Casting Machine Press Submersible Motor Rotors With 4 Cavity Die 1

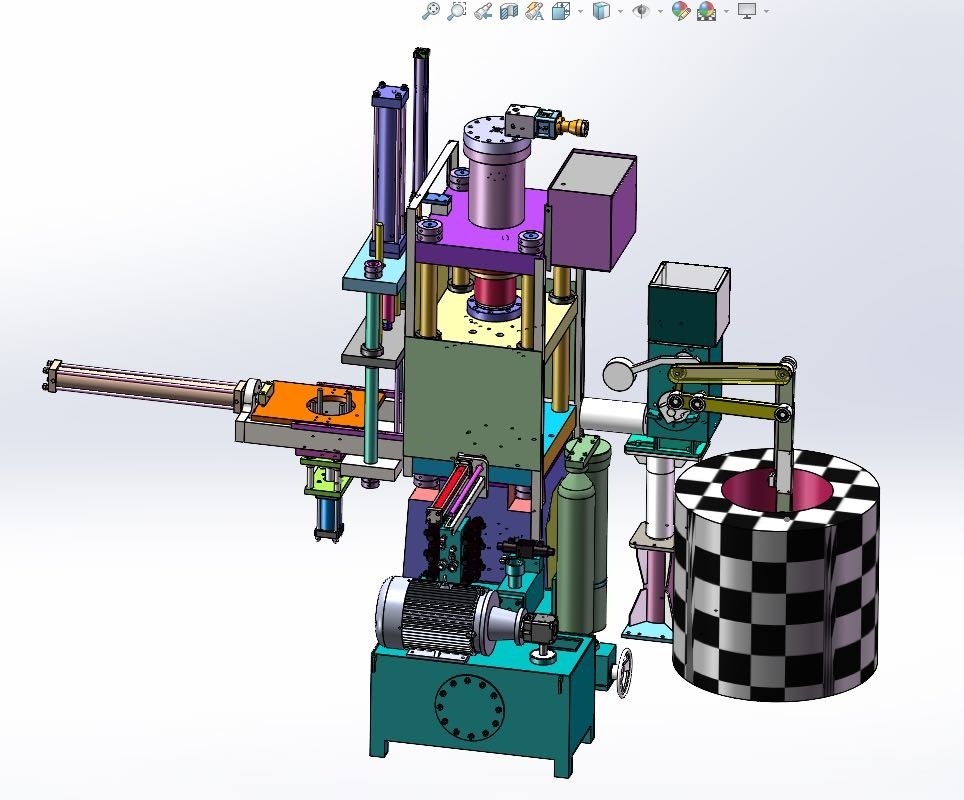

 125T Aluminum Die Casting Machine Press Submersible Motor Rotors With 4 Cavity Die 2
