380V Synchro Servo Steel Plate Bending Machine CNC Hydraulic 160T/4000

380V Synchro Servo Steel Plate Bending Machine CNC Hydraulic 160T/4000

  • High Light

    mechanical press brake

    ,

    hydraulic plate bending machine

  • Name
    CNC Synchro Press Brake
  • Application
    Matel Cabinet
  • Controller
    ESA System
  • Worktable Length
    4000mm Long
  • Material
    Multi Vee Bootm Die
  • Voltage
    380V,220V,415V Or Special Order
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    CE and ISO
  • Model Number
    WE67K-160/4000
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

380V Synchro Servo Steel Plate Bending Machine CNC Hydraulic 160T/4000

380V Synchro Servo Steel Plate Bending Machine CNC Hydraulic 160T/4000

wholeseal CNC hydraulic press brake machine/ plate bending machine

Characteristics:

the Synchro Press Brake use state-of- the-art hydraulics (Bosch-Rexroth or
Hoerbiger) and electronics (Telemecanique, Merlin Gerin Legrand, Siemens) to
ensure accurate control of the bending process. The Press Brake Frame is a robust
welded mono-block steel construction, stress relieved after welding and machined
without repositioning to guarantee machine precision, all-in-all, ensuring minimum
deflection during bending
operation. Pistons are steel forgings, precision ground and micropolished for long
production life. The Synchronised Press Brake is a downstroking twin cylinder
hydraulic press brake (Y1 – Y2 Axis) and includes the following:

More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039


Major Elements:

1. CE Conformity including AKAS Light guards
2. Beam Synchronization via linear scales and proportional valves
3. Delem Angle Programming Control or ESA system
4. Y1 + Y2 + X axis as standard, auto indexing of axis at start-up
5. Uropean (System) Top and Bottom Tool Clamping
6. Hardened Gooseneck Top Tool and 4-V-die Bottom Tool
7. Servo motor driven back gauge on ball screws (=X-axis)
8. Crowning Table / Top clamping with anti deflection wedges
8. Side and rear safety guards and safety interlock switches

Optional equipment:

1. Control of additional axis like X1, X2, R1, R2, Z1 and Z2
2. Delem 65, 66, 69 and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system

Technical Data:

No.

Name

Data

Unit

1

Nominal pressure

1600

KN

2

Length of worktable

4000

Mm

·3

Stroke of Ram

200

Mm

4

Max. Open Height

500

Mm

5

Throat Depth

320

Mm

6

Distance between Housing

3100

Mm

7

Axis controlled

Y1,Y2, X and V



8

Back gauge’s  stroke

600

Mm

9

Overall Dimensions  (LxWxH)

4080x2050x2915

Mm



10

Downward speed

100

Mm/s

Working  speed



10

Mm/s

Returning  speed



90

Mm/s

11

Power of Motor

11

KW

12

Weight

12300

kg

13

Front support arms

2

piece



Enclosed Accessory:


  • Front arm support, 3 pieces
  • Anchor bolt, 4 pieces
  • Nut, some pieces
  • Washer, some pieces
  • Oil gun, 1 piece
  • Foot pedal 1 piece

Upper Punching And Bottom Die:


  • Standard upper punching, it can section to 500mm length or customized.
  • The edge of the punching is HCR 45-50 after heat treatment
  • use the fast clamping with crowned defection to hold the punching.
  • Multi Vee bottom die to bending different thickness sheet.
  • The bottom die is HB190-260 after heat treatment.

download brochure here
CNC hydraulic press brake machine.pdf

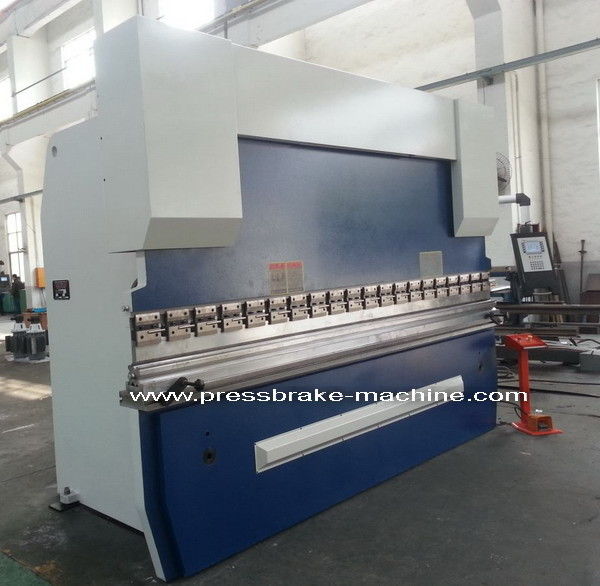

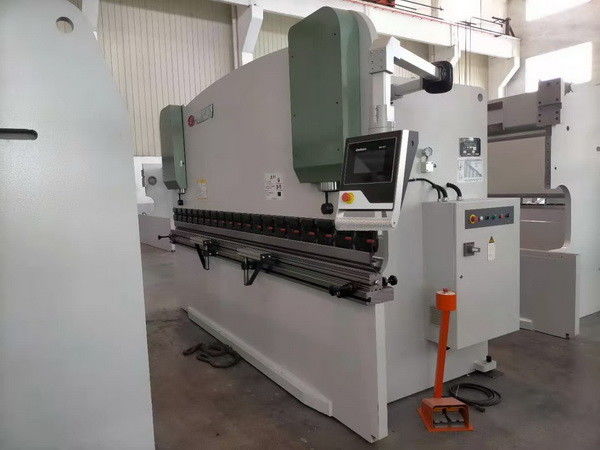

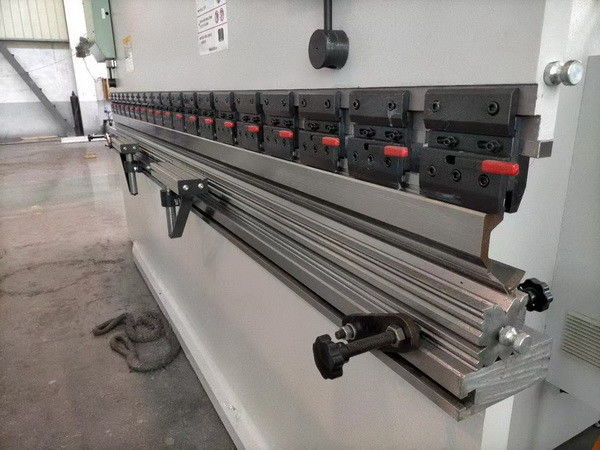

Machine picture:
