Plate Steel CNC Hydraulic Press Brake Bending Machine Metal Sheet Bender

Plate Steel CNC Hydraulic Press Brake Bending Machine Metal Sheet Bender

  • High Light

    hydraulic plate bending machine


    Steel Plate Bending Machine

  • Power
    Hydraulic Type
  • Name
    Hydraulic Sheet Press Brake
  • Control Axis
    Bending Depth, Back Gage And Compensation
  • Structure
    Frame Welded Structure
  • Worktable Size
    3200mmlong And 300 Width
  • Application
    Thin Sheet
  • Place of Origin
  • Brand Name
  • Certification
    CE and ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

Plate Steel CNC Hydraulic Press Brake Bending Machine Metal Sheet Bender

Plate Steel CNC Hydraulic Press Brake Bending Machine Metal Sheet Bender


hot sell CNC hydraulic press brake machine and automatic bending machine


panel & box press brake Features;
1. CNC sheet press brake body adopt Overall welded and processed structure.
2. Closed loop control mode composed of electric-hydraulic servo valve

and measure ruler.
3. Ensure the highest control precision, bending accuracy and repositioning accuracy

are also reach to the highest level.
4. CNC plate press brake machine with Back gauge mechanism can be multi-axes controlled.
5. Integrated hydraulic system decrease the pipe connections, oil leakage, and increase

the stability and overall beautifies.
6. Worktable equipped with hydraulic and mechanical compensation to avoid the deformed

upper beam from affecting the quality of the work piece, it is adjusted automatically by

the CNC controller with convenient and accuracy.
7. CNC controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC, all with



WE67K CNC press brake machine Configulation

No. Parts Name Brand Brand Location
1 Control System DELEM DA52S / DELEM DA66T Holland
2 Servo motor and drive Estun Nanjing China
3 Hydraulic System BOSCH Germany
4 Ball bearing lead screw HIWIN Taiwan
5 Straight-line guide HIWIN Taiwan
6 Connector EMB Germany
7 Seal ring FIETZ/VALQUA Germany
8 Raster Ruler Heidemhain Germany
9 Main electrical elemeents SIEMENS Germany
10 Standard axes Y1,Y2,X and V(V for crowing table)


CNC bending machine Character
1.press brake machine use Steel welded structure, vibrating treatment to remove the inter stress, with high strength

and good rigidity
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization
3. Motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel,

numerical display
4. Using travel limit protection, full machine guarding with safety interlocker
5. Two cylinders controlling beams vertical moving
6. Using mechanical torsion synchronization
7. Using Integration hydraulic system
8. Using standard punches and dies
9. Using hanging arm control panel
10. Using foot pedal with emergency stop

CNC hydraulic press brake Performance

the CNC Synchro press Brake use state-of- the-art hydraulics (Bosch-Rexroth or Hoerbiger)

and electronics (Telemecanique, Merlin Gerin Legrand, Siemens) to ensure accurate control

of the bending process. The Press Brake Frame is a robust welded mono-block steel

construction, stress relieved after welding and machined without repositioning to guarantee

machine precision, all-in-all, ensuring minimum deflection during bending operation. Pistons

are steel forgings,

precision ground and micropolished for long production life. The Synchronised Press Brake is

a downstroking twin cylinder hydraulic pressbrake (Y1 – Y2 Axis)

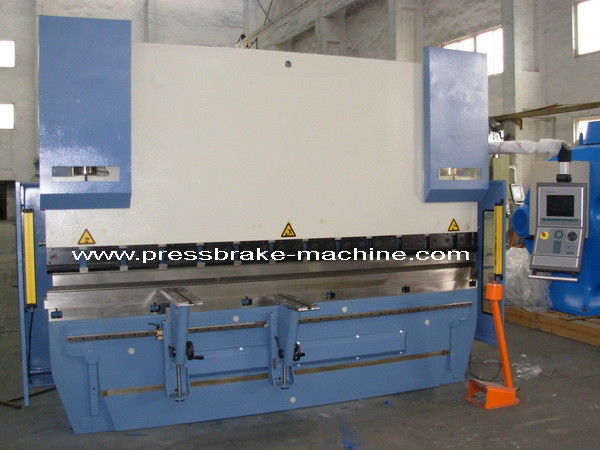

adjustable support unit from CNC hydraulic press brake

Plate Steel CNC Hydraulic Press Brake Bending Machine Metal Sheet Bender 0


Specification for sheet metal CNC press brake machine

Model WC67K-63/2500 WC67K-80/2500 WC67K-80/3200 WC67K-80/4000 WC67K-100/2500 WC67K-100/3200 WC67K-100/4000
Nominal force kN 630 800 800 800 1000 1000 1000
Length of table mm 2500 2500 3200 4000 2500 3200 4000
Distance between uprights mm 2000 1990 2600 3350 1650 2550 3350
Throat depth mm 250 280 280 280 320 320 320
Ram stroke mm 100 100 100 100 130 130 130
Stroke adjustment mm 80 80 80 80 100 100 100
Max.opening height mm 340 360 360 360 390 390 390
Stokes Min-1 ≥10 ≥10 ≥10 ≥10 ≥10 ≥10 ≥10
Main motor capacity kW 5.5 7.5 7.5 7.5 7.5 7.5 7.5
Net weight kg 4600 5300 6400 8300 7300 8200 9400
Outline dimensions(L×W×H mm 3100 1900 2380 3150 1950 2350 3820 1950 2350 4650 1950 2350 3200 1960 2450 3790 1980 2450 4600 1980 2450


China press brake Optional equipment:
1. Control of additional axis like X1, X2, R1, R2, Z1 and Z2
2. Delem 65, 66, 69 and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system


Service from hydraulic sheet metal press brake:
1. Service package Basic: we offer you rapid trouble shooting through telephone

support and costs for on-site missions are reduced. Special: Engineers available to

service machinery overseas for the necessary maintenance. Partner: Our located

dealers or customers who sell or use our machines are fully behind you, they are

our friendly partner and supply good advice to you.
2. Technical Service(After-sale service) Installation and start-up(Available for complex

and big machines or if you have demand) 8.  Digital display system display the

working position of  X, Y; 9. Main operation are by the CNC controllers or display system;

Ball screw and line guide rail as optional choices for guarantee the higher precision;


download brochure here

CNC hydraulic press brake machine.pdf

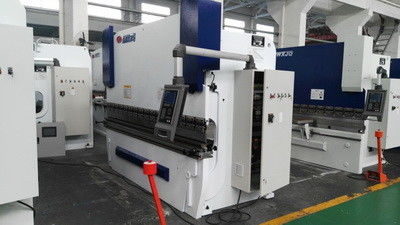

135T press brake machine picture:


Plate Steel CNC Hydraulic Press Brake Bending Machine Metal Sheet Bender 1
