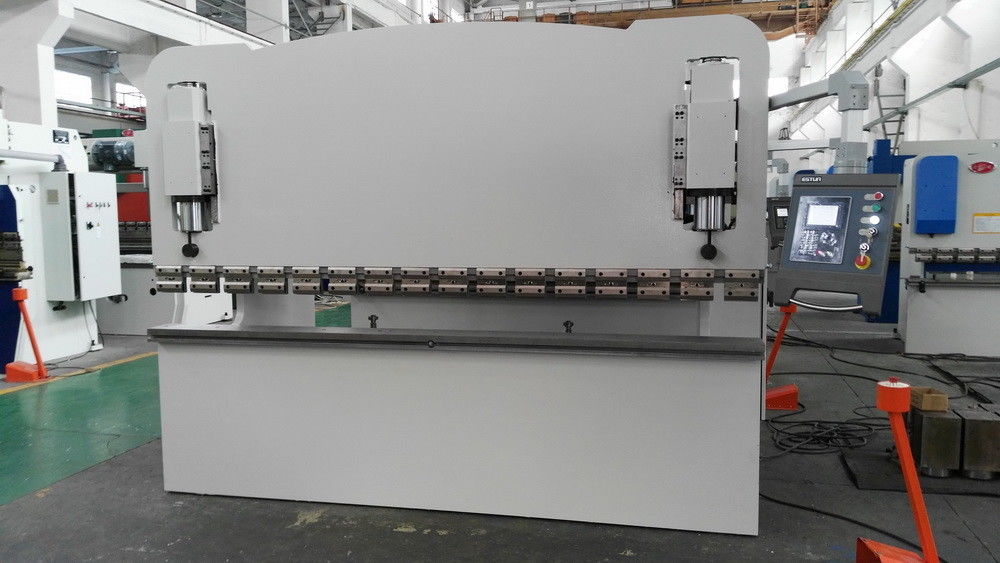

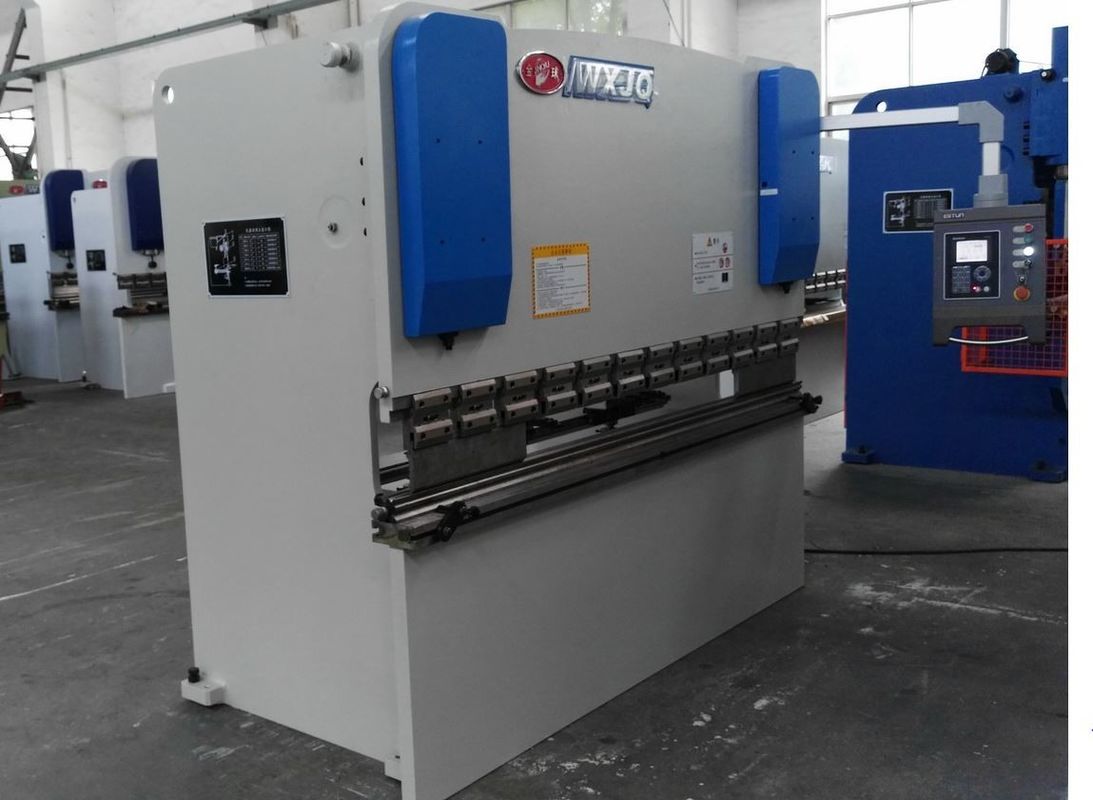

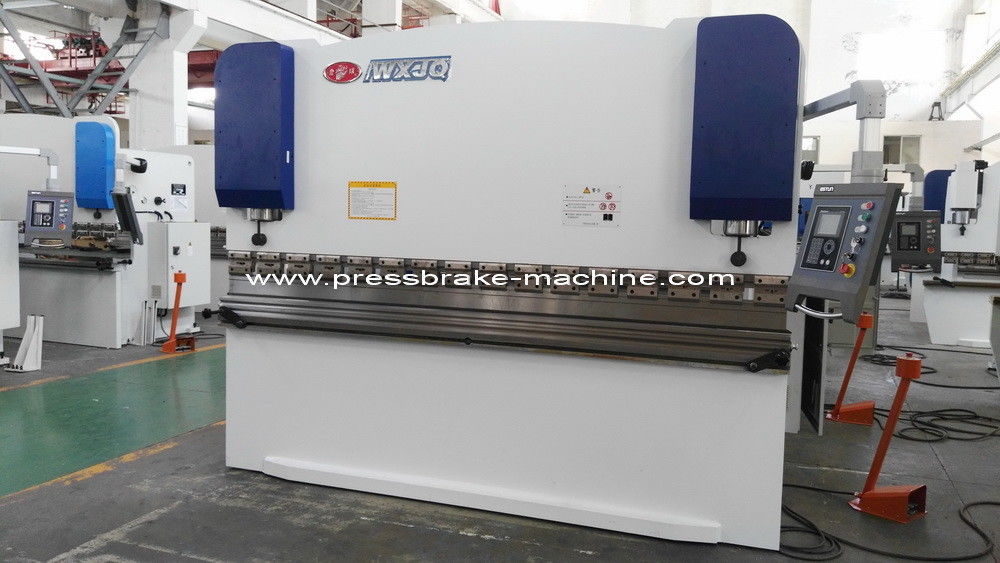

4mm Sheet Metal Manual Press Brake 100T Capacity Electric Sheet Metal Brake

4mm Sheet Metal Manual Press Brake 100T Capacity Electric Sheet Metal Brake

  • High Light

    metal sheet bender machine


    electric sheet metal brake

  • Name
    Metal Bending Brake/sheet Metal Press Brake
  • Payment Item
    T/T Or L/C
  • Capacity
    100 Tons
  • Control System
    DELEM DA-41system
  • Application
    Stainles Steel Cabinet
  • Character
    Fast Bending Speed And Automatic Positioning
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case
  • Delivery Time
    30 days

4mm Sheet Metal Manual Press Brake 100T Capacity Electric Sheet Metal Brake

4mm Sheet Metal Manual Press Brake 100T Capapcity new press brake dies


new products-the sheet metal press brake/ plate press brake/ sheet bending machine

used sheet press brake machine Description

  • Brand New 8 feet Hydraulic Press Brakes for sale - currently in stock
  • Is the safest, and most expensive. They are generally slower and have more of a precise bend.
  • Hydraulic Press Brakes have a better control when inching down and setting up for your bend,
  • they also can return to the top at any time.Hydra-Mechanical Press Brakes
  • Rotary hydraulic cylinder turns the eccentric shaft by means of rigid mechanical linkage to both
  • ends of the ram, distributing power equally over its full length. This basic power principle offers
  • the operational control and safety of the hydraulic principle plus the rigid ram alignment,
  • accuracy and operating speeds of the mechanical press brakes. With a Hydra-Mechanical
  • press brake design the operator is in full command of the job. He can meter out just the right
  • amount of fluid to move the ram the exact distance needed. With a Hydra-mechanical press brake
  • you can easily inch the ram down for scribed line work, and easily locate the stroke bottom for
  • setting up. This gives more accuracy, less operating time, and less training is needed.
  • The Hydra-mechanical advantage allows you to instantly stop or start anywhere in the cycle,
  • and allow reversal of stroke direction at any position. Different from a mechanical press brake
  • that can only return the ram to the top after the cycle is complete

China plate press brake Specifications






1 Nominal force kN 1000
2 Length of worktable mm 3100
3 Distance between housing mm 2560
4 Throat depth mm 320
5 Ram Stroke mm 100
6 Maximum opening height mm 365



Speed of ram stroke Idle running mm/s 60
Pressing mm/s 8
Retract mm/s 40



Internal gear pump Model IPH-6B-80-11
Pressure MPa 25
Flow ml/r 80



Main motor Model Y2-225M-4B35
Power kW 45
Speed r/min 1480




Backgauge motor Model SGMGH-09A
Power kW 0.9
Speed r/min 1500
11 Rated pressure of hydraulic system Mpa 25



Overall Dimensions Length mm 4300
Width mm 1820
Height mm 2495
13 Weight of machine kg 9000


metal sheet press machine Structure

  • CNC press brakes are the latest in manufacturing. They can have multiple axis Backgauges,
  • and you can program them to do different bends. This is the most expensive and the best for
  • production. That should give you a basic rundown on how to purchase a press brake
  • Totally European design,streamlined looking,Frame: consists of right and
  • left wall boards, working table, oil box, slot steel and etc. The stress of the
  • welded parts can be eliminated by vibration. The machine enjoys high accuracy
  • and high strength and can be transported
  • easily
  • Welded structure: the stress of the welded parts can be eliminated by vibration;
  • so this forging press gives high accuracy.
  • High accuracy,high efficiency,simple and convenient operation,good performance,
  • favorable price and best service.

hydraulic sheet bending machine Information

  • All hydraulic press brakes are manufactured to the highest standard, with strict quality control
  • to achieve a long life of minimal maintenance.
  • The brakes range from 44 tons to 880 tons. Two cylinders power all models, and a torsion bar
  • is used to ensure parallelism of the top beam. The two cylinders working to a positive depth stop
  • do stroke control of the bending beam. The top ram returns to the top position after the pressure
  • has been reached. The remote pressure regulator allows the working pressure to be reduced for
  • working with lighter materials. Push buttons and the fine adjustment hand wheel electrically control
  • the setting of the bending beam. The readout enables the operator to recall previously set depth to accurately bend other thickness without waste of production time and materials. These models
  • have an automatic 2-speed operation giving fast approach, slow bending, and fast return. The changeover from fast to slow approach is preset by means of electrical and mechanical control.
  • Machines can be built from 6′ to 20′ in length.

4m length press brake machine Construction

  • Hydraulic top-drive, steadiness and reliability
  • Steel-welded construction, vibration to eliminate stress, with high strength and
  • good rigidity
  • Mechanical stop, steel torsion bar to maintain synchronization, high precision
  • Motorized-adjusting device of back gauge and ram's stroke, fine adjusting by
  • hand wheel, numerical display
  • Travel limit protection, full machine guarding with safety interlocker

Optional equipment:
1. additional control system: E21,DAC-310 system and DATC660
2. screw of bakc gauge adopt ball screw
3. larger throat gap,
4. stainless steel blade H13
5. rear light curtain protection device
6. central motorised lubrication system

7. imported pump and vlave
Packaging & Delivery:
Packaging Details: Plastic-film, wood package or any other packing that customer need.
Delivery Detail: about 30 days after deposit
download brochure here
hydraulic press brake.pdf
