Full Automatic Feeding Shearing Machine 6M Length Cutting Table 16mm Thickness

Full Automatic Feeding Shearing Machine 6 M Length Cutting Table 16mm Thickness



we are producing hydraulic shearing machine,press brake machine,tandem press brake machine,CNC press brake/guillotine shear machine



Product features:
welded steel plate construction, eliminate internal stress by heat treatment, with high strength and good rigity.
Advanced integrated hydraulic system with an excellent reliability.
Rapidly, accurately and conveniently adjusting the blade clearence with the handweel.
The rectangular blades featuring long lifetime with 4 cutting edges
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
European key electrics
Light alignment device eases drawing line for cutting
Standard front support sheet frame
A set of standard blade
QC11Y-12X3200 CNC Guillotine shear parameters:
Max cutting thickness: 6mm;
Working length 3200 mm;
Shearing angle:0.5°~1.5°
Throat depth 80mm;
Strokes:12 times/min;
Control system: ESTUN; SIKO; DELEM; WONDER; MAPER, can made according to

customer requirements
Electrics
Main power 7.5KW;
Back gauge travel :750mm
Main Equipments:
Hydraulic system:First, from USA;
Blades: 6Crw2si;
Pump: Gear pump;
Electrics: Schneider from France;
O-rings: Japanese NOK



optional devices for customers:
1. stainless steel front cover 2. Front 1m protection Pneumatic devices 3. cutting angle

indication lights 4. electic blade gas adjustment set 5. rear protection rail with ABB satety

switch 6. Linear Guides or ball screw 7. Machine body color optional also 8. Sumitomo pump

and siemens motor optional 9. Rear pneumatic unloading device. 10: Blade with Cr12MoV ,

9CrSi
Dimension and Weight: 3895X1950X2240mm.
Guillotine international certificates for oversea market:





Introduction:

our CNC control can automate manual processes such as setting your backgauge position,

stroke length and blade gap, and can store cutting programs that you create, allowing for

exceptional speed and accuracy tailored to your needs. Each program can accept 20 steps,

and 200 programs can be stored at one time. This CNC control can also be operated in a

manual mode if so desired.

the CNC front feeding hydraulic shear equip the automatic feeding table,.

the feeding position is control by the CNC system DAC-360.

the clamping on the front feeding table press by the pneumatic clamp

quality shears main machine

feaading accurately and clamping reliable.

professional CNC system to control feeding device,easy to operate.

the front feeding platorm adopts rolling ball screw to reduce the resistance of the fed

and to avoid scratch the surface of the worktable.

Hydraulic transmission,swing blade holder
Strong and durable integral welded frame
Stable and rapid return stroke of oil cylinder by accumulator
Adjustable (full/shorter)stroke
Hand-wheel adjustment of gap between the upper and lower blades
Computer numerical control system and position coder form a closed ring control system
DAC310 control system ensures great speed,high accuracy and good stability





Advantage:



1. Competitive price: It is can meet your budget and best-selling business very well.

2. OEM Accepted: We can produce any your request design.

3. Good Service: We treat clients as friends.

4. Good Quality: We have strict quality control system. Good reputation in the market.

5. Fast & Delivery: We have big discount from forwarder (Long Contract).



Technical parameter:



model			QC12Y-12X2500 /6000
Main machine	Shear size	mm	12x2500
	Shear angle	Deg.	1.5°
	Cutting number	Min-1	14
	Motor power	KW	7.5
Front feeder	Max. strokes	mm	6000
	Positioning precision	mm	±0.10/300
	Qty. of gripper		7
	Pressure of air supply	Mpa	0.6
Overall dimensions (LXWXH)		mm	5990x3290x1730
Weight		KG	13000





Service:



During the production we arrange the samples lot as per the customer requirement,

then we send the samples photo and samples to the customer to approval.

After the production finish we send the samples to customer to check, after customer

approval we ship the goods to the customer.

After customer received the goods we check and take the necessary follow-up with

the customer in order to solve some small mistakes in next lot.





Quality Guarantee:

Since press brake machine reached the agreed destination, its main parts will be

guaranteedwithin one year or 1000 hours (subject to the earlier mature term).

We take charge of all troubles caused by plate rolling machine's fault and repair

according to the regulation
stipulated by original plants. Factors not accordance with the regulation of original

plantssuch as daily consumed components, wrong operating, lack of maintenance

are not included in the quality guarantee.

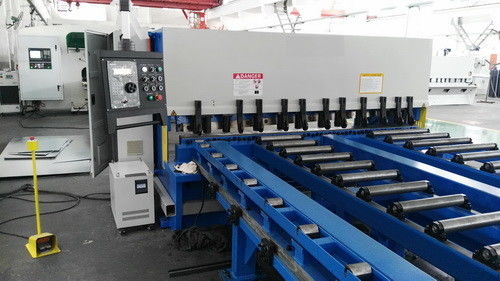

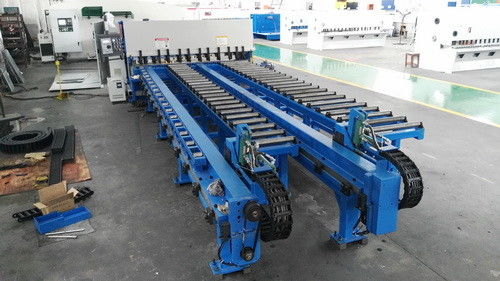

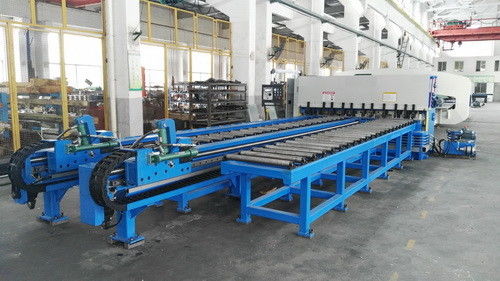

Machine picture:
