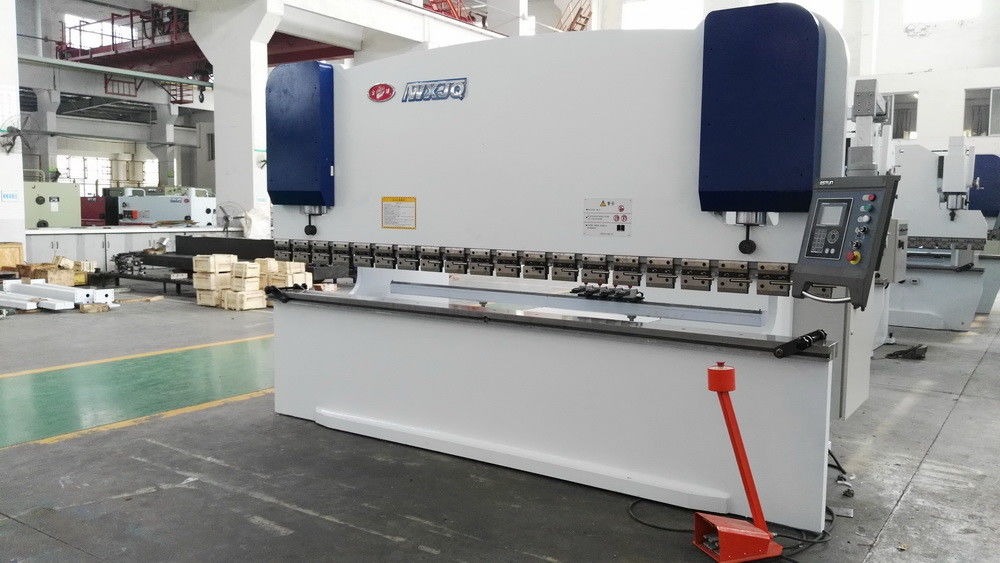

Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine

China Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine supplier
Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine supplier Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine supplier Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine supplier

Large Image :  Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine

Product Details:

Place of Origin: WUXI
Brand Name: WXJQ
Certification: ISO9001
Model Number: WC67K-125/4000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: iron pallet and wooden case container: 40'HQx1
Delivery Time: 30 days
Payment Terms: L/C or , T/T
Supply Ability: 30 serts one month
Contact Now
Detailed Product Description
Bending Times: 8 Times/Min-1 Name: NC Sheet Bending Machine/sheet Metal Press Brake
Fearture: Quick Working Speed And Better Quality Table Width: 4000mm
Color: White And Deep Blue Compensation: Maual Adjusted

Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine



 maintenance the sheet metal press brake/ plate press brake/ sheet bending machine



steel shell bending machine Performance

  • the digital dispaly sheet metal press brake machine's frame is steel welded constrction, vibration to eli,inate stress with high strength and good rigidity.
  • the ram is adopted hydraulic top drive with two cylinders working smoothly and stably. mechanical stop nuts ensure stable and reliable positioning accuracy.
  • the mmecnhical sheet press brake's stroke and the back gauge position can be speedily adjusted by motor and fine can be adhusted by handwheel.
  • crowned bottom die holder for deflection compensation is adopted for the machine above 200T plate press brake.
  • there us deflection compensation unit installed in the top tool holder, when
  • the nominal pressure reaching 200tonsm the unit  will be instakked under bottom tool.

Quick clamps is for easy operation of removing and changing upper punch tools



Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine

CNC plate press machine Specification


Type Hydraulic press brake
Working force 125T
Length of table 4000 mm
distance between frames 2650 mm
Throat depth 320 mm
Open height 480 mm
Stroke 100mm
Speed Idle down 60mm/s
Working 8mm/s
return 40mm/s
support arm offer two support arms
Main motor 7.5kw
Tool With 1 punching and 1 bottom die
Main Electric Elements in cabinet Schneider or Siemens
Seal in the cylinders NOK, Japan
Gross weight 6500 kg
Overall sizes(mm) LxWxH 2800x1970x2345
Packing: Iron pallet With plastic cover
Delivery date 30 days after sing the contract

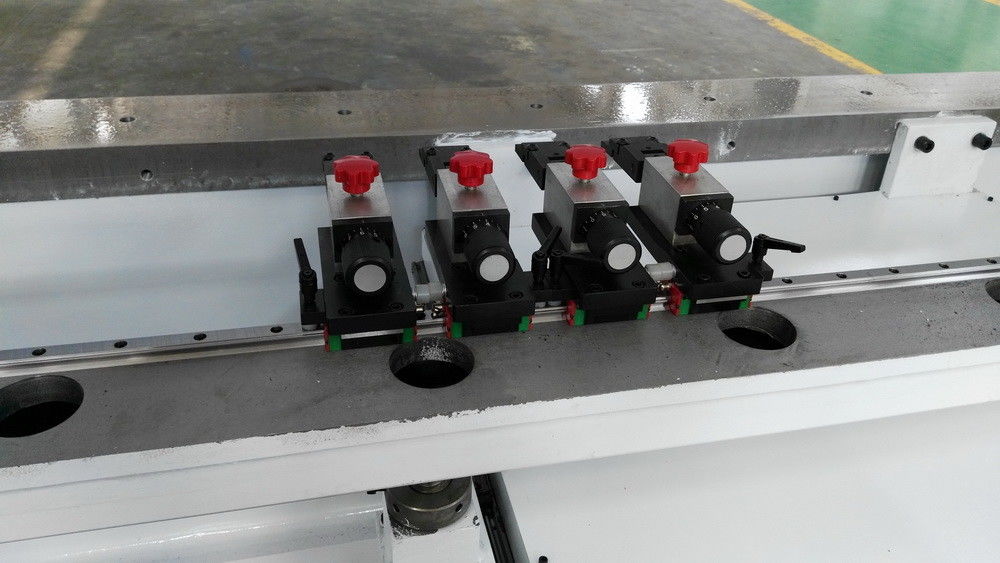

Backgauge installed with ball screw and linear guide rail,ensuring high accuracy

of repetition

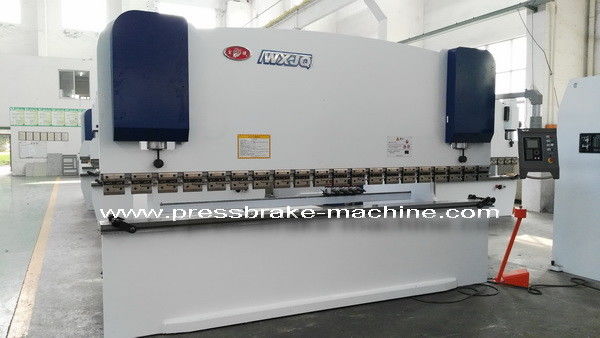

Economy Steel Sheet Bending Machine NC Press Brake 125T /4000 Folding Machine

Standard Equipment for normal 380V press brake machine

1. System intermedliate Upper clamps with Anti Wedges

2. Plate Support Arams

3. Powered Depth Axis

4. Backstop

5. side guard fence and rear guard fence

6. Top and Bottom Tooling

7.  Hydraulic and Electrical overload protection

8.  Hydraulic vlave

9. Electric compenents:Telemecanique/Schneider Electrics

10. Delta inverter with ball screw and polished rod with 0,05mm accuracy

11. Squaring Arm and Front Support Arms

12. foot switch with emergnecy

13. control system E21S and DA-41 is optional

Feature

  • Advanced proportional valve controls the hydraulic cylinders to work synchronously and
  • achieve precise repeatability performance
  • Be capable of be controlled at random point within the stroke
  • Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
  • Deflection compensation table or crowning system for high precision
  • Holland Delem DA41 NC together with linear encoder,servo motors and other famous
  • brand elements to ensure excellent performance

Quality Guarantee

  • Since press brake machine reached the agreed destination, its main parts will be guaranteedwithin one year or 1000 hours (subject to the earlier mature term).
  • We take charge of all troubles caused by plate rolling machine's fault and repair according to the regulation
  • stipulated by original plants. Factors not accordance with the regulation of original
  • plantssuch as daily consumed components, wrong operating, lack of maintenance
  • are not included in the quality guarantee.
