Automatic 4 Axes Sheet Grooving Machine / V Groove Cutting Machine Gantry Type

China Automatic 4 Axes Sheet Grooving Machine / V Groove Cutting Machine Gantry Type supplier

Large Image :  Automatic 4 Axes Sheet Grooving Machine / V Groove Cutting Machine Gantry Type

Product Details:

Place of Origin: China
Brand Name: JQ
Certification: CE
Model Number: BC1240

Payment & Shipping Terms:

Minimum Order Quantity: Min. 1 set
Packaging Details: iron pallet and nude packing
Delivery Time: 35 days
Supply Ability: 5 set every month
Contact Now
Detailed Product Description
Name: CNC V Planing Machine/V Grooving Machine Ymachine Type: Gantry Ytpe
Control Axes: Control 4 Axes Raw Material: 45# Steel
Clmaping Type: Hyddraulic Ytpe Clamping Character: Fast Working Speed, Avoid Scrach The Surface Of Sheet And Easy Operating


Automatic 4 Axes Sheet Grooving Machine / V Groove Cutting Machine Gantry Type



6mm sheet V grooving machine, V groover,V cutting machine,CNC notching machine, CNC plate V groover



Performace:

The equipment adopts the big pitched ball screw and high torqued servo motors

as the main drive, which makes knives more stable and faster when processing.

The worktable of high strong plate as the surface makes the workpieces not easy

to wear in machining.

A panel with the adjustable fuselage during the workpiece activities makes the

point to every bit of mesa precision in 0.02 mm distance that within.

Equipment which adopts PLC man-machine interface programming allows the

operating personnel easy to understand and locate accurately.



welcome to contact:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039



Specification:



TECHNICAL FEATURES
1 Type CNC GROOVING MACHINE
2 Thickness of plate

0.6-4mm

( the flattens of the sheet <3mm)

4 Length for plate to be processed 4000mm
5 Width of plate 1250mm
6 Cutting speed of blade beam 60m/min
7 Moving speed of blade beam and end clamping 12m/min
8 The Max. speed of blade up &down moving 8m/min
9 The accuracy of working bend ±0.03 mm
10 X axis motor power 5.5kw
11 X1,X2 axis servo motor power 1kw
12 Z axis servo motor power 1kw
13 The power of hydraulic pump 2.2kw
14 Pneumatic pressure 0.6Mpa
15 Dimension 6140×2150×1512mm
16 Weight about 8500kg
19 Controller system Hust H6 or touch screen
22 Delivery date 20 days

















































Fearture:



Whole machine body welded by steel plates with high strength

and small deformation.

Full CNC automatic working

Automatic clamping and loosening

 Blade moving meanwhile sheet works stay in its place,so save space

Quick changing of blades

Three sets blades working together to save time

Knock-down front support arms for long work pieces

Servo motor to ensure high precision

Less noise and high performance



Application:


The machine is designed for cutting Grooves on metal sheets and plates,

such as steel, aluminum, aluminum, copper, plastic, wood and acrylic panels.

It is especially and widely used in Stainless sheet decoration field, to make

V grooves before bending



Our Service:


Warranty : one year

Engineers available to serve machine overseas

Strict factory inspection

Complete equipment manual

Online instruction

Provide all components, spare parts and consumptive material

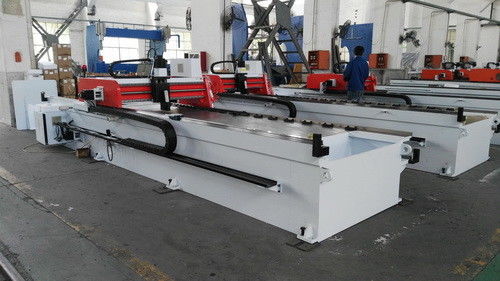

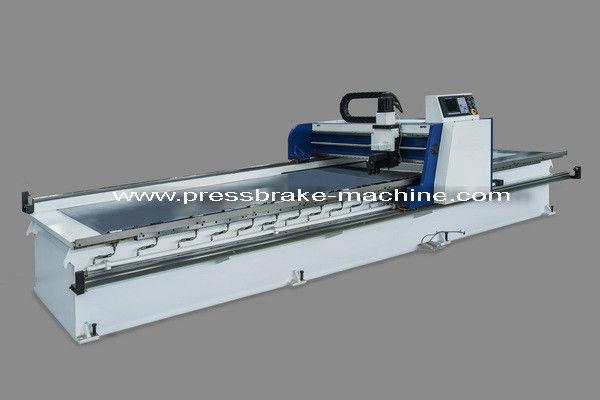

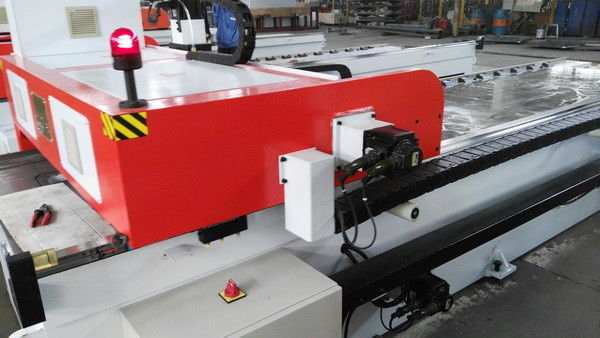

Machine picture:



 Automatic 4 Axes Sheet Grooving Machine / V Groove Cutting Machine Gantry Type

 Automatic 4 Axes Sheet Grooving Machine / V Groove Cutting Machine Gantry Type


Automatic 4 Axes Sheet Grooving Machine / V Groove Cutting Machine Gantry Type
