Stanless Steel CNC V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece

Stanless Steel CNC V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece

  • High Light

    cnc grooving machine

    ,

    sheet metal grooving machine

  • Name
    CNC V Slotting Machine/ V Grooving Machine
  • Loading Container
    40'HQ Contianer
  • Model
    Gbc-1250/6100
  • Controller
    Touch Screen DTC-660
  • Rang Of Back Gauge
    20-800mm
  • Material
    12MovSi
  • Place of Origin
    China
  • Brand Name
    JQ
  • Certification
    CE
  • Model Number
    BC05K-1250/6100
  • Minimum Order Quantity
    Min. 1 set
  • Packaging Details
    iron pallet and wooden case container: ,40'GPx1
  • Delivery Time
    30 days
  • Supply Ability
    5 set every month

Stanless Steel CNC V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece



Stanless Steel V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece



 V grooving machine, V groover,V cutting machine,sheet metal V grooing machine,CNC Notching machine



CNC V grooving machine Introduction

This equipment is fully CNC V Groover Machine for metal sheet. It adopts

advanced CNC system and innovative design with the advantages

of high processing precision, simple operation, no noise, no vibration and so on.

It is widely used in the sheet metal V-groove, U-groove

and other irregular groove processing (including stainless steel, aluminum,

aluminum plate, copper, iron, plastic, wood, acrylic panels and

other special plates.). Particularly, it is applicable to the V-groove processing

of sheet metal before bending .



CNC sheet V groover Describtion

This V cutter machine composed of bed, beam, tool rest, cnc system, pneumatic material hold-down unit, compressed air blowing and cooling system. It is a gantrytype grooving machine.

The bed and beam is box-type structure. Steel welded structure, tempering aging to eliminate stress. Good rigidity and accuracy.

Tool rest action of moving forward and backward(Y1 axis), up and down(Z axis),and forward and backward on hold-down(Y2 axis) are all controlled by cnc system.

AC Servo drive, ball screw transmission, with high accuracy and location accuracy.

Left and right moving of beam(X axis) use ac frequency conversion motor drive,

transmission motion with gear and rack, with high speed, strong loading capacity.

The pneumatic hold-down system ensure good machining precision and repeat accuracy, which can automatically adapt different sheet thickness

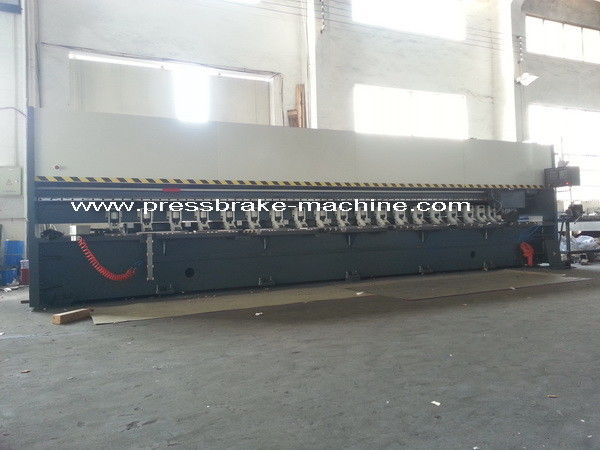

Rear Feeding Device for plate V grooving machine

Stanless Steel CNC V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece 0

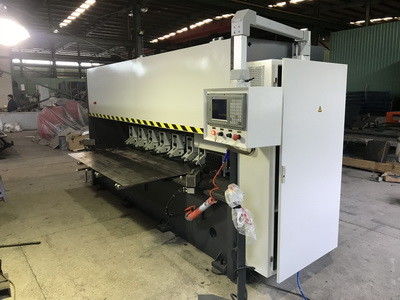

Carrier Of Blades of CNC sheet metal V grooving machine

Stanless Steel CNC V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece 1

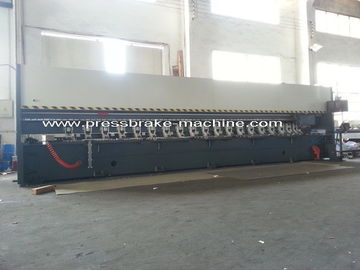

Worktable And Pneumatic Hold Down for sheet V grooving machine

Stanless Steel CNC V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece 2



Technical Data of 6mm stainless steel V grooving machine

Item 1250/6000 1250/5000
Cutting length 6000mm 5000mm
Cutting width 1250mm 1220mm
Sheet thickness 0.6-4mm 0.6-4mm
Max. Cutting speed 0-1000mm/sec 0-1000mm/sec
Max. X Dolly return speed 0-1000mm/sec 0-1000mm/sec
Y axis moving speed 20 m/min 20 m/min
Z axis moving speed 20 m/min 20 m/min
X axis control AC frequency driver control, Brand Delta

AC frequency driver

control, Brand Delta

Y,Z axis control Servo driver control, Brand Delta

Servo driver control,

Brand Delta

Linear guide & ball screw Taiwan HIWIN Taiwan HIWIN
Bearing SKF SKF
X axis motor power 4KW 4KW
Y/Z axis motor power 1.5/ 1.0 KW 1.5/ 1.0 KW
Control system Siemens PLC Siemens PLC
Cable

Main Cable :

Germany IGUS

Main Cable :

Germany IGUS

Max cutting step 15 cycle 15 cycle
Machine dimension 7600x2350x1550(mm) 66200x2350x1550(mm)
Machine weight 10600kg 9300kg



Enclosed Accessory

  • backup plate               12 pieces
  • allen wrench                1 set
  • screw                         some pieces
  • high speed steel           3 sets
  • alloy blade  holder       5sets
  • alloy inserter              12 pieces
  • feeler blcok                1 set
  • oil gun                        1 piece
  • Foot pedal                  1 piece

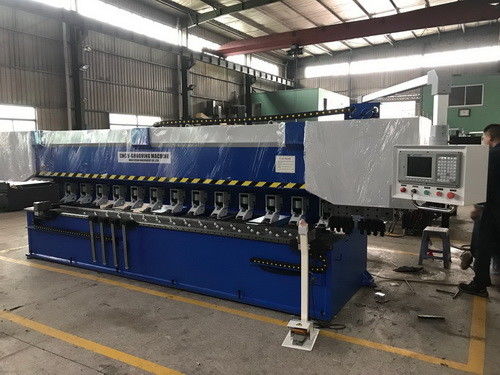

CNC sheet V cutting machine picture


Stanless Steel CNC V Grooving Machine Foot Pedal Notching 6100mm Long Workpiece 3
