Stainless Steel Door CNC Hydraulic Press Brake With High Strength Gooseneck Tools

Stainless Steel Door CNC Hydraulic Press Brake With High Strength Gooseneck Tools

  • High Light

    mechanical press brake


    Steel Plate Bending Machine

  • Name
    CNC Hydraulic Press Brake Machine
  • Application
    Stailess Steel Door
  • Bending Material
    Stailness Steel And Mild Steel
  • Length
  • Processing
    Heat Treatment And Quench
  • Working Mode
    Automatic Bending And Single Bending
  • Place of Origin
  • Brand Name
  • Certification
    CE and ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

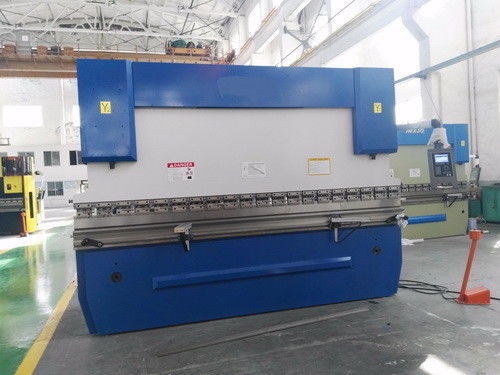

Stainless Steel Door CNC Hydraulic Press Brake With High Strength Gooseneck Tools

Stainless Steel Door CNC Press Brake Machine With High Strength Gooseneck Tools


sell electrical cnc sheet metal bending machine hydraulic press brake/bender plate bending machine

/CNC press brake machine/press brake tooling.


 Mechnical press brake machine description:

Press Brake is Equipped with the DELEM user-friendly interface, the Delem provides all main

press brake functionality.

Automatic tonnage and sroke adjustment for bending angles. Perfect bending results with easy

angle input and operation of machine.

With models varying in capacity from 40 - 300 tons (US), Amada’s new press brake series

can handle a full range of material thicknesses in bend lengths from 55 to 169.3 inches.

Equipped with a newly-developed AMNC 3i (intelligent, interactive, integrated) control,

the series press brake provides high-speed and high-accuracy with unprecedented ease

of use. A 19" multi-touch LCD panel ensures simplified operation. The user-friendly screen

is designed for intuitive operation (similar to a smartphone) allowing for fast and efficient

entry even if an operator lacks experience. Enhanced database network features provide

better communication between the CAM program and the AMNC 3i — resulting in less

manual interaction and faster processing.

Additional features of the new HG series include:
Bend Indicator technology ensures high-speed and high-precision.
AMTS tooling provides the ideal solution for multi-stage bending.
Independent L-Axis (L-Shift) provides the capability to bend a wide variety of part shapes.
Standard emergency safety features such as an emergency shut-off button on the controller

panel, an interlock (OFF mode), stopped axis movement when guard is opened and a laser

guard device.


Technical Parameter:

Type Hydraulic CNC electro-hydraulic synchro
Working force 125T
Length of table 3200 mm
distance between frames 2650 mm
Throat depth 320 mm
Open height 660 mm
Stroke 200mm
Speed Idle down 100mm/s
Working 8.5mm/s
return 75mm/s
support arm offer two support arms
Main motor 7.5kw
CNC system Type: DA- 52s Delem Co., Netherlands
Control Axis:Y1,Y2,X,R and V
(crowned compensation)
Tool With 1 punching and 1 bottom die
Main Electric Elements in cabinet Schneider or Siemens
Seal in the cylinders NOK, Japan
Gross weight 9300 kg
Overall sizes(mm) LxWxH 3550x1990x2610
Packing: Iron pallet With plastic cover
Delivery date 30 days after sing the contract


CNC press brake main Feature:


1.Totallly EU standard design, monoblock by welding robots& apparatus and stress relief process by annealing treatment.

2. Bystricpress engineers utilize parametric 3D Slid works using FEM & DOE analysis as well as static and mechanical analysis.

3. Adopt integrated hydraulic system, more reliable and easy for maintenance and the hydraulic system from Bosch-Rexroth, Germany.

4..Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.

5. The stroke and distance of the backgauge is adjustable by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.

6. Inch, single, continuous operation mode being designed for the machine and reversing and maintain time cane be controlled by the time relays.

7. Safe fence and the electric interlocer have been designed for the machine to ensure the operation safety



Overall welding process structure
Closed loop control mode composed of imported famous electric-hydraulic servo valve and

measure ruler
High position feedback precision of sliding block, stable & precise operation, good

synchronization performance, high accuracy of bending and repeated positioning of slide block
Several multifunctional axial of rear stopper device can be used according to customer’s

Hydraulic system adopt integrated control system to decrease pipeline installation and oil leak,

which will ensure the stability and beauty shape of tool machine
The automatic hydraulic & mechanical deflection compensation structure will eliminate the

influence on product quality caused by deformation of slide block. The NC system will adjust

the compensation automatically. It’s convenient and with high accuracy.
The CNC system adopt world famous brand, which also been used by Holland DELEM,

Italy ESA,Swiss CYBELEC, etc.


Stainless Steel Door CNC Hydraulic Press Brake With High Strength Gooseneck Tools 0


Stainless Steel Door CNC Hydraulic Press Brake With High Strength Gooseneck Tools 1



Standard Equipment:


1. System intermedliate Upper clamps with Anti Wedges

2. Plate Support Arams

3. Powered Depth Axis

4. Backstop

5. Light guards

6. Top and Bottom Tooling

7. DELEM DA52 CNC control

8. Germany Bosch-Rexroth Hydraulic

9. Telemecanique/Schneider Electrics

10. Hydraulic and Electrical overload protection

11. Squaring Arm and Front Support Arms

12. Delta inverter with ball screw and polished rod with 0,05mm accuracy

13. Side guard is standard meeting CE regulations.

Quality Guarantee:

Since press brake machine reached the agreed destination, its main parts will be
guaranteedwithin one year or 1000 hours (subject to the earlier mature term).
We take charge of all troubles caused by plate rolling machine's fault and repair
according to the regulation
stipulated by original plants. Factors not accordance with the regulation of original
plantssuch as daily consumed components, wrong operating, lack of maintenance
are not included in the quality guarantee.
