500Ton Hydraulic Straightening Machine 4 Colunm Type Press Machine Bend Steel Pipe

500Ton Hydraulic Straightening Machine 4 Colunm Type Press Machine Bend Steel Pipe

  • High Light

    Power Press equipment


    mechanical power presses

  • Structure
    Double Column Type
  • Name
    Straightening Press Machine
  • Working Prssure
  • Application
    Straightening The Round Pole And Polygonal Pole
  • Drive Type
    Electrical And Hydraulic Drive
  • Feature
    Machine Body Left And Right Movment
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: 40'GPx2
  • Delivery Time
    60 days

500Ton Hydraulic Straightening Machine 4 Colunm Type Press Machine Bend Steel Pipe

500Ton Hydraulic Straightening Machine 4 Colunm Type Press Machine Bend Steel Pipe
supply Hydraulic press machine,hydraulic press, straightening machine,bending machine

moving type straightening Characteristic:
this straightening press machine is four column structure, mainly is suitable for straighten
the round pole, circular pipe, polygonal pole and solid pole.
the press machine body can left and right moving to straighten different posiiton. and there

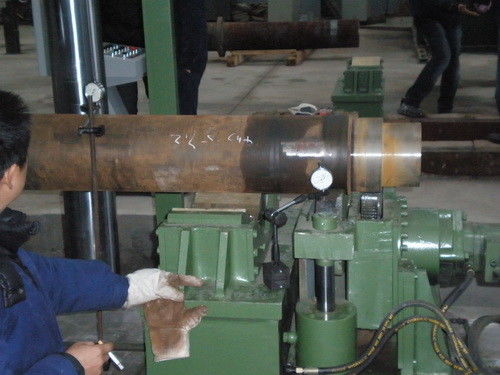

are two lifting and rotation device on the worktable. it can easy rotate the work piece to different
surtace to bend and check the camber. the bending support device also can move in left and
right to suit the different length pole.
the press machine equip two sets of  hydraulic stantion, one supply the 4 colunm press machine,
another one supply the lifting&rotation device. it can get lower noise and stable pressure.
the hydraulic press adopts steel welding and eliminating stress, the hydraulic system all

closed in the fuselage, very convenient in practical use. and miantennce.according to the

diffrent products  are V ytpe lit table, replace the pressure head is convenient manual botton

control, automatic return,
high efficiency, good quality installation,overheating set of process.
Functions: Hydraulic machine from the YQ series based on the increase of operating speed
(high speed hydraulic machines), in order to adapt to the needs of the extrusion process, the
tonnage of the scope of 100-600 tons.
Technical parameter:YD61-500T
main cylinder pressure return(KN):5000
main cylinder pressure return(KN):930
under the push-out pressure(KN):1000
effective size of table(left right*front back)(mm*mm):1000*1000
master cylinder stroke(mm):600
under the top cylinder stroke(mm):300
slider away from the table the largest opening(mm):900
speed(mm/s)fast down:200
speed(mm/s)slow down:10-20
motor power(KW):44
Moving Worktable Press Machine Introduction:
The Hydraulic press has three-beam and four-pole structure, which means
economical and practical. Operation space is wide, and the movable bolster
could be moved out of frame to set the die. The structure is simple and the
appliance is also beautiful. Hydraulic control adopts plug-in valve system,
which means reliable motion and long service life. The press,, which could
realize three-operation mode: adjustment, manual and semi-automatic.
The machine is applicable for metal sheet stretching and pulling, stretching,
punching, bending. It is also used for pulling, stretching and pressing
large-scale products. Presses offer fast, easy, and safe setup and operation
as well as years of trouble-free service.
4 Column hydraulic straightening Machine paramter:

Type 4-column hydraulic press
Working force 5000KN(500T)
Hydraulic pressure 25 MPa
Max. distance between table and slipper 1200 mm
Max. Stroke of slipper 520 mm
Rotating speed of the workpiece 300-500 mm/min
Diameter of the work piece 100-400 mm
Length of the work piece Max.6000 mm
Lift up force for work piece 100KN
The stroke of the lift up 120 mm
The speed of the lift up 7.5 mm/sec
The moving speed of the press machine 30 mm/sec
The moving distance of the press machine 5000 mm
The size of the worktable 6400х800 mm
The speed of the slipper 60 mm/sec
Working speed 2-8 mm/sec
Return speed 60 mm/ sec
The distance from the worktable to floor 400 mm
Motor power 27.1 KW

1. Our guarantee time is 13 months from shipment date. If any component is damaged during
guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training
freely. The customer provide the double trip tickets, food and accommodation for our engineer.
The customer can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help,
can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line
More information please contact us:
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039

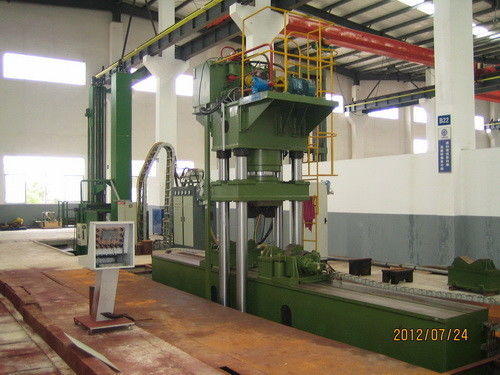

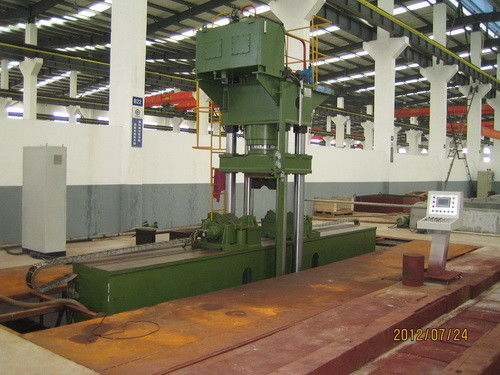

6m length straightening press Machine picture:
