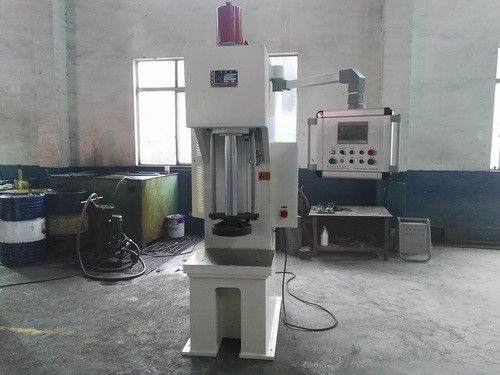

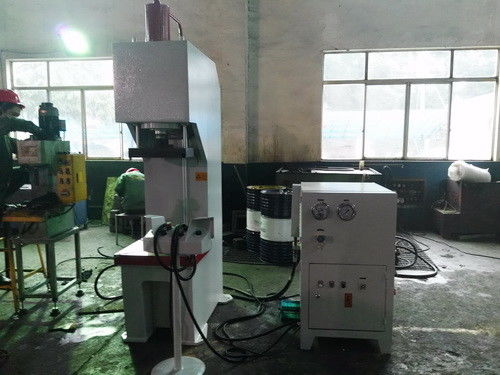

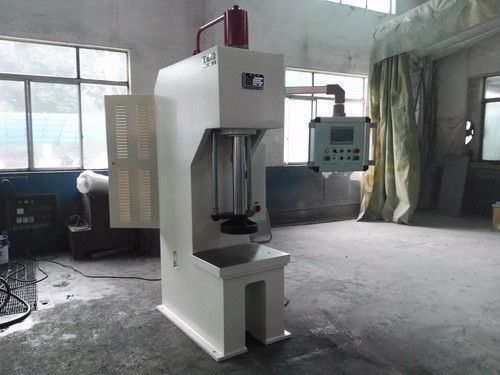

Servo Drive C Type Hydraulic Power Press Machine 125T Capacity

Servo Drive C Type Hydraulic Press Machine Motor Pressing Machine 125T Capacity



buy C frame press machine,hydraulic press, mechnical press machine,bending machine



characteristics:
the strainer hydraulic press has a C-type single arm structure and is welded by steel plates.

After welding, it is tempered and aged to ensure that the fuselage is never

deformed. Hydraulic system is located in the fuselage, beautiful appearance, easy to operate.

Mainly used in metal products stretching, forming and pressing processes.
Application area:
It can also be used in the pressing of powder metallurgy products, the correction of shaft parts,

the press-fitting of sets of parts, and the shaping and trimming of metal products. calibration table · imported PLC · manual or pedal operation, cantilever hoist.



Performance:

This series of single-column hydraulic presses are computer-optimized with an upright C-shaped

structure design. They have good rigidity and are welded with steel plates. After welding, they are

tempered and aged to ensure that the fuselage will never be deformed. The hydraulic system is

installed in the fuselage, with beautiful appearance, compact structure and convenient operation.

This series of hydraulic presses is equipped with an independent hydraulic and electrical control

system. It adopts button centralized control to realize both fixed and constant pressure molding

processes. The machine stroke and pressure can be adjusted within the specified range; the press

head adopts four-column guide with resistance Partial load capacity.
Field of application: This series of hydraulic presses is applicable to the correction process of shaft

parts, profiles, etc. It is applicable to the press-fitting of shafts and sets of parts and the process of

drawing, bending, stamping, forming, blanking and other processes of simple plate parts. General

powder and plastic products are pressed.


Work Environment :



Power Requirement: Three phase four wire, 380V, 50HZ ( as design accepted)

Installation Field: Clean, low dust

Maximum Temperature :40ºC

Minimum Temperature: -5ºC

Relative Temperature:55—85%

Height: less than 1000M



Dual control can select to use:



Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons

& extra emergency stop.

Movable single-hand pedal switch .

Optional touch screen terminals offer:



Data storage of mould(s) and manufacturing conditions.

Reduced mould replacement time and calibration, fabrication requirements.

Programmable memory for working conditions, displays pressure, stroke, spend data, etc;

one cycle process sequence.



Parameter:

Model		Unit	Y41-63T	Y41-80T		Y41-100T	Y41-160T
Nominal Pressure		KN	630	800		1000	1600
Max.Pressure		Map	24.3	25.8		25.8	25.8
Max.Opening Height		mm	630	720		800	1000
Slide Stroke		mm	500	500		500	500
Down speed of slide		Mm/s	50	50		36	25
Return speed of the slide		mm	90	90	90		65
Throat depth		mm	350	350		350	325
Dimensions of Die Table	F.B.	mm	550	650		650	650
	L.R.	mm	850	800		800	800
Worktable Height		mm	710	710		730	750
Work Table Opening Diameter		mm	140	140		140	200
Hydraulic cylinder diameter		mm	180	200		220	280
Motor Power		Kw	7.5	7.5		7.5	11



Packing & shipping:



PVC film covered hydraulic press

Whole machine fixed in the container with steel rope,very safe

Wooden case or pallet or iron box

If have stock,can provide right now

If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.

Can give destination port best price or cost to the customer factory



Our Service:



All machines have been tested by 48 hours before ship out.

All products have 2 year warranty.

Supported 24 hours online service. If any problems happen, our team will do our

best to solve the problems.

If any component is damaged during guarantee time. we can send the component to

the customer by DHL freely



Our Advantage:



MOQ: We can supply you the quantity you want.

OEM: We can produce the goods as per the customer requirement.

Service: We are much more concern for the on time delviery & quality
