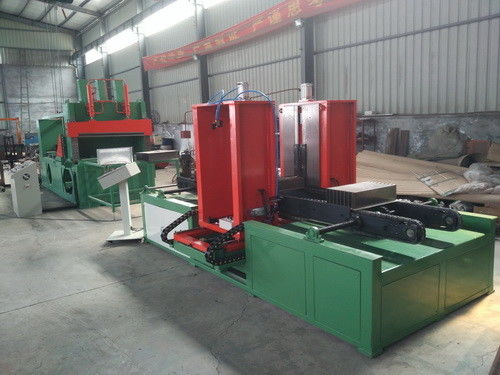

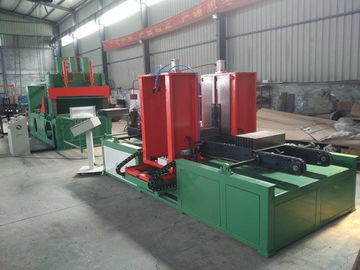

1600mm Corrugated Band Former Corrugated Fin Forming Machine Transformer Tank Make
-
High Light
section bending machine
,sheet metal folding machine
-
NameTransformer Oil Tank Making Machine
-
Corrugated Sheetwidth300-1600mm
-
Automatic GradeAutomatic Feeding,forming And Welding
-
Corruated Height150mm Or 250mm
-
Material1-1.6mm Coil Sheet
-
ApplicationProcessing The Transformer Oil Tank
-
Place of OriginCHINA
-
Brand Namewx
-
CertificationISO
-
Model Number1600B
-
Minimum Order Quantity1 set
-
Packaging Detailsiron pallet or nude packing
-
Delivery Time20 daus
1600mm Corrugated Band Former Corrugated Fin Forming Machine Transformer Tank Make
Corrugated Fin Forming Machine 1600mm Corrugated Band Former Transformer Tank Make

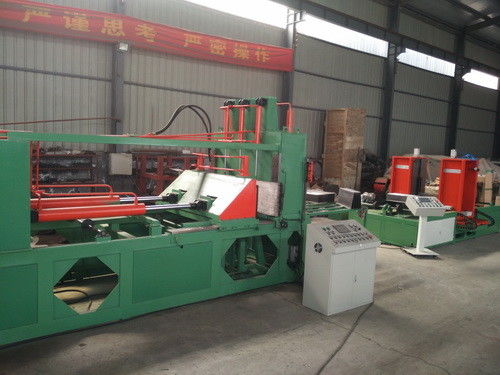

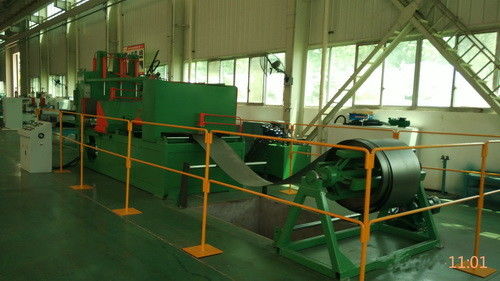

Equipment composition of the corrugated fin forming machine
transformer oil tank production line such as unclier,feeding trolley,numerical control corrugated band
forming machine,hydraulic clipping machine, power driven conveyer, numerical welding machine Etc.
are contained.
parameter of corrugated band forming machine
| No. | name | unit | data |
| 1 | Width of corrugated sheet | mm | 300-1300 |
| 2 | Thickness of corrugated sheet | mm | 1～1.5(recommend material SPCC,SPCE) |
| 3 | Height of Corrugated fin | mm | 100～400 |
| 4 | Pitch of corrugated fin | mm | ≥45-80 adjustable |
| 5 | Gap of fin | mm | 6±1 |
| 6 | Rang of uncoiler | mm | φ460-φ520, |
| 6 | Capacity of unclider | mm | ≤5000kg |
| 7 | Driven of uncoiler | Motor driven, frequency control | |
| 8 | Cutting function | Automatic cutting | |
| 9 | Total poer | KW | 14 |
| 10 | control | Touch screen | |
| 11 | Cover an area | mm | 9000×4000 |
| 12 | Cooling mode | Water cool |
technical data of corrugated oil tank welding machine
| Name | Spc | remark |
| mode | BWH-1300A | |
| Thickness of sheet | 1～1.5(mm) | |
| Width of corrugated fin | 300～1300(mm) | adjustable |
| Height of corrugated fin | 400(mm) | adjustable |
| Pitch of corrugated fin | 45～60(mm) | adjustable |
| adjusting rang of compressed air | 0.2～0.8(Mpa) | |
| Electrical control | Touch screen and button control | |
| Overall size: | 3600mm×2000mm×2000mm | |
| power | About 25KW | Include welding machine |
General Description
1) Special machine for transformer fuel tank.
2) Include loading trolley, main machine, hydraulic station and electric control box etc.
3) Has reasonable structure and operation easily.
4) The hydraulic system is automatic controlled and running stable.
5) May complete such as forming, shearing, bending etc process within one time when you put all operation
parameters at screen.
6) The main technical parameter
Detailed Product Description:
1. Parts of Power Transformer Corrugated Fin Forming Machine
1) Hydraulic Automatic Decoiler Machine
2) Transformer Corrugated Fin Forming Machine
3) Hydraulic Transformer Corrugated Fin Shearing and Bending Machine
4) Transformer Corrugated Fin Automatic Welding Machine
5) Hydraulic Station
6) PLC Control System
2. Features of Power Transformer Corrugated Fin Forming Machine
1) Specially designed for forming and welding transformer corrugated tank fin.
2) PLC control, fully automatic line: automated conveying, clamping and welding.
3) Touch screen control it is easy and convenient to operate.
4) High-speed welding, much faster than manual welding.
3. General description of Power Transformer Corrugated Fin Forming Machine
1) Includes materials guidance, feeding, front pack, rear pack, edge folding,
shearing and parts collection.
2) The hydraulic system is automatic controlled and stable running.
3) Human interface computer dialogue display, reasonable structure and easy in operation, labor saving
(1~2 labors).
4) Perform the process of forming, shearing and edge folding within one time when you input all operation
parameters on computer unit.
5) Since it’s using, this machine has been proven to have lasting performance, reliable quality and high
efficiency by the transformer manufacturers.
