Hydraulic Type 1500X4000 CNC V Grooving Machine Process 10mm Thickness Sheet Metal
sheet V grooving machine, V groover,V cutting machine,CNC plate V grooving machine

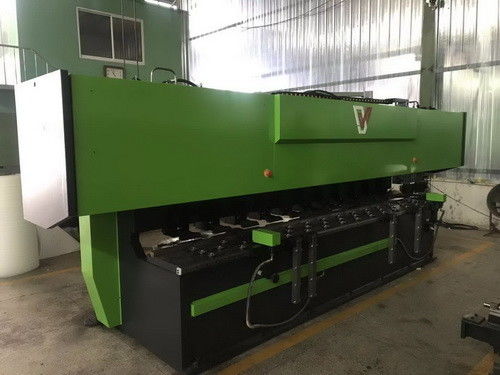

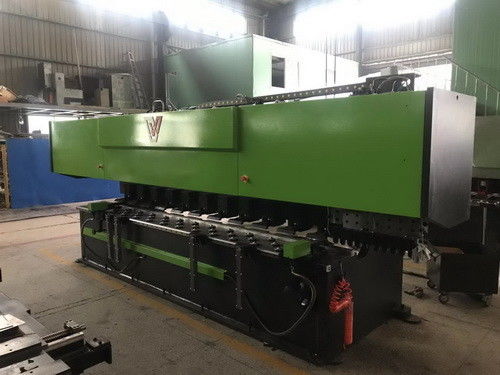

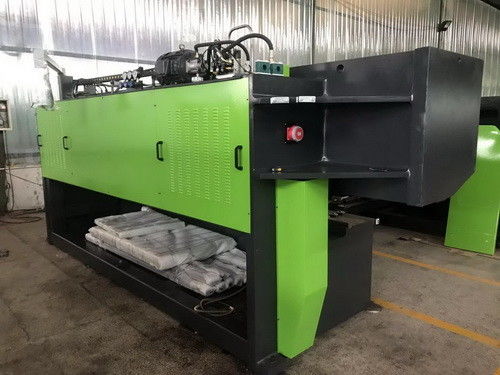

Machine Describe for sheet V groover:
sheet CNC V grooving machine 1500/4000 make different depth grooves on the stainless steel ,mild steel
and aluminum sheet. it has the advantage of fast cutting speed, high precision,low noise and easy operating.
Make the V shaped grooving before bending of sheet metal, the working parts
shall have edges and corners are distinct with correct and pretty appearance.
For the sheet metal after grooving, it can form special materials with complicated
shapes on the common bending machine. Automatic pneumatic clamping device
is used for sheet metal and servo motor is used for knifes.
The processing and positioning precision is good. Double cutting with high
Feature for automatic sheet v groove machine:
stianless steel CNC V slotting machine composed of bed, beam, tool rest, cnc system, pneumatic
material hold-down unit, compressed air blowing and cooling system. It is
a gantry type grooving machine.
The bed and beam is box-type structure. Steel welded structure, tempering
aging to eliminate stress. Good rigidity and accuracy.
Tool rest action of moving forward and backward(Y axis), up and down(Z axis),
and forward and backward on hold-down(Yaxis) are all controlled by cnc system.
AC Servo drive, ball screw transmission, with high accuracy and location accuracy.
Left and right moving of beam(X axis) use ac frequency conversion motor drive,
transmission motion with gear and rack, with high speed, strong loading capacity.
The pneumatic hold-down system ensure good machining precision and repeat
accuracy, which can automatically adapt different sheet thickness.
Paramter of 8mm sheet v groover machine:
|Type||CNC V cutting machine)|
|Thickness of plate||0.6-8mm|
|Length for plate to be processed||4000mm|
|Width of plate||1500mm|
|Y axis minimum unit set||0.01mm|
|Y axis minimum position accuracy||±0.05|
|Z axis minimum unit set||0.01mm|
|Z axis minimum position accuracy||±0.03|
|X axis motor power||4kw|
|Y axis motor power||1.5kw|
|Z axis motor power||1kw|
|Delivery date||25 days after receive down payment|
Configuration Of CNC sheet V grooving Machine:
CNC control system DELTA taiwang
inverter TATSU DENTSU
servor motor TATSU DENTSU
reducer SEW Germany
Linear guide SILVER Taiwang
ball screw SILVER Taiwang
commuication cable Easy Grath Germany
Pneumatic componets: AIRTAC Germany
cooling system BEIQIER
electrical componnets: Scheider
Our Service from CNC sheet V grooving machine manufaactucure:
Warranty : one year
Engineers available to serve machine overseas
Strict factory inspection
Complete equipment manual
Provide all components, spare parts and consumptive materia
Enclosed Accessorers of CNC sheet V cutting machine:
