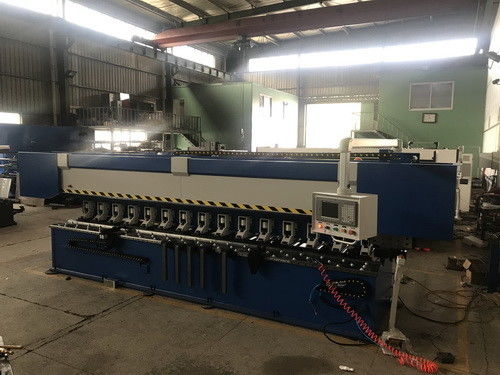

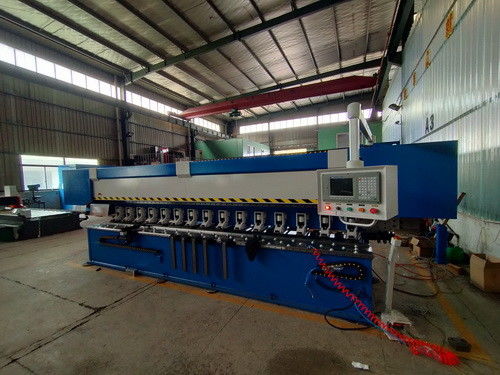

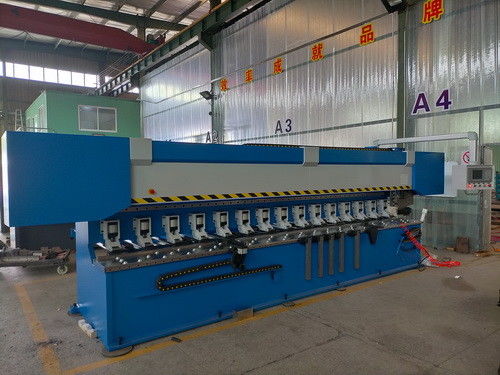

5m Length CNC Sheet Metal V Grooving Machine 1250/5000 with 5 alloy blades to cut
Max. width of steel sheet to be notched: 1250mm
Max. length of steel sheet to be notched: 5000mm
Maximum thickness of steel sheet to be notched: 6.0mm
Min. thickness of steel sheet to be notched: 0.6mm
Max. distance of the rear fedding: 1250mm
Resolution of blade beam movement: 0.001mm
Max. speed of cutting: 15-400m/min
Max. distance of tool carrier movement (up & down) 100mm
Resolution of distance tool carrier movement: 0.001mm
Max. distance of sliding frame movement: 5000mm
Work-piece error within 3200mm: ±0.05mm
Min. distance of V-trough edge: 15mm
Positioning precision: ±0.05mm
The motor of blade bean( left & right moveing) 5.5Kw
The gas path pressure range : 0.6Mpa
Gross weight: 7500kg
CNC sheet metal V grooving machine use Q235 material welded frame structure, vibration to eliminate
the welding stress. good rigidity and stability
high-speed cutting groove.
Max. cutting thicness:0.6-6mm. Max. cutting width: 1230mm
Electrical system with CE certificate(Sheinder, Germany)
Motor with CE (SEW, Germany)
Pneumatic system with CE ( AIRTAC, Germany)
CNC sheet metal V grooving machine Feature
moving blade head of CNC V grooving machine
CNC V groover Packing And Shipping
1. the machine adopt iron pallet with plastic cover to pack after the machine is
running and testing for 48 hours.
2. Before loading, stable package, professional and skilled loader reduce
damage of product during transport
Shipping Documents of CNC sheet V cutting machine
rear feeding device of CNC steel plate V slotting machine/ CNC grooving machine
the rear feeding driven by the servo motor, the speed is 6mm/min. instalaing 8 pcs the pressure clamp
to clamp the sheet sheet to keep the feeding position. the pressure clamp adopt the compressed air
to clamp the sheet.
After Sales Service of CNC sheet V grooving mchine
1. Our guarantee time is 5 years from B/L date. If any component is damaged
during guarantee time, we can send the component to the customer
by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install,
commission and training freely. The customer provide the double trip tickets,
food and accommodation for our engineer.
The customer also can send the engineer to our factory to learn the operation
and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need
operation help, can contact us by MSN, Skype, Email and Telephone at any time,
we provide 24 hours on-line service.
worktable of CNC V cutting machine / CNC sheet V grooing machine
