Ball Screw / Round Bar Straightening Press Machine 80T 4m Workpiece

Ball Screw / Round Bar Straightening Press Machine 80T 4m Workpiece

  • High Light

    Round Bar Straightening Press Machine


    80T Straightening Press Machine


    Ball Screw Straightening Press Machine

  • Structure
    Single Column Type
  • Name
    Straightening Press
  • Working Prssure
  • Application
    Straightening The Ball Screw And Linear Way
  • Drive Type
    Electrical And Hydraulic Drive
  • Feature
    Automatic Control Pressure And Bending Stroke
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: 40'GPx2
  • Delivery Time
    60 days

Ball Screw / Round Bar Straightening Press Machine 80T 4m Workpiece


Ball Screw/round bar Straightening Press Machine 80T Capacity Press 4m Length Worpiece
supply Hydraulic press machine,hydraulic press, straightening machine,bending machine


C type press machine Characteristic:

This series of hydraulic straightening machines are mainly used for the calibration, press-fit,

molding of related parts, falling parts, imprinting and other process uses for shaft and sleeve

The structural bed is welded by steel plates. High commutation sensitivity, no contact and free

travel, accuracy can be corrected to three wire, especially suitable for the roller, connecting rod

and various specifications of I-beam, channel steel, round material of textile industry The angle

and the steel are corrected, and the pressure and stroke can be adjusted and controlled, and

the operation is simple.

Y41 series single-column calibration press hydraulic press is a multi-functional small and

medium-sized hydraulic press. It is suitable for the calibration of shaft parts and profiles and

the press-fit of bushing parts. At the same time, it can also complete the bending, stamping, nesting,

stretching of simple parts and other process actions, and can also be used to suppress powder

and plastic products that are not very strict. Y41 series products are suitable for use in machine tools,

internal combustion engines, textile machinery, shafts, bearings, washing machines, automobile

motors, air-conditioning televisions, electrical appliances, military enterprises, and assembly lines of

foreign-funded enterprises. Our factory has strong technical strength, and various requirements

of users (such as technical parameters, specifications, tonnage, etc.) can be satisfied.

straightening press machine troduction:
 table surface precision digital display digital moving table straightening machine Large

shaft type screw straightening intelligent hydraulic.

100 ton rack digital straightening machine linear guide (slide) screw hydraulic straightening machine.

Through the computer programming system, the machine can accurately set the indenter stroke,

effectively control the pressing distance, overcome the phenomenon of repeated straightening and

straightening of the ordinary straightening machine, and effectively improve the working efficiency

and straightening accuracy. The machine tool has independent power mechanism and hydraulic and

electrical system. The working pressure, pressure calibration speed and stroke range can be

adjusted as needed.
the head stroke can be digitally displayed at any time, and the "0" can be set arbitrarily to greatly

improve the work efficiency.
the operation mode can be selected manually and automatically, or can control the straightening

distance by displaying the head stroke in real time in slow state.
The bending of the workpiece straightened by the machine tool is not more than 0.02mm in the

whole length range, and there is no trace of crush on the surface.
In the automatic state, the qualified range of the shaft can be set. If the qualified range is not

reached, the indenter can be automatically straightened until the qualified range is reached,

and the indenter returns to the top dead center.

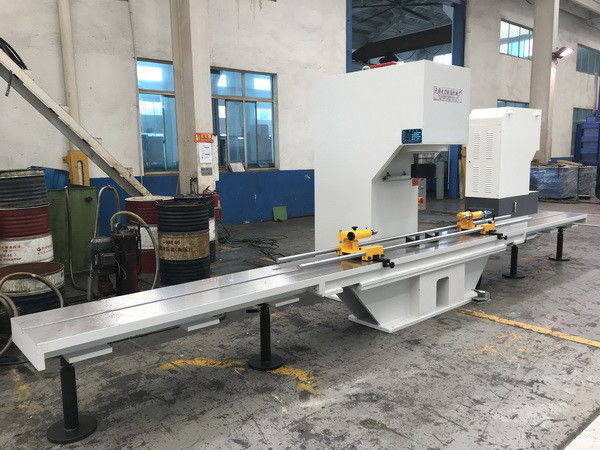

Ball Screw / Round Bar Straightening Press Machine 80T 4m Workpiece 0

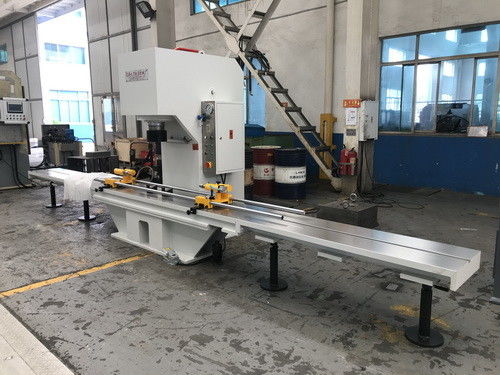

Ball Screw / Round Bar Straightening Press Machine 80T 4m Workpiece 1

63T hydraulic press Machine paramter:

working pressure:  100T

hydraulic system pressure: 25.8Mpa

Min. distance between the shaft head and worktable:200mm

the speed of the spindler:90mm

the Max.stroke of the piston rod:300mm

throat depth:300mm

worktable size:2000X500mm

height of the table to the floor: 710mm

main motor power: 11kw

overall dimension: 2000X1400X2700mm

weight: 6800kg

1. Our guarantee time is 13 months from shipment date. If any component is damaged during
guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training
freely. The customer provide the double trip tickets, food and accommodation for our engineer.
The customer can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help,
can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line


over length worktable 4M hydraulic press machine

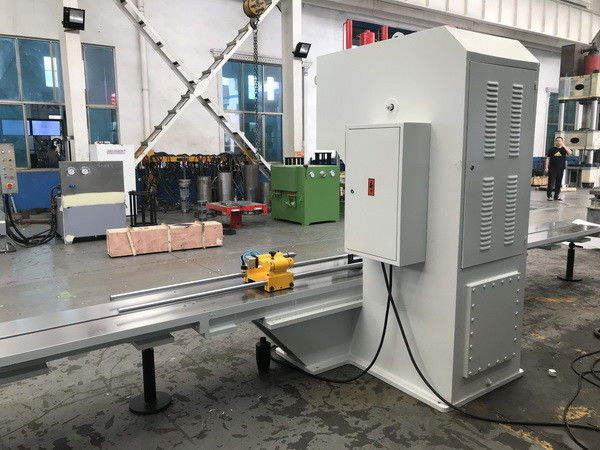

 Ball Screw / Round Bar Straightening Press Machine 80T 4m Workpiece 2
More information please contact us:
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039
Machine picture:
 Ball Screw / Round Bar Straightening Press Machine 80T 4m Workpiece 3
