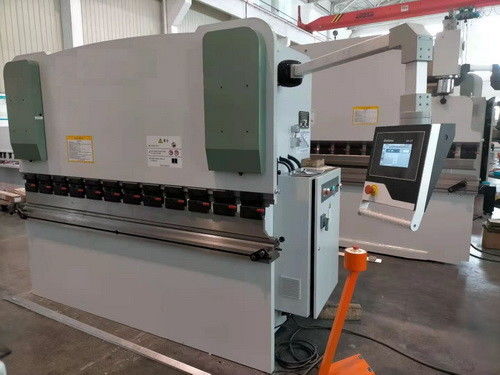

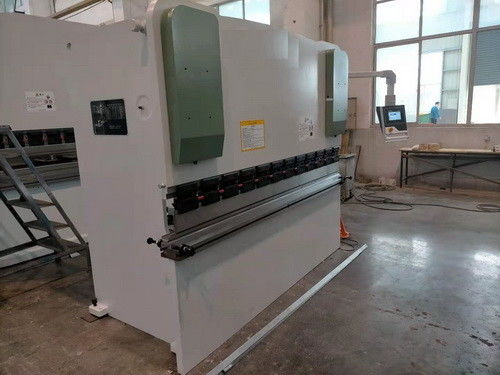

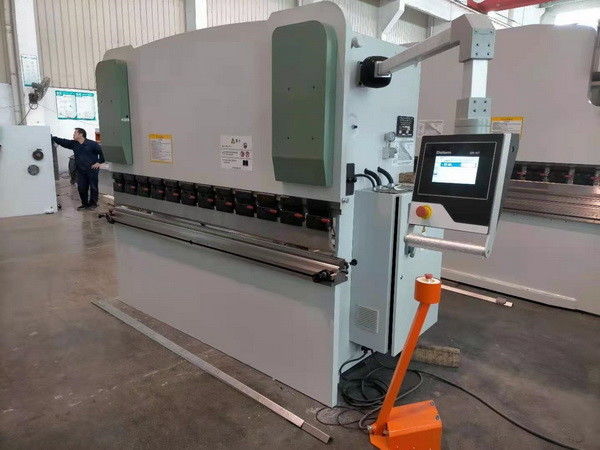

Steel Metal Bending Profile Steel 40T Cnc Press Brake Bending Machine With DA41T System

Steel Metal Bending Profile Steel 40T Cnc Press Brake Bending Machine With DA41T System

  • High Light

    CE Cnc Press Brake Bending Machine

    ,

    40T Cnc Press Brake Bending Machine

    ,

    cnc hydraulic press brake bending machine

  • Control Panel
    Suspend Type
  • Structure
    Fram Construction
  • Name
    Standard Bending Machine
  • Supply Ability
    50 Sets
  • Punching Material
    80 Steel
  • Model
    WE67K-80X2500
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    CE and ISO
  • Model Number
    WE67K-80/2500
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

Steel Metal Bending Profile Steel 40T Cnc Press Brake Bending Machine With DA41T System

Steel Metal Bending Profile Steel On CNC Press Brake Machine 40T With DA41T System





provide CNC hydraulic press brake,hydraulic dening machine,sheet bending machine and plate press brake





 sheet CNC press brake Machine Feature:



hydraulic press brake bending machine Different CNC controllers of CNC tandem press brake to

make multi-axis controlling are optional.

Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by

precision mechanical nut depth stops built into each cylinder.
Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
Segmented heavy duty 86° offset top punch is segmented for return bend clearance,

complete with European style quick release punch holder with an adjustable wedge

clamping system for crowning.
Intermediate clamp has safety key to stop punch dropping.
Multi vee ('V') bottom die is made from one 3200mm solid die block design to handle

heavy plate,

safety edge vee ('V') is incorporated in bottom die block.
Conveniently mounted control box on pendant for quick swivel and adjustments.
Mono-block steel frame design, welded then machined to ensure minimal bed deflection

under load
Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
European quick release style top punch and clamping system, allowing operator to change

position of tooling to suit multiple requirements on complex applications. This feature ensures

minimum down time, more productivity and results in reduced cost per finished product.


More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype:zouqicheng



QQ:2308574039



Specifications of CNC press machine:

Pan making CNC Hydraulic Press Brake

CNC Press Brake, Plate bending Machoine

Pressure 300T working table length: 4500 mm Powe

CNC hydraulic Press Brake

Scope of Supply and Standard feature:

Ultra-Heavy Frame Structure, High rigidity full welded box frame with stress eliminating

 by vibration.

The machine is equipped with reliable hydraulic system. To ensure minimum maintenance,

the integrated Mono-block hydraulic system and worldwide famous valves and seals are

adopted, And the pipeline

and connections are reduced to the minimum level. High efficiency pump with low level sound,

 temperature gauge on oil filter and double-acting cylinders ensure high reliability and safety.

With overload protection.

The electrical components are selected in accordance with DIN or ISO standard, Which

mainly are made by Siemens.

Safety Guard.Professional CNC control system could be equipped, RT200 recommended.



 CNC press brake Imported Charges Or Tax:



Call your Customer.tell them machine HS code.



Spiral duct forming machine is 8455229090



Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling

machine is 8455229090,seam welding machine is 85152900



Automatic back gauge of CNC press brake machine 40T, the back guage is equip the ball screw and linear rail

and Japan servo motor. low nose and fast moving speed feature on the CNC press brake machienry



Steel Metal Bending Profile Steel 40T Cnc Press Brake Bending Machine With DA41T System 0





hydraulic CNC press machine Optional:

  • sectional tooling with different length may store forming a certian length to bend the
  • closed frame wokpiece.
  • Automatic crowned deflection compensation
  • front pneumatic sheet support
  • two-hand control device
  • light curtain protection or laser protection
  • any tailor made are available on ewqueste.

NC hydraulic press brake Technical Data:



SN

Name

Unit

Value

1

Nominal pressure

KN

400

2

Bending Length

mm

2000

3

Distance Between Column

mm

1600

4

Stroke of ram

mm

200

5

MAX. Opening Height

mm

460

6

Throat Depth

mm

250

7

Worktable Width

mm

300

8

Bending Thickness

mm

3(σ≤450N/M²)

9

Speed

Idle Load

mm /s

1100

10

Work

mm /s

9

11

Return

mm /s

90

12

Main Motor Power

KW

7.5

13

Size(L×W×H)

mm

2370x1895x2480

14

Machine Weight

kg

5200

15



Accuracy



Ram accuracy

mm

≤0.02

Ram Positioning Accuracy

mm

≤0.02

Workpiece Straightness

mm

0.75 / m

Bending Angle Error

<45/m

Grating Resolution

mm

0.005



download brochure here

CNC hydraulic press brake machine.pdf



CNC press brake Machine 40T fast clamping system picture

with mechnical crowned device



Steel Metal Bending Profile Steel 40T Cnc Press Brake Bending Machine With DA41T System 1
