3mm Sheet CNC Mechanical Punching Press Process 40' Container Wall Plate

3mm Sheet CNC Mechanical Punching Press Process 40' Container Wall Plate

  • High Light

    CNC Mechanical Punching Press


    CNC Punching Press 3mm


    Container Wall Plate CNC Punching Press

  • Name
    Mechnical Punch Press
  • Type
    3050B Feeding Punch
  • Bed Structure
    Welded Steel Structure
  • Control Way
    Closed-Loop Control
  • Control System
    SIEMENS System
  • Feeding Range
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and thin film packing
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Min. 1 set

3mm Sheet CNC Mechanical Punching Press Process 40' Container Wall Plate

3mm thickness sheet CNC mechnical Punching Press Machine process 40' container Wall Plate



Introduction of CNC mechnical punching machine Q30B:
The special model for container wall sheet punching machine is Q30B. Its stroke is

3000*1250, standard punching bed is 30T and deep of throat is 1250, the whole panel

can be finished in 10 minutes. It has special software for arranging hole and the hole

which comes out basically

doesn't need adjust. It also can support various software, such as Thai, Coreldraw,

Photoshop, TPS, CAD, etc.it's 95 times/min. You also can choose to use the wireless

remote controller. We also sell the matching equipment for advertising word including

CNC Plasma cutting machine, laser cutting machine, carving machine, laser welding

machine, word bending machine and so on.


Operating responsibility for CNC punching press  :

Enterprise should be based on the law of labor safety and labor safety rules for users

of the device - enterprise personnel, obligation to carry on the following work:
1.1 plan drawn up (mechanical) Settings, mobile, the alteration application, sent
to reduce the Labor standards Supervision, subject to security inspection,guidance.
1.2 operations director: head should be selected with the qualification of homework,
homework and mission of the head is as follows:
A. machinery and safety equipment maintenance;
B. Take the necessary measures when confirm with abnormal;
C. switch key switch key custody;
D. direct guidance and adjust the homework of the mould.
1.3 to prevent the danger: perfect mechanical measures to prevent risk, and then
you can use.
1.4 safety education: for the first time to use the machinery personnel safety
education. In addition, involving change mould and adjust Homework personnel Based on

【 machinery operation personnel safety essential 】To carry on the education
1.5 operation maintenance inspection before: need to work before the inspection
maintenance, is the early detection of outstanding mechanical set For the fault
and abnormal problems; Abnormal remedial has confirmed and the necessary measures
to prevent accidents.
1.6 specific independent maintenance: not less than once a year by specific personnel
legal examination, examination results Required to fix to keep test results and
correct record.
Equipment specification for automtic feeding punching press:

Specification Unit AMD -P10 AMD -P20 AMD -P25 AMD -P30 AMD -P35
Punch Force KN According to the pressure plate processing need
Max.Processing Size mm 1000
Max. sheet Thickness mm 6 6 6 6 6
Max. Loading weight Kg 50 90 105 125 145
Punch Hit HPM 60-300 60-300 60-300 60-300 60-300
Machine Weight T 4 6 7.5 8.5 9.5
Max.Traversing Speed m/min 40 40 40 40 40
Hole Accuracy mm ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
Voltage Rtaing V Customization according to different countries
Power Rating KW 6 7 8.5 8.5 9

Our service:

1 Reply your inquiry in 24 hours.
2 Experienced staffs answer all your questions in time.
3 Customized design is available.
4 Exclusive and unique solution can be provided to our customer by
our professional engineers and staff.
5 Special discount and protection of sales are provided to our distributor.
6 We are professional manufacturer of CNC Punching Machine.
Have a professional design team with more than 10 years design
experience engineers, competitive with good quality
7 As an honest seller, we always use superior raw material, advanced
machines, skilled technicians to ensure our products to be finished
in high quality and stable feature.
8 Prompt delivery, site installation and commissioning.

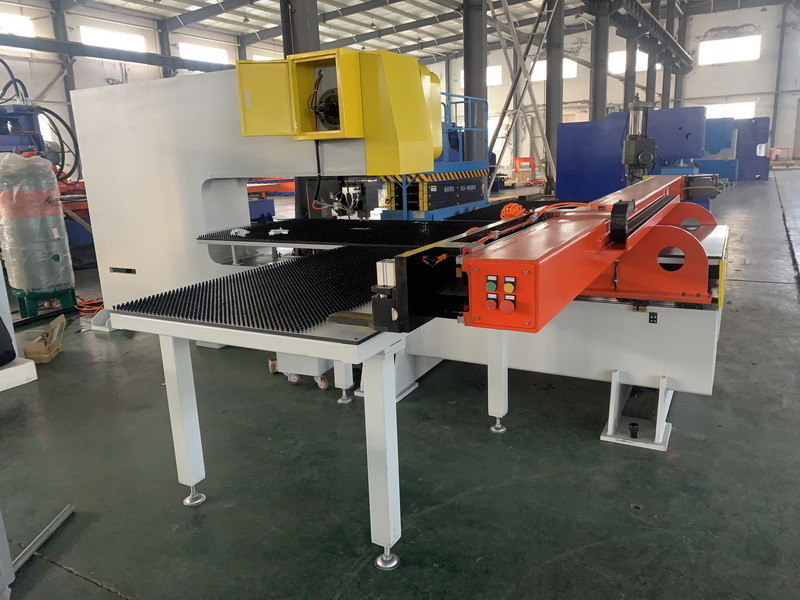

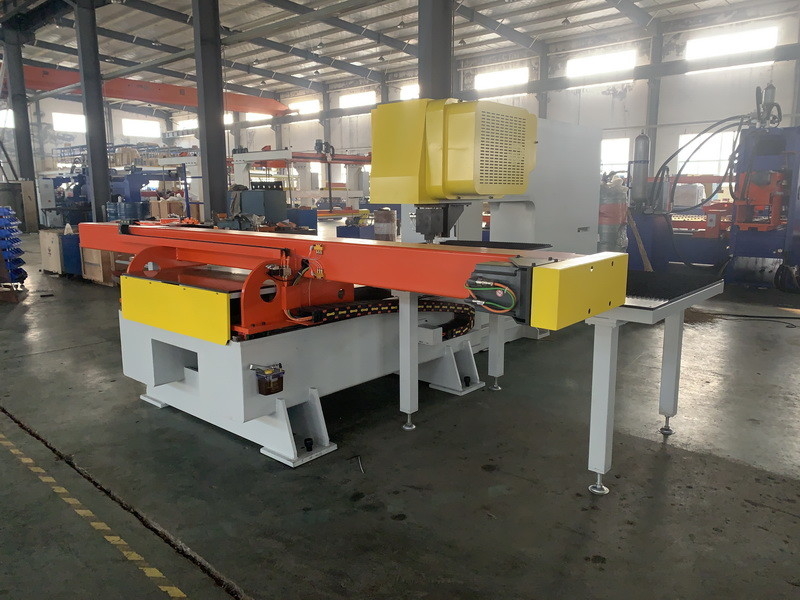

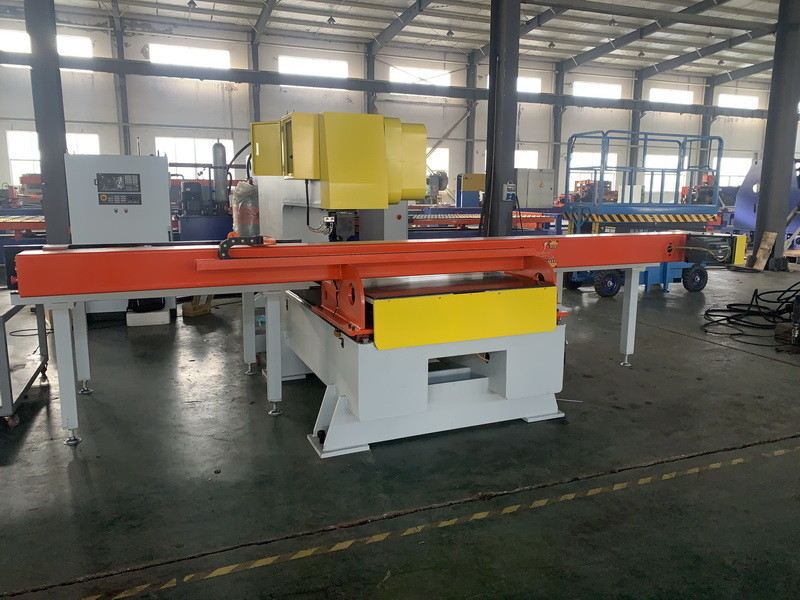

feeding unit photo for CNC Punching press machine Q30B:
 3mm Sheet CNC Mechanical Punching Press Process 40' Container Wall Plate 0
 3mm Sheet CNC Mechanical Punching Press Process 40' Container Wall Plate 1
