What is the press brake machine:
et me provide you with a more detailed overview of press brake machines:
A press brake is a type of metalworking machine tool used to bend sheet metal or other materials.
It consists of a stationary lower die (or bed) and a movable upper die (or ram) that applies force to bend the material
into the desired shape.
Key components of a press brake machine include:
Frame: The heavy-duty frame provides the structural support for the machine.
Ram: The movable upper die that applies the bending force. It is powered by hydraulic, electric, or mechanical means.
Bed: The stationary lower die that supports the workpiece during bending.
Backgauge: Adjustable stops that position the workpiece precisely for each bend.
Tooling: The interchangeable dies or tools that give the desired bend profile.
Controls: The interface for programming and controlling the bending process, often with CNC capabilities.
supply high quality CNC hydraulic press brake and hydraulic bedning machine
FAGO grating scale on the CNC press brake machine:
The Grating ruler is often used in the closed-loop servo system of CNC press brake machine tools, which
can be usedto detect linear displacement or angular displacement. The measured output signal is digital pulse,
which has the characteristics of large detection range, high detection accuracy and fast response.

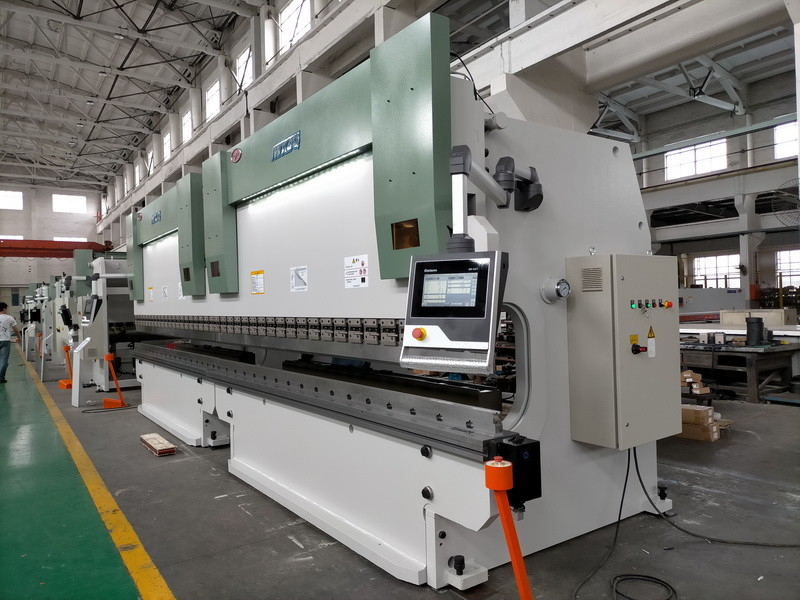

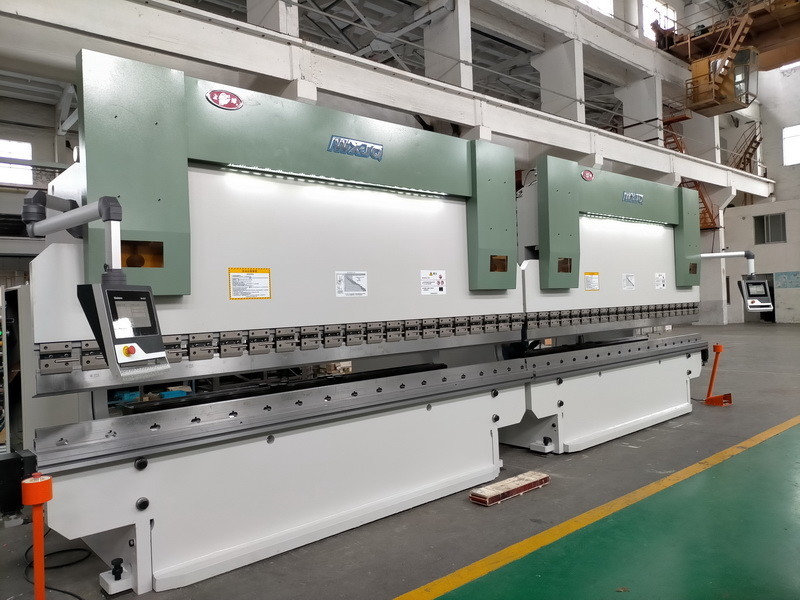

CNC Tandem Press Brake Machine Principle:
Choose two WE67K- series CNC press brake with the same specifications, and configure the dual-machine
linkage synchronization device. The linkage of two machine tools can process extra-long and thick workpieces.
The two machine tools can also be used separately at the same time, improving production efficiency and saving
resources. Equipped with deflection compensation mechanism. The synchronization mechanism adopts mechanical
hydraulic servo and mechanical stop. The stroke of the upper slider and the position of the rear retaining frame are
adjusted quickly by motor. Manual fine adjustment, electronic numerical control display. WE67K- type electro-hydraulic
servo CNC bending machine can be linked by multiple machines. Double-machine linkage bending machine is mainly
used for the interactive use of long and thick plates and long and short workpieces. Compared with a single machine
with the same pressure, it has obvious price advantage under the same configuration, which can save the use cost
for customers.
CNC press bake machine toolTechnical Data
| No. | Name | Data | Unit |
| 1 | Nominal pressure of CNC press brake | 2500 | KN |
| 2 | Length of worktable | 4000 | Mm |
| ·3 | Stroke of Ram | 250 | Mm |
| 4 | Max. Open Height | 500 | Mm |
| 5 | Throat Depth | 430 | Mm |
| 6 | Distance between Housing | 3100 | Mm |
| 7 | Axis controlled | Y1,Y2, X and V | |
| 8 | Back gauge’s stroke | 600 | Mm |
| 9 | Overall Dimensions (LxWxH) | 4080x2050x2915 | Mm |
|
10 |
Downward speed | 100 | Mm/s |
|
Working speed |
10 | Mm/s | |
|
Returning speed |
90 | Mm/s | |
| 11 | Power of Motor | 11 | KW |
| 12 | Weight | 14300 | kg |
| 13 | Front support arms | 2 | piece |
CNC plate Sheet bending machine Characteristics
the Synchro Press Brake Machine use state-of- the-art hydraulics (Bosch-Rexroth or
Hoerbiger) and electronics (Telemecanique, Merlin Gerin Legrand, Siemens) to
ensure accurate control of the bending process. The Press Brake Frame is a robust
welded mono-block steel construction, stress relieved after welding and machined
without repositioning to guarantee machine precision, all-in-all, ensuring minimum
deflection during bending
operation. Pistons are steel forgings, precision ground and micropolished for long
production life. The Synchronised Press Brake is a downstroking twin cylinder
hydraulic press brake (Y1 – Y2 Axis) and includes the following:
Major Elements for CNC tandem press brake :
1. CE Conformity including AKAS Light guards
2. Beam Synchronization via linear scales and proportional valves
3. Delem Angle Programming Control or ESA system
4. Y1 + Y2 + X axis as standard, auto indexing of axis at start-up
5. Uropean (System) Top and Bottom Tool Clamping
6. Hardened Gooseneck Top Tool and 4-V-die Bottom Tool
7. Servo motor driven back gauge on ball screws (=X-axis)
8. Crowning Table / Top clamping with anti deflection wedges
8. Side and rear safety guards and safety interlock switches
Optional equipment for 100t CNC hydraulic press brake:
1. Control of additional axis like X1, X2, R1, R2, Z1 and Z2
2. Delem 65, 66, 69 and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system
Enclosed Accessory for press brake machine:
Upper Punching And Bottom Die for hydraulic press brake:
Servo Press Brakes = Energy Savings= CNC hydraulic press brake machine
Electric Hydraulic Press Brakes
5 to 14+ Axis CNC • 110, 150, 195 Tonnages • 8' to 10' Bending Lengths
Our Servo Hydraulic Press Brakes are powerful efficient metal benders with up to 66% lower power consumption
during stand by and 44% lower energy use during the bending cycle. Ram movement on our servo brakes is
powered by AC Servo "electric" motors driving hydraulic oil "on demand" in line with variable speed pumps.
Our servo press brake achieves a significantly lower cost per part by using our highly sophisticated advanced
technology that synchronizes the powerful forces of electronics, electric power and hydraulics only when it's needed.
You won't find a quieter, more energy efficient or more accurate press brake anywhere.
download brochure here
CNC hydraulic press brake machine.pdf

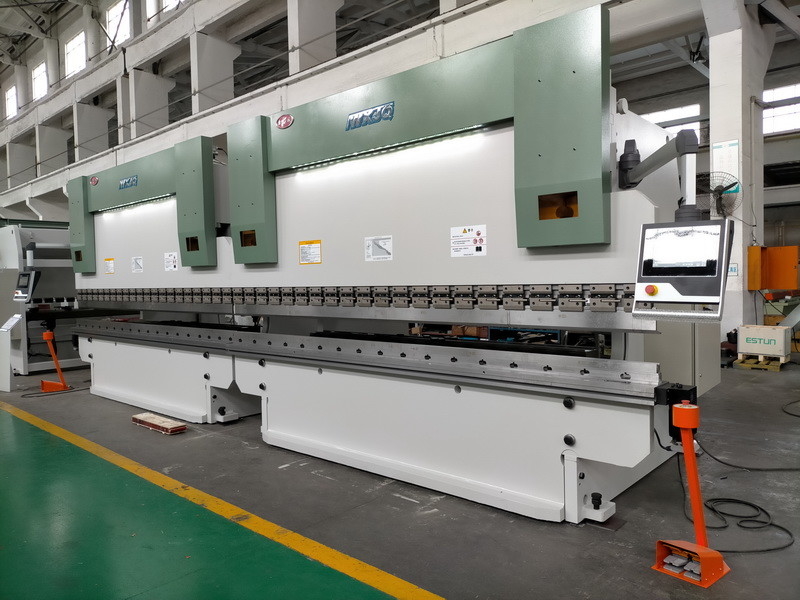

picture for CNC hydraulic press brake :
