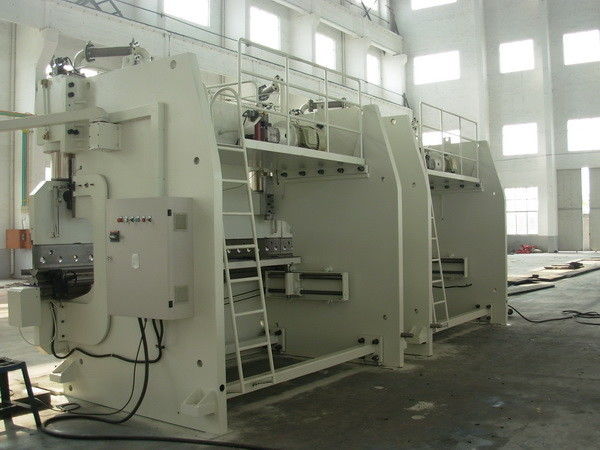

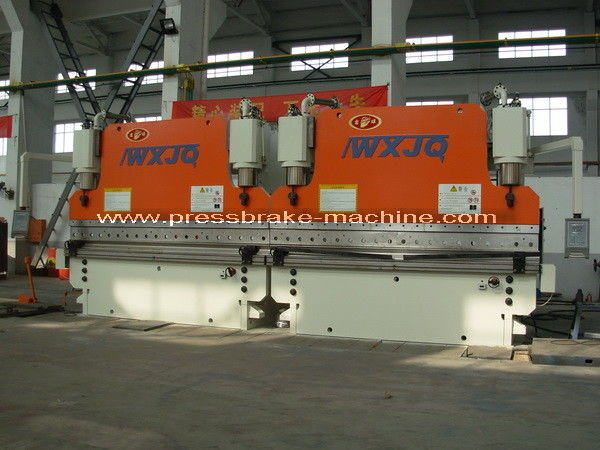

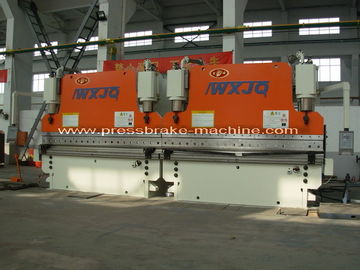

Standard Industrial bending Machinery Sheet Metal tandem Press brake WE67K-400T/4000

Standard Industrial bending Machinery Sheet Metal tandem Press brake WE67K-400T/4000​

import second press brake machine,Multi function plate CNC tandem press brake machine

Performance Charateristics for electric press brake:

• intergral welding structure to get high rigidity
• Control axis standard (Y1,Y2,Y3,Y4,X andV)
• Italy ESA or Netherlands DELEM system
• Germany rexroth valve or holland servo manifolds
• Germany HEIDENHAIN grating ruler
• hydraulic pump from NACHI Japan or BOSH Germany
• seals in hydraulic cylinder from NOK Japan or SKF from Austria
• back gauge use ball screw and servo motor drive
• equip standard upperp unching and bottom die
• equip two sets front support arms

  Specification of sheet metal press brake:



Description of sheet press forming :

the CNC press brake machine consists of two horizontal intergral welding frames and intermediate
two connecting beams.
the foure cylinder are arranged on the wallboard, and rigid connected with block.
the worktable is composed of four U adjustable wedge block, which connected with
four wall boeards the whole ram, worktable and assembled frame consist of one load
uniformly distributedhigh precision requirements of the foure cylinder synchronous
CNC bending machine.
the double linkage consistes of two single machine tools and linkage block by CNC,
which can be single or double operation.
the fram has the characteristic of good rigidity, high processing precision,
good manufacturability,convenient installation and transportation.
ramand worktable are reasonable and uniform load
ram and oil cylinder connected rigidly, guaranteeing the ram's sychronization accuracy
in fast down,work and return state.
due to the grating ruler feedback and synchronization valve control, the machine tool
has strong anti-side load capability.
due to the adoption of CNC synchronous cards, it ensure double linkage synchronous
precision by the grating ruler's synchronous feedback.


Shipping Documents of CNC tandem press brake :

1. Operation Manual(hydraulic diagram,electro diagram)
2. Foundation Drawings
3. Quality Certification
4. Packing list/Invoice
5. Original Certificates(If Custmer Required)
6. Original Bill Of Lading


Warranty:

1. Our guarantee time is 13 months from shipment date.  If any component is damaged during
guarantee time, we can send the component to the customer by DHL, TNT freely.
 2. Our factory can send our engineer to the customer’s factory install, commission and training
freely. The customer provide the double trip tickets, food and accommodation for our engineer.
The customer can send the engineer to our factory to learn the operation and maintains freely.
 3. Our factory provide the service for the customer forever,if the customer need operation help,
can contact us by MSN, Skype, Email and Telephone at any time,we provide 24 hours on-line
service.

here is catalog of CNC tandem press brake machine
CNC multi machine tandem hydraulic press brake.pdf


More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039

Economic control system DA-52 for tandem press brake machine:
