Front Feeding 2.5M CNC 1000Ton Tandem Press Brake Tool Bending Guardrail Board

Front Feeding 2.5M CNC 1000Ton Tandem Press Brake Tool Bending Guardrail Board

  • High Light

    bending press brake


    shear press brake

  • Application
    Steel Beam And Auto Chassis
  • Product Name
    Electro Hydraulic Synchronized Tandem Press Mach/servo Drive Press Brakeine
  • Working Mode
    Autotmatic Operating And Manual Operating
  • Bending Thickness
    20mm Mild Steel Sheet
  • Bottom Die Type
    Multi V Opening Bottom Die Or Insert Die
  • Control System
    DA-65W System
  • Voltage
    380V/50HZ Or Customized
  • Transport
    Use The Container And Ship To Transport
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    According to the requirement of order
  • Payment Terms
    T/T or L/C
  • Supply Ability
    2 sets per month

Front Feeding 2.5M CNC 1000Ton Tandem Press Brake Tool Bending Guardrail Board

Front Feeding 2.5M CNC 1000Ton Tandem Press Brake Tool Bending Guardrail Board


hydraulic servo press brake machine,plate bending machine , CNC hydraulic tandem press brake


Tandem CNC sheet press brake machine Specification

Technical parameter


Electro Hydraulic Synchro CNC Tandem  press brake

Working force


Length of table


distance between frames


Throat depth


Open height










Main motor


CNC control system

Type:  DA-65W Delem Co., Netherlands

control Axis:Y1,Y2 and V


With 1 punching and 1 bottom die

Main Electric Elements

Schneider and DELEM

Seal in the cylinders

NOK, Made in Japan

Main element of machine

Linear scale:  Heidenhain   Germany

Hydraulic pump:  NACHI    Japan

Hydraulic block:  Bosh- Rexyoth  , Germany

Gross weight


Packing size(mm) LxWxH


Packing& container

With plastic cover

The machine should be disassembled for transportation.

Transportation Containers:

2x40’HQ , 4x40’ FR, 20'OTx2


oil line hydraulic bending machie sales ervice

1. the tandem CNC press brake machine have to disassemble for transport, we will sned the engineer

to install,test and train the machines at user. the user must bear all installation and training


2. the user can come to our comapny to learn the assembly technology, we will free instruct

the user to assemble,operate and test.

3. the user can assemble the machine by themselves under factory instruction. we will

provide the technical support to them through email, Skype and telephone.

4.the spare parts will be sent by international carrier when the machine have the problem.


multi-axes CNC tandem press brake Description


samll hydraulic press brake streamlined design,advanced configuration,high precision and high efficiency CNC

bendign machinethe Tandem press brake is used for long-length workpiece.
Single and linkage action are available.
Torque synchronization, electrical and hydraulic synchronization are guaranteed.
Different CNC controllers to make multi-axis controlling are optional.

Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled

by precision mechanical nut depth stops built into each cylinder.
Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
Segmented heavy duty 86° offset top punch is segmented for return bend clearance,

complete with European style quick release punch holder with an adjustable wedge

clamping system for crowning.
Intermediate clamp has safety key to stop punch dropping.
Multi vee ('V') bottom die is made from one 6000mm solid die block design to handle

heavy plate, safety edge vee ('V') is incorporated in bottom die block.
Conveniently mounted control box on pendant for quick swivel and adjustments.
Mono-block steel frame design, welded then machined to ensure minimal bed deflection

under load Enclosed rear gate with micro safety switches complete with sliding rear door

for easy access.European quick release style top punch and clamping system, allowing

operator to change position of tooling to suit multiple requirements on complex


This feature ensures minimum down time, more productivity and results in reduced

cost perfinished product.Sliding steel fabricated sheet supports enabling a wide range

of material sizes to be aligned and supported at the correct required height. This feature

is achieved with a "T" slot machined down the total length of the die bed, sheet supports

are alsoadjustable vertically to assist in supporting material with return bends already folded.

Product features for press brake CNC

  • the CNC sheet press brake machines use use two or three machines to work together
  •  by CNC control system.
  • equip duplek linked or multiple synchronous device.
  • the linked press braked can produce unususlly long workpiece.
  • especially suitable for city building ,expressway,lamp poles, automobile beams and Ect.
  • the double liked press brake can be sued alone, in order to raise production efficiency.

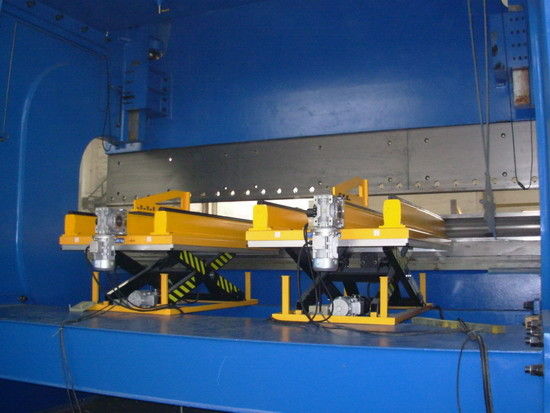

  • the lined press brake equip the front and rear feeding device and side discharg device.
  • the linked press brake machine can equip the insert bottom die and multi vee bottom die.

Safety conditions of shear press brake


1. This machine must be supervised only by authorized personal. The operator should be

familiar with the operation procedure and safety precautions before working.

2. Make sure to check the electrical system and hydraulic system carefully before working.

3. Never put your body into the die area, and keep the die area empty when the machine

is power on.

4. Strictly prohibited to disassemble the hydraulic system when the machine is running.

5. When checking the hydraulic system, you should stop the machine. You just only can

disassemble the cylinder, valves and oil pipes after the ram stopped at bottom dead point

or supported by a square woods on the worktable.

6.Never open the electrical box and touch the naked wire when the machine is running.

7.Put on the working clothes before operating the machine, and work carefully.Not allow

chatting when working.

8. Never adjust the high pressure over-flow valve when the machine is running.


here is a catalog of CNC tandem press brake machine

CNC multi machine tandem hydraulic press brake.pdf

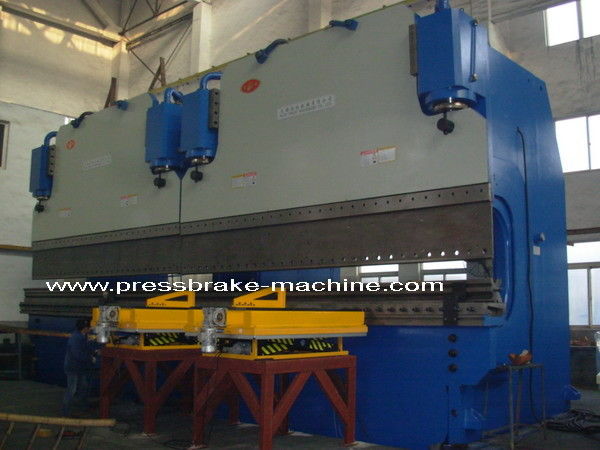

 CNC sheet tandem press brake unit Machine photo


Front Feeding 2.5M CNC 1000Ton Tandem Press Brake Tool Bending Guardrail Board 0

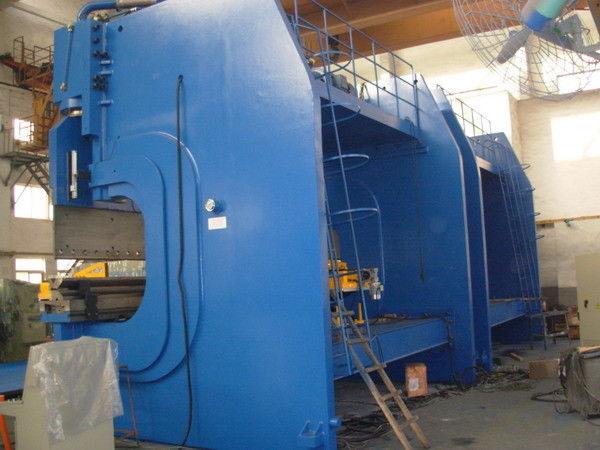

600Tons CNC tandem press brake machine photo:

Front Feeding 2.5M CNC 1000Ton Tandem Press Brake Tool Bending Guardrail Board 1
