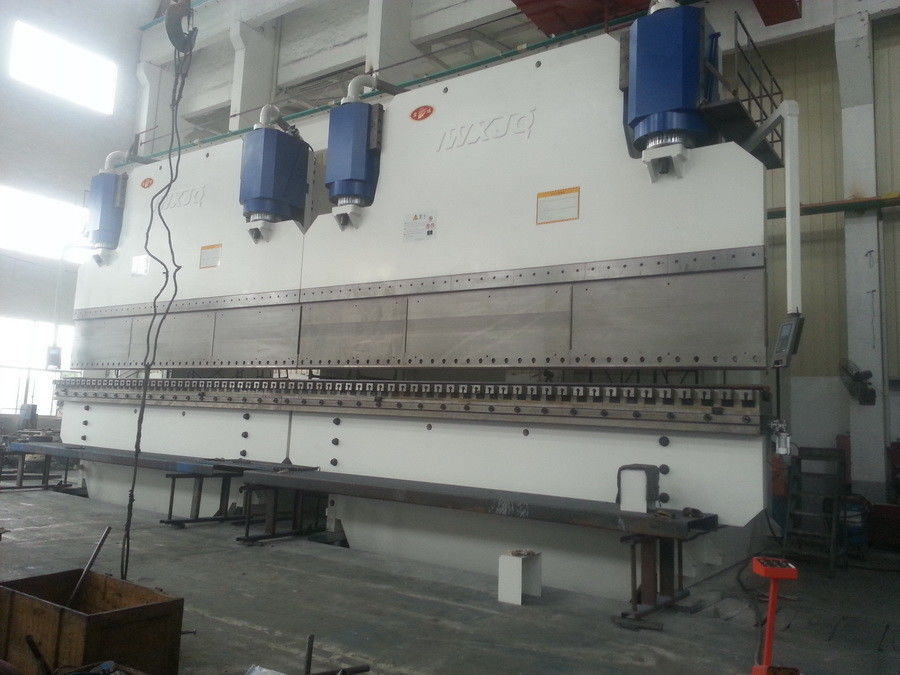

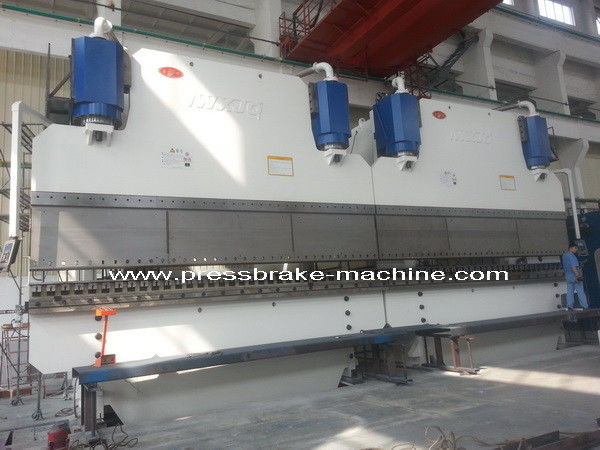

Hydraulic Tandem Press Brake Machine 380V 50HZ For High Hardness Steel

Hydraulic Tandem Press Brake Machine 380V 50HZ For High Hardness Steel



conventional mechnical press brke machine, CNC hydraulic sheet bend ing machine



Products range of press brake bending :

For hydraulic tandem press brake (CNC, NC, conventional), bending pressure from 40 ton

to 6500 ton.
Bending length for single machine is from 1250mm to 13800mm.
press brake WE67K-6500/13800 (6500Ton, 13800mm bending length) is the biggest

press brake ever made in the world.

For hydraulic shear (CNC, NC, conventional), shearing length from 2000mm to 16000mm.
Shearing thickness is from 4mm to 40mm.
we have made the biggest shearing machine 13mmX16000mm in the world.

For cut to length line: thickness range from 3mm to 25mm, coil weight max. 32Ton,

width 2250mm.

we also make turret punch, Laser cutting machine, power press, hydraulic press,

fine blanking press, ironworker, notching machine, ship frame bender, press brake

tooling and shear blades.



Technology electric press brake:
The machine is made under ISO9001 terms, CAD/CAE/CAM/CAPP is adopted in design

& manufacturing by using EDS-UG software from USA. The machines is made under

advance technology. we have established long-term cooperative relations with JIangnan

university, Najing university of Aeronautics and Astronautics,Jiangsu University, and

aslo has set up long term stable cooperative relationship with the world's leading

multinational companies.



Market shares of tandem press mchine line:

 More than 16,000 sets of press brake and shear have been sold for customers in

all kinds of industry all around the world.
During the past decades, we keeps holding the biggest exporter for metal-forming

machines during all Chinese manufacturers.
we have more than 70% market shares for big press brake, tandem press brake

and big shearing machine in China. In China market, we use JINQIU brand.

For lighting pole/high mast/electricity pole/steel tower industry, there are more than

200 pole producer, among which 70% customers use JINQIU machines.  we could

supply you the full production line for pole plant: cut to length line-plasma/flame

cutting machine/tandem press brake/automatic pole welding machine/ pole

straightening press, pole head bender etc.

Many famours manufacturer for oil pipe/gas pipe/water pipe/construction pipe

choose JINQIU

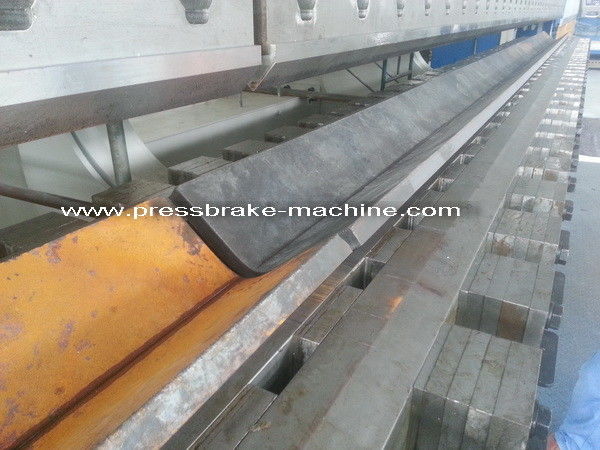

CNC hyraulic press brake use 20mm sheet bend 90 degree workpiece on the multi vee bottom die:



Specification of sheet metal press forming:



Technical parameter
Type		Electro Hydraulic Synchro CNC Tandem  press brake
Working force		2X1600Ton
Length of table		2X6000mm
distance between frames		4800mm
Throat depth		1100mm
Open height		1250mm
Working Speed	Unload	70mm/s
	Working	6.5mm/s
	Return	55mm/s
Main motor		55Kwx4
CNC control system		Type:  DA-65W Delem Co., Netherlands control Axis:Y1,Y2 and V
Tool		With 1 punching and 1 bottom die
Main Electric Elements		Schneider and DELEM
Seal in the cylinders		NOK, Made in Japan
Main element of machine		Linear scale:  Heidenhain   Germany Hydraulic pump:  NACHI    Japan Hydraulic block:  Bosh- Rexyoth  , Germany
Gross weight		2x155000Kg
Packing size(mm) LxWxH		2-6240x8133x7050
Packing& container		With plastic cover The machine should be disassembled for transportation. Transportation Containers: 2x40’OT , 4x40’ FR, 20'OTx2. 1x40'Gp



Product features of press brake equipment:

• equip import control system to control the action
• the machines use two machnes to work together by CNC control system.
• equip electro hydraulic servo valve to ensure synchronous working
• the tandem press braked can bend long workpiece .
• especially suitable for city building ,expressway,lamp poles, automobile beams and Ect.
• the tandem press brake can be sued alone, in order to raise production efficiency.
• the  press brake equip the front and rear feeding device and side discharg device.
• the  press brake machine can equip the insert bottom die and multi vee bottom die.

  catalog of CNC tandem press brake machine

CNC multi machine tandem hydraulic press brake.pdf



More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype:zouqicheng



QQ:2308574039



Warranty period:

• the main frame and cylinder of the machine, warranty period is 5 years.
• all the components, warranty period is 13months after shipment date.
• Promt service on line is always availab
