125 Ton Electro CNC Hydraulic Press Brake Machinery Delem Control
sell CNC hydraulic press brake machine, hydraulic bending machine and hydraulic guillotien shear
CNC press brake machine tool Product Introduction:
1. the machine consist of table, housings and oil tank through screw connecting.
2. equipped with Delem control system,raster display, hydraulic valve,servomotor
are all importing products.
3. Adopting reliable electro-hydraulic proportional synchronization servo and its
parallelism precision could reach 0.02mm, it can support eccentrical load.
4. Ram stroke (Y1,Y2)and back gauge (X,R,Z) are controlled by controller
5. back gauge is adopted ball screw and rolling guide way, the repeat positioning
precision of X is very high and action smartly.
hardox 450 steel CNC press brake machie Product Character:
Standard four axis
whole welded structure
CNC system control anti-cambering deuce
swiss CYBELEC control system or DELEM control sytem
seal in cylinder from NOK Japan
gear pump from NACHI Japan
ball screw adopt Taiwang HIWIN ball screw
Standard upper&botton tool
Option:CYBELEC DNC880 controller or DELEM DA-65W system
CYBELEC MODEVA controller
X1,X2 axis,R1,R2 axis,Z1/Z2 axis
3.200m length CNC sheet press nrake machine Application:
Hydraulic press brake is a steel sheet bending machine, it is composed by supporting
frame, worktable and pressing board. The main frame is processed by annealing art,
long time using,there is no shape changing, keep high bending precision. Bending die
is processed by special art, keet long using life.
Hydraulic press brake also named CNC press brake, CNC steel sheet bending machine,
electrohydraulic synchronized CNC press brake, NC steel sheet bending machine.
Which is mainly used for steel sheet bending or stainless bending. Mainly in steel
metal processing industry. Like cabinet processing, decoration, electrical lift surface
wrapping, and other steel metal or stainless board processing industry.
hydraulic CNC synchron press brake machineTechnical Data:
Type | Hydraulic CNC electro-hydraulic synchro |
Working force | 125 T |
Length of table | 3200 mm |
distance between frames | 2650 mm |
Throat depth | 320 mm |
Open height | 475 mm |
Stroke | 200 mm |
Strokes | 8 /min-1 |
Main motor | 7.5kw |
CNC system | Type: DA- 65 Delem Co., Netherlands |
Tool | With 1 punching and 1 bottom die |
Main Electric Elements in cabinet | Schneider or Siemens |
Seal in the cylinders | NOK, Japan |
Gross weight | 8700 kg |
Overall sizes(mm) LxWxH | 3450x 1955x2565 |
Packing: | With plastic cover |
Delivery date | 30days after sing the contract |
single V bottom die CNC hydraulic metal press brake
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype:zouqicheng
QQ:2308574039
download brochure here
CNC hydraulic press brake machine.pdf

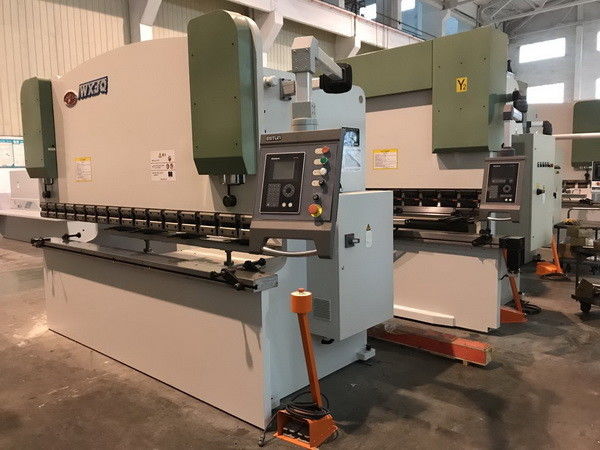

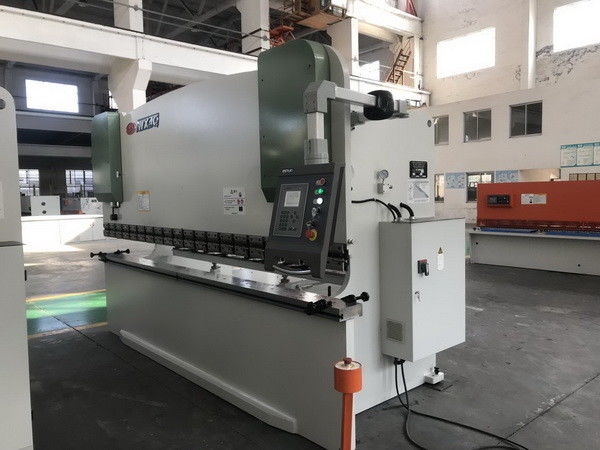

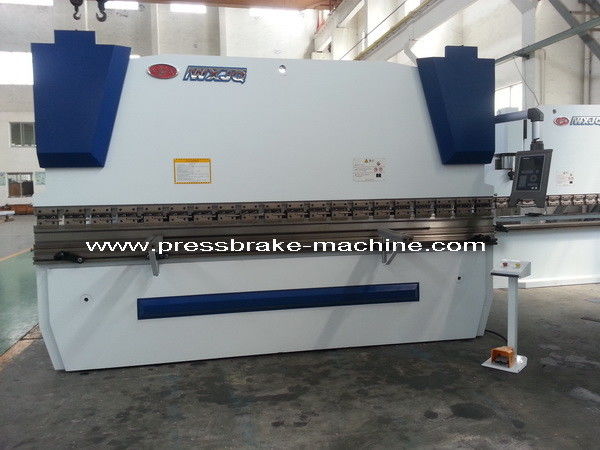

125T CNC hydraulic bending Machine picture:
Our products are sold all over the world, you can rest assured.
