100 Ton CNC Hydraulic Press Brake Bending Plate Steel Big Capacity

100 Ton CNC Hydraulic Press Brake Bending Plate Steel Big Capacity



wholesale CNC hydraulic press brake machine, mechnical press brake and plate bending machine



Standard Configuration:

Netherlands DELEM DA-52S CNC system.

The numerical control system for Y1-Y2-X-V (3 +1) axis.

Whole welded structure.

Dual cylinder connecting slider directly to control its up and down running.

Italian ATOS high performance electrohydraulic proportional servo

synchronization control hydraulic system.

Optional Germany ELGO / Turkey OPKON high precision magnetic

grid scale (Y1-Y2-axis).

Japan PANASONIC / YASKAWA high-performance AC servo motor and

drive (X-axis).

It controls the worktable hydraulic crowning compensation

(if more than 300 tons , we choose workbench deflection compensation system).

Japan NACHI / YUKEN high performance gear pumps.

Sweden SKF / Japan NOK original imported master cylinder seals.

Germany EMB / JS sleeve type pipe joints.

Taiwan HIWIN / PMI-AMT backgauge linear guides and ball screw.

Mechanical Petiole wedge block partial compensation mechanism.

Move manually double linear guide backgauge retaining fingers.

Germany SCHNEIDER / Japan IDEC key electrical components.

Standard combined upper and lower mold.

With the back door curtain.

Double linear guide and front support device.



More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype:zouqicheng



QQ:2308574039





Attachment with the machine:



No.	First 01 years spares	Remark
1	Grease gun	Free of charge
2	Keys to button lock and electric cabinet lock	Free of charge
3	Foundation bolts	Free of charge
4	Anchor bolt	Free of Charge
6	O-type sealing rings	Free of charge
7	Combined washers	Free of charge
8	Mobile type foot switch
9	Operation & maintenance manual	In English
10	Electrical diagram	In English
11	Operation Instruction(Electronic) Operation Instruction(Machine) Paking list Instruction of System	Free of Charge





Products Information:



Steel welded structure, vibrating treatment to remove the inter stress, with high strength

andgood rigidity

Hydraulic top-drive,steadiness and reliability, mechanical stop,steel torsion bar to

maintain synchronization

Motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel,

numerical display

Using travel limit protection, full machine guarding with safety interlocker

Two or more cylinders controlling beams vertical moving

 Using mechanical torsion synchronization

Using Integration hydraulic system



Optional:

• sectional tooling with different length may store forming a certian length to bend the
• closed frame wokpiece.
• Automatic crowned deflection compensation
• front pneumatic sheet support
• two-hand control device
• light curtain protection or laser protection
• any tailor made are available on ewqueste.

Technical Data:

TECHNICAL FEATURES
1	Type	Hydraulic press brake with torsion bar
2	Working force	100T 0
3	Length of table	3200 mm
4	Distance between frames	2650 mm
5	Throat depth	320 mm
6	Open height	365 mm
7	Stroke	100mm
8	Speed	Fast down: 60mm/s Working speed: 8mm/s Return speed: 50 mm/s
9	Main motor	7.5kw
10	Tool	With 1 punching and 1 bottom die
11	Main Electric Elements in cabinet	Schneider or Siemens
12	Seal in the cylinders	NOK     Japan
13	Gross weight	8900 kg
14	Overall sizes(mm) LxWxH	3470x1725x2330
15	Packing:	With plastic covers Transportation: 40’HQ
16	Delivery date	30 days after sign the contractor
17	guarantee	13months after the shipment date



Service:

1. Service package Basic: we offer you rapid trouble shooting through telephone

support and costs for on-site missions are reduced. Special: Engineers available to

service machinery overseas for the necessary maintenance. Partner: Our located

dealers or customers who sell or use our machines are fully behind you, they are

our friendly partner and supply good advice to you.

2. Technical Service(After-sale service) Installation and start-up(Available for complex

and big machines or if you have demand) 8.  Digital display system display the

working position of  X, Y; 9. Main operation are by the CNC controllers or display system;

Ball screw and line guide rail as optional choices for guarantee the higher precision;





download brochure here

CNC hydraulic press brake machine.pdf

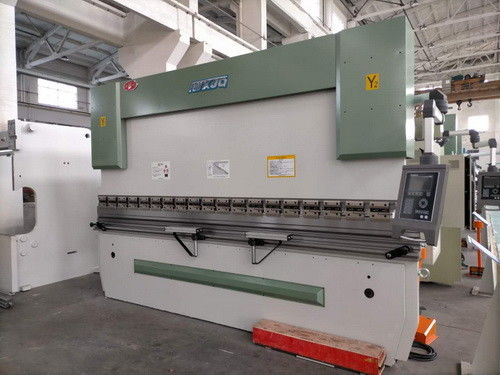

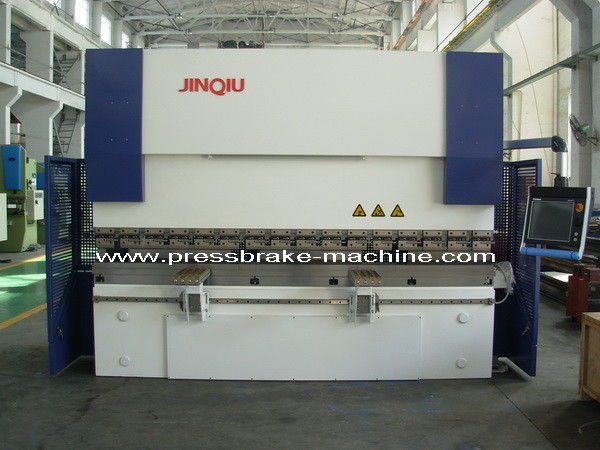

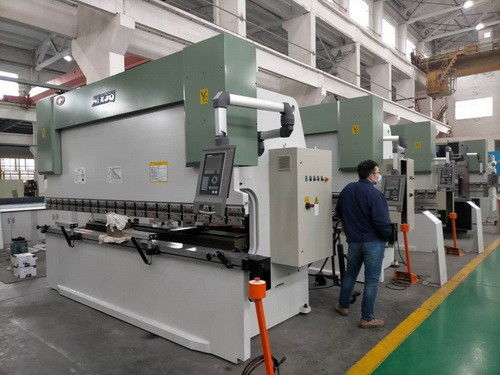

Machine picture:
