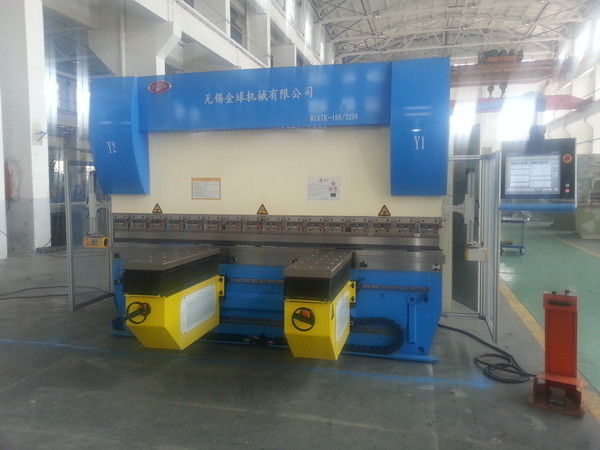

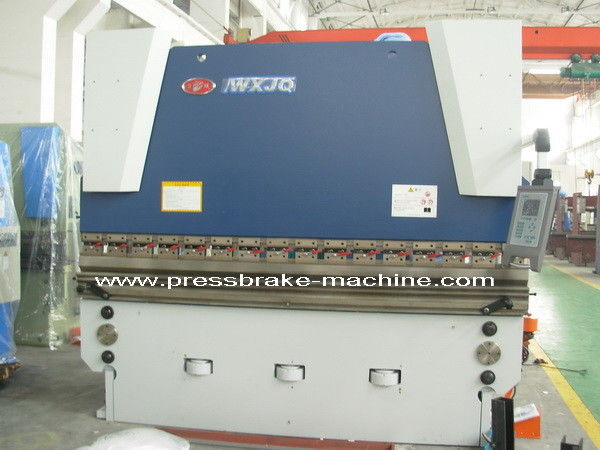

Automatic CNC WC67Y Hydraulic Press Brake 160T Equipment Economic Type

Automatic CNC WC67Y Hydraulic Press Brake 160T Equipment Economic Type

  • High Light

    mechanical press brake


    Steel Plate Bending Machine

  • Name
    Plate Bending Machine
  • Color
    Dark Gray And White
  • Bending Capacity
    8mm Mildsteel And 4 Mm Stainless Steel
  • Compensation
    Thtree Hydraulic Cylinder Compesation
  • Weight
  • Loading Container
    20'OT Contianer Or 40'HQ
  • Place of Origin
  • Brand Name
  • Certification
    CE and ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    nude packing and pallet packing
  • Delivery Time
    30 days

Automatic CNC WC67Y Hydraulic Press Brake 160T Equipment Economic Type

Automatic CNC WC67Y Hydraulic Press Brake 160T Equipment Economic Type


sell second CNC hydraulic press brake machine and sheet shearing machine



Product Feature:

  • Using servo control technology
  • 10" high bright liquid crystal display screen with multi-nation language interface.
  • Die parameter setting, bending angle programming
  • About 100 programs are stored, and there are 25 operations in each program
  • The escaped material is programmable, the processing quantity is accountable,
  • there is memory to power off, and conversion between metric and inches system


More information please contact us:




WhatsApp:+86 13961729519







Our advantage:


The electric-hydraulic servo system, together with the world famous light curtain, ensures

the highest controlling precision, bending accuracy and repositioning accuracy are also

reach the high level.

The hydraulic compensation system helps to prevent the deformed slider from affecting

the quality of the workpiece. The compensation is adjusted automatically by the CNC

system which is convenient and accurate.

The multi-functional backgauge can be extended to 6 axes. The workpiece can be bent

at any angle.

After welding, the frame is processed by CNC pentahedron at one time to ensure the

rigidity and accuracy.

Integrated hydraulic controlling system decreases the pipe connection, oil leakage,

meanwhile, increases the stability and beautifies the machine.

The segmented punches of different length are adopted which can be combined into

a certain length according to the processing demand to meet the different requirement

of special workpiece.

Backgauge is driven by guideway, quick, convenient ad accurate.

The machine can be adopted with auto-clamp devices or quick clamp as an option

according to the customer's requirement to decrease the labors' work intension and

increase the work efficiency.

The most advanced Delem DA52/DA65W/DA66W controlling system, with colorful

TFT screen of high distinguish rate and Chinese/English menu, features with the

latest electric connectin.

After Sales Service:
1. Our engineer is available to your factory and offer installation and training service.
As well, you may send your engineers to our company to learn how to operate machines.
2. we will provide the spare parts free nd technical support when the machien have any
trouble during warranty.
3. we can send the engineer to customer for install and maintenance under custoner
Quality Guarantee:
Since press brake machine reached the agreed destination, its main parts will be

guaranteedwithin one year or 1000 hours (subject to the earlier mature term).

We take charge of all troubles caused by plate rolling machine's fault and repair

according to the regulation
stipulated by original plants. Factors not accordance with the regulation of original

plantssuch as daily consumed components, wrong operating, lack of maintenance

are not included in the quality guarantee.
Technical Parameter:


 CNC electro-hydraulic synchro

Working force


Length of table

3200 mm

distance between frames

2650 mm

Throat depth

320 mm

Open height

500 mm




Idle down






support arm

offer two support arms

Main motor


CNC system

Type: DA- 52s Delem  Co., Netherlands
Control Axis:Y1,Y2,X,R and V
 (crowned compensation)


With 1 punching and 1 bottom die

Main Electric Elements in cabinet

Schneider or Siemens

Seal in the cylinders

NOK, Japan

Gross weight

110000 kg

Overall sizes(mm) LxWxH



Iron pallet With plastic cover

Delivery date

30 days after sing the contract


  • sectional tooling with different length may store forming a certian length to bend
  • the closed frame wokpiece.
  • Automatic crowned deflection compensation
  • automatic front feedning device and rear pushing device
  • two-hand control device
  • light curtain protection or laser protection
  • any tailor made are available on ewqueste.
