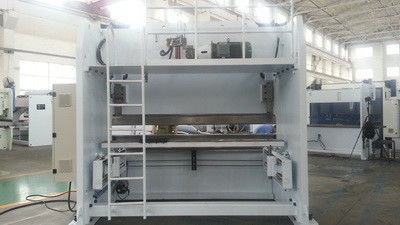

250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine

Certification
China JINQIU MACHINE TOOL COMPANY certification
China JINQIU MACHINE TOOL COMPANY certification
Customer Reviews
we are pleased to cooperate with WUXI JINQIU MACHINE TOOL, their 2-WE67K-500/600 machine quality is better and the after sales service is so nice.

—— Baharain AMA group

we bought a CNC press brake WE67K-500/6000 from WUXI JINQIU MACHINE TOOL to bend the light pole, we are satisfied with their machine and service.

—— America customer

the CNC tandem press brake 2-WE67K-400/7000 bend the better quality lgiht pole, we are so satisfied with their service, perfect working!

—— INDIA SKIPPER STEEL company

I'm Online Chat Now

250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine

250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine
250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine 250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine 250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine

Large Image :  250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine

Product Details:

Place of Origin: China
Brand Name: WXJQ
Certification: CE and ISO
Model Number: WE67K-250/3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: nude packing and pallet packing
Delivery Time: 30 days
Detailed Product Description
Name: Automatic Hydraulic Bending Machine Feature: Save Power And Enviromental Protection
Bending Capacity: 12mm Mild Steel And 8mm Stainless Steel Volum Of Oil Tank: 670L
Delivery: 25days Structure: Fram Weled By Carbon Steel
High Light:

hydraulic plate bending machine

,

Steel Plate Bending Machine

250 Ton CNC Hydraulic Press Brake Machine , Sheet Metal Press Machine



CNC hydraulic press brake machine/CNC press brake,hydraulic sheet metal press brake 200T

Packaging & Delivery for CNC hydraulic press brake

Packaging Details: The CNC press brake machine covered with plastic bag and packed with wooden case and then fastened to the hook of inner container.
We could also package as your requirement.
Delivery Detail:the the sheet press brake will delvier in 20 days after deposit



CNC sheet plate press brakeTechnical Parameter


CNC

Press Brake

model

Nominal pressure

(KN)

Length

of table

(mm)

Distance between housings

(mm)

Throat

depth

(mm)

Stroke

of

ram

(mm)

Strokes

of

ram

(min-1)

Max.

open height

(mm)

Main motor

(KW)

WE67K-100/3200 1000 3200 2650 320 200 ≥8 475 7.5
WE67K-100/4000 1000 4000 3100 320 200 ≥8 475 7.5
WE67K-125/3200 1250 3200 2650 320 200 ≥8 490 7.5
WE67K-125/4000 1250 4000 3100 430 200 ≥8 490 7.5
WE67K-160/3200 1600 3200 2650 320 200 ≥6 540 11
WE67K-160/4000 1600 4000 3100 320 200 ≥6 540 11
WE67K-200/3200 2000 3200 2650 400 200 ≥3 560 15
WE67K-250/3200 2500 3200 2650 400 250 ≥3 560 15
WE67K-250/4000 2500 4000 3100 400 250 ≥3 560 15
WE67K-300/4000 3000 4000 3100 400 250 ≥3 560 22
WE67K-300/6000 3000 6000 4800 400 250 ≥3 560 22
WE67K-400/4000 4000 4000 3100 500 320 ≥2.5 700 30
WE67K-400/6000 4000 6000 4800 500 320 ≥2.5 700 30

press brke machine tool Product character



whole steel-welded,standard upper and lower dies,hydraulic transmission system,

foot pedal with emergency stop. The machine equips with DRO(digital readout)

system to display the values of ram and backguage,(ball screws),and equip the

side and back guard.to equip CNC system,you can choose the system E21

+ CNC(made in China)

or DA-52s,DA-56,DA66T system (from Netherlands),All price include the servo-motor,

To equip with light curtains for rear of press brake,you can choose the system from

China or sick from Germany. All include the servo-motor.

To equip with light curtains for rear of shearing machine,you can use system from

China madeor sick from Germany.



8 feet hydraulic sheet bending machine Feature:

  • It’s very popular in metalworking market for bending metal sheet.
  • Various model of bending 4-40mm thickness and 1000-9000mm length.
  • Steel welded construction, vibrating aging function
  • Servo backgauge and RV working table comensation is optional
  • .Motorized back gauge and cutting number can digital readout ,E10 or CNC100
  • Power break protection device to guarantee safety during maintenance
  • Debug and goodafter-sales service

Option of 160ton press brake:

  • press brake sectional tooling with different length may store forming a certian length to bend
  • the closed frame wokpiece.
  • Automatic crowned deflection compensation
  • automatic front feedning device and rear pushing device
  • two-hand control device
  • light curtain protection or laser protection
  • any tailor made are available on ewqueste.

Quality Guarantee for hydraulic press brake


ordinary press brake machine reached the agreed destination, its main parts will be

guaranteedwithin one year or 1000 hours (subject to the earlier mature term).

We take charge of all troubles caused by plate rolling machine's fault and repair

according to the regulation
stipulated by original plants. Factors not accordance with the regulation of original

plantssuch as daily consumed components, wrong operating, lack of maintenance

are not included in the quality guarantee.


 After Sales Service of LVD sheet press brake:

1. Our press brake engineer is available to your factory and offer installation and training service.
As well, you may send your engineers to our company to learn how to operate machines.
2. we will provide the spare parts free nd technical support when the machien have any
trouble during warranty.
3. we can send the engineer to customer for install and maintenance under custoner
requirement.


Quality Guarantee from CNC hydraulic press brake manufacturer


new type press brake machine reached the agreed destination, its main parts will be

guaranteedwithin one year or 1000 hours (subject to the earlier mature term).

We take charge of all troubles caused by plate rolling machine's fault and repair

according to the regulation
stipulated by original plants. Factors not accordance with the regulation of original

plantssuch as daily consumed components, wrong operating, lack of maintenance

are not included in the quality guarantee.
