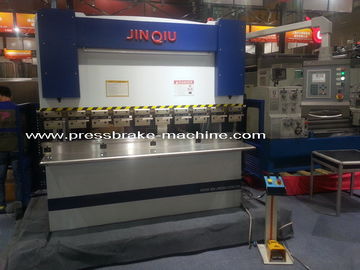

PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake

PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake
PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake

Large Image :  PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake

Product Details:

Place of Origin: China
Brand Name: WXJQ
Certification: ISO9001
Model Number: WC67K-40/2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: iron pallet and wooden case container: ,40'OTx1,40'HQx2
Delivery Time: 30 days
Detailed Product Description
Name: Motor Driven Press Brake Machine Controller: Digital Dispaly
Worktable Length: 2000mm Punching: Cr12 Material
Synchron Mode: Torsion Bar Synchron Hydraulic System: Hydraulic Integrated System
High Light:

electric sheet metal brake

,

nc press brake

PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake



NC sheet metal press brake Description:

Welded steel plate, the frame consists of right and left wall boards,
working table, oil box, slot steel and etc. The stress of the welded parts
can be eliminated by vibration. The machine enjoys high accuracy and high
strength and can be
transported easily.Integrated hydraulic control system is more reliable and
easy for maintenance.
The slide synchro system adopts steel torsion bar synchro system with very

simple structure but very high accuracy. 2 ends of slide has 2 sychnro fork
which make the slides movement is always parallel to the working table.
And this will make the movement effect balanced during operation. The system
uses upper die compensation to improve the brake precision.
The machine is a kind of steel torsion bar sychnro brake, which is the third

generation of brake. Electronic control of back gauge and ram stroke, data
displayed and precision control by man. Hydraulic power cell construction is
convenient to install, which limit the oil route and connector quantity to minimize
integrated hydraulic valve block. Block route and wide range of speed control,
work steadily.
Main components: Schneider electrical components NOK sealing components
Optional accessories: Esturn E10 counter,pendant-control-box German Herbiger

valves or Italy Aron valves Light curtain Ball screw and linear guide of backgauge
Tooling clamping device

40T hydrulic sheet press brake Technical Parameter:

Specification WC67K-40/2000
Norminal pressure 400KN
Length of table 4000mm
Distance between housing 1650mm
Throat depth 200mm
Idle down of ram 65mm/s
Working speed of ram 8mm/s
Return speed of ram 70mm/s
Stroke 190mm
Open Height 340m
Main Motor Power 4KW
Overall dimension 2350×1469×2145mm
Weight 3000kg


Packing And Shipping:
1. the machien adopt iron pallet with plastic cover to pack after the machine is
running and testing for 48 hours.
2. Before loading, stable package, professional and skilled loader reduce
damage of product during transport

Configuration of NC sheet press brake machine:
1. adopt control system DA-41
2. Ram Synchronization via torsin bar and dead stopper block
3.  Angle control by adjsut the stroke of the hydraulic cylinder
4. Y, X axis as standard, auto indexing of axis at start-up
5. uropean (System) Top and Bottom Tool Clamping
6. Hardened Gooseneck Top punchingl and multi V Bottom die
7. Servo motor driven back gauge on ball screws (=X-axis)
8. Crowning Table / Top clamping with anti deflection wedges
8. Side and rear safety guards and safety interlock switches

9. light curtain pretection

PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake 0
Shipping Documents for WC67K-40/2000 press brake tool:

  • Operation Manual(hydraulic diagram,electro diagram)
  • Foundation plans
  • foundation bolts
  • footswitch
  • Oring parts
  • Quality Certification
  • Packing list
  • Colors: According to Customer's requirements

Option of press brake machine:

  • sectional tooling with different length may store forming a certian length to bend
  • Automatic crowned deflection compensation
  • automatic front feedning device and rear pushing device
  • two-hand control device
  • light curtain protection or laser protection
  • any tailor made are available on ewqueste.

After Sales Service:
1. Our guarantee time is 5 years from B/L date.  If any component is damaged
during guarantee time, we can send the component to the customer
by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install,
commission and training freely. The customer provide the double trip tickets,
food and accommodation for our engineer.
The customer also can send the engineer to our factory to learn the operation
and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need
operation help, can contact us by MSN, Skype, Email and Telephone at any time,
we provide 24 hours on-line service.

Dwonload brochure here:
press brake & shear.pdf

More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype: zouqicheng
QQ: 2308574039

back guage of NC press brake machine picture:

PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake 1
PB125T/3200 Model Benidng 3100mm Steel Sheet 400KN Hydraulic Sheet Metal Press Brake 2
