China Press Brake Factory 5mm Aluminum Sheet Press Brake machine Customized

China Press Brake Factory 5mm Aluminum Sheet Press Brake machine Customized

  • High Light

    metal sheet bender machine

    ,

    nc press brake

  • Controller
    ESA System
  • Name
    CNC Synchro Press Brake/sheet Metal Press Brake
  • Worktable Length
    4000mm Long
  • Application
    Matel Cabinet And Steel Channel
  • Material
    Multi Vee Bootm Die
  • Voltage
    380V,220V,415V Or Special Order
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    WE67K-160/4000
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: ,20'OTx1 or 40'HQx1
  • Delivery Time
    30 days

China Press Brake Factory 5mm Aluminum Sheet Press Brake machine Customized

China Press Brake Factory 5mm Aluminum Sheet Press Brake machine Customized



new products- the sheet metal press brake/ plate press brake/ sheet bending machine



Standard 200T metal sheet press brake Configuration

  • Standard two AXes control Y,X
  • Mechncial torque synchronization
  • Domestic famous hydraulic intergrated system
  • Schneider  low voltage electrical
  • Inverter control motor operation
  • Imported seals
  • Ball screw back gauge operation control
  • Standard upper and lower die
  • Front material support arms

2000kN pressure steel press brake machineTechnical Data

No.

Name

Data

Unit

1

Nominal pressure

2000

KN

2

Length of worktable

4000

Mm

·3

Stroke of Ram

200

Mm

4

Max. Open Height

480

Mm

5

Throat Depth

320

Mm

6

Distance between Housing

3100

Mm

7

Axis controlled

Y and X



8

Back gauge’s  stroke

600

Mm

9

Overall Dimensions  (LxWxH)

4080x2050x2880

Mm



10

Downward speed

70

Mm/s

Working  speed

6

Mm/s

Returning  speed

60

Mm/s

11

Power of Motor

15

KW

12

Weight

11600

kg

13

Front support arms

2

piece



large press brake machine Machine Feature

  • Press brake machine is in complete steel-welded structure with sufficient strength and rigidity;
  • Hydraulic top-drive,steady and reliable. Mechanical stop unit,sychronous torque and
  • high prcision; Electric adjustment,manual fine adjustment and digital display for
  • backguage distance and stroke of up ram;
  • Deflection compensation unit installed on the up die in order to guarantee high precision
  • of bending.
  • T-type screw mandrel to control the movement of back guage;
  • Standard connect die and tool(with upper-tilted block compensation unit);
  • It’s very popular in metalworking market for bending metal sheets

Optional equipment

1. Control of additional axis like X1, X2, R1, R2, Z1 and Z2
2. Delem 65, 66, 69 and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system

Enclosed Accessory

  • Front arm support, 3 pieces
  • Anchor bolt, 4 pieces
  • Nut, some pieces
  • Washer, some pieces
  • Oil gun, 1 piece
  • Foot pedal 1 piece

Upper Punching And Bottom Die

  • Standard upper punching, it can section to 500mm length or customized.
  • The edge of the punching is HCR 45-50 after heat treatment
  • use the fast clamping with crowned defection to hold the punching.
  • Multi Vee bottom die to bending different thickness sheet.
  • The bottom die is HB190-260 after heat treatment.

download brochure here

hydraulic press brake.pdf

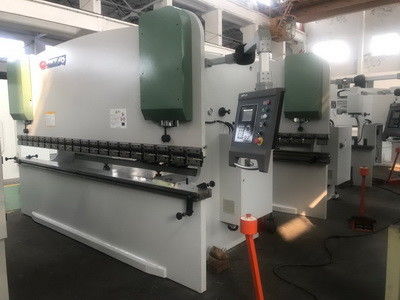

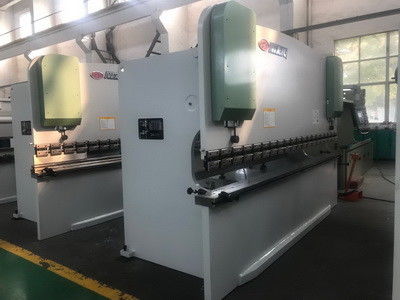

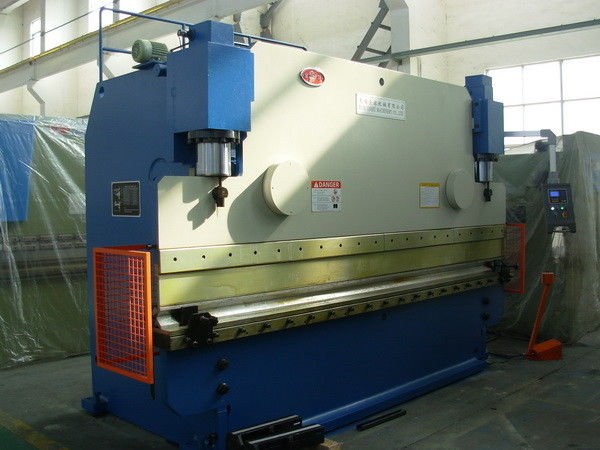

NC press brake Machine picture
