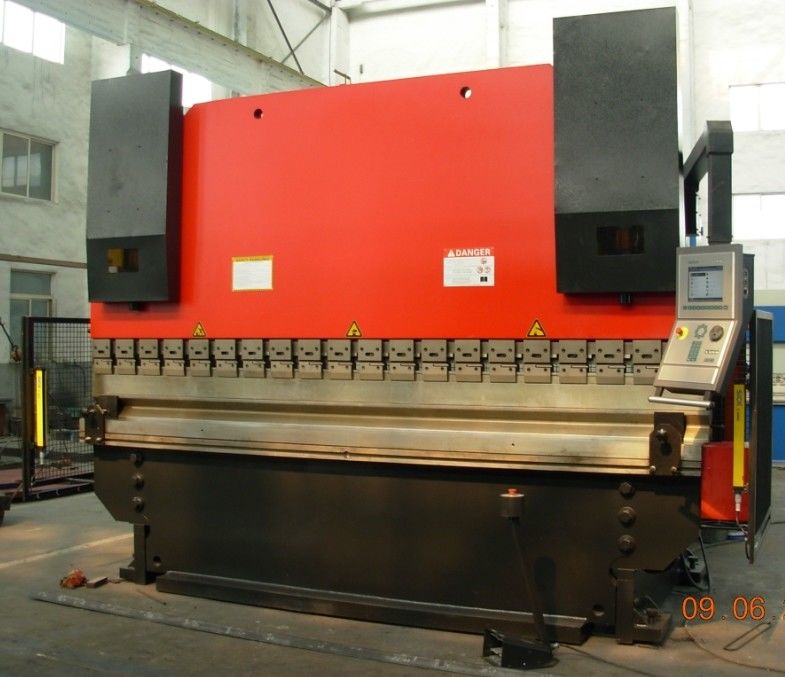

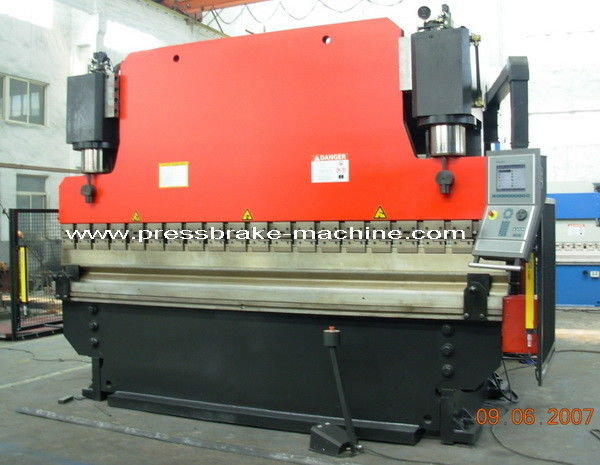

Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine

Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine
Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine

Large Image :  Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine

Product Details:

Place of Origin: China
Brand Name: WXJQ
Certification: ISO9001
Model Number: WE67-300/4000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: iron pallet and wooden case container: ,20'OTx1
Delivery Time: 30 days
Detailed Product Description
Name: Sheet Metal Bending Machine/sheet Metal Press Brake Structure: Steel Welding Frame
Operating System: DA-65 System Worktable Height: 800mm
Upper Punching: Secton Gooseneck Punching Warranty: 15months
High Light:

metal sheet bender machine

,

electric sheet metal brake

Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine



sell the sheet metal press brake/ plate press brake/ sheet bending machine



Product Description:



Electro hydraulic CNC synchronized Hydraulic Press Brake

MODEL: WE67K-300/4000 with DA-65W system

Standard 4+1 Axes(X-backgauge, Y1 Y2-Left and right cylinder, R bacck gauge up,

V-Hydraulic crowning)







More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype:zouqicheng



QQ:2308574039







Machine Intrduction:



the CNC press brake WE67K-300/4000 are servo-proportional driven machines with

micro-electronics ensuring perfect control of the bending process. The position, speed

and pressing force of the Ram are controlled in a closed circuit at every point in the

work cycle. The position of the Ram is controlled by two digital high precision linear scales.

These linear scales are mounted on a independent C-frame on both side of the machine to

prevent deformation of the Press Frame for accurate bending depth or bending angle.



Hydraulic system:



Closed loop control composed of electrohydraulic servo valve and Linear Scale imported

from Gemany , with high feedback precision, accurate and stable operation, and high

repeated positioning precision.

Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine 0



Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine 1



Back Gauge Device:



Backague position and movement control by CNC controller DNC 600.

AC Servo motor with 2 Ballscrew and 2 Linear Way. Backgauge with 2 Precision

Fingers on Runner Block moving on Precision Linear Way.



Automatic Folding Sheet Metal Press Brake / Metal Sheet Bender Machine 2











Components List:



No. Item QTY Remarks
1 CNC Controller 1set DA-65W (Netherlands)
2 Servo Motor and Drive 1set Yaskawa Japan
4 Hydraulics 1set Rexroth Germany
5 Ball Screw 2 pcs HIWIN, Taiwan
6 Linear Way 2 pcs HIWIN, Taiwan
7 Hydraulic Fittings 1set PARKER,USA
8 Hydraulic Seals 1set Japan NOK
9 Linear Scale 2 pcs Heidenhain,Germany
10 Electric Components 1set Schneider



Optional equipment:

1. Control of additional axis like X1, X2, R1, R2, Z1 and Z2
2. Delem 65, 66, 69 and Cybelec 80, 1200, Modeva Series
3. Larger throat gap, higher daylight opening etc...
4. Quick manual or hydraulic Top Tool clamping
5. Additional back gauge universal finger blocks
6. Central motorised lubrication system

Technical Data:


No.

Name

Data

Unit

1

Nominal pressure

300

KN

2

Length of worktable

4000

Mm

·3

Stroke of Ram

250

Mm

4

Max. Open Height

480

Mm

5

Throat Depth

250

Mm

6

Distance between Housing

3100

Mm

7

Axis controlled

Y1,Y2, X and V



8

Back gauge’s  stroke

600

Mm

9

Overall Dimensions  (LxWxH)

4590x2510x3320

Mm



10

Downward speed

70

Mm/s

Working  speed



7.5

Mm/s

Returning  speed



75

Mm/s

11

Power of Motor

22

KW

12

Weight

21000

kg

13

Front support arms

2

piece



Enclosed Accessory:


  • Front arm support, 2pieces
  • foot switch
  • keys for button and electricla cabinet
  • Anchor bolt, 4 pieces
  • Nut, some pieces
  • Washer, some pieces
  • Oil gun, 1 piece

Our Service:


we can send our engineer to your site and do the training for your men. you will only

bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion

in your country

You can send your men to our factory. we will teach them how to operate the machine

with no training charges

Actually there is another cheap and easy way to choose. every machine leave our factory

with one book of operation manual. You can first read through the manaul,and get familiar

with the machine. Then we can get a video call,and teach you on-line how to operate t

he machine.

Apart from above training course,we also provide 2 year warranty for all the easily

broken part of the macine



download brochure here

hydraulic press brake.pdf
