Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears

Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears

  • Highlight

    hydraulic plate shearing machine

    ,

    hydraulic cnc shearing machine

  • Model
    QC12K-6X4000
  • Name
    Shear Machine/hydraulic Shearing Machine
  • Controller
    Touch Screen DTC-660
  • Rang Of Back Gauge
    20-800mm
  • Transport
    Ship Or Train
  • Material
    12MovSi
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    QC12K-6X4000
  • Minimum Order Quantity
    1 set
  • Packaging Details
    pallet with plastic cover
  • Delivery Time
    30 days
  • Payment Terms
    T/T or L/C

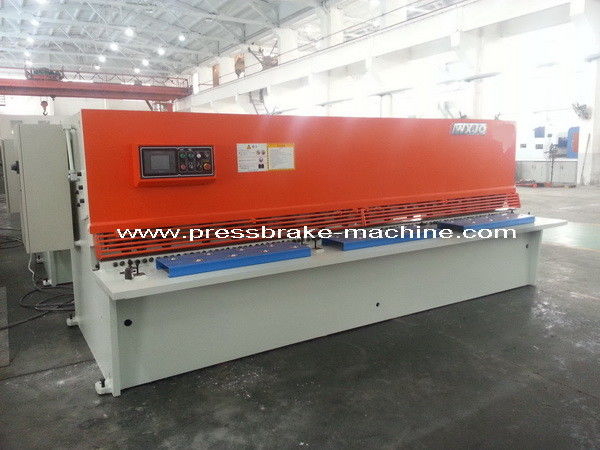

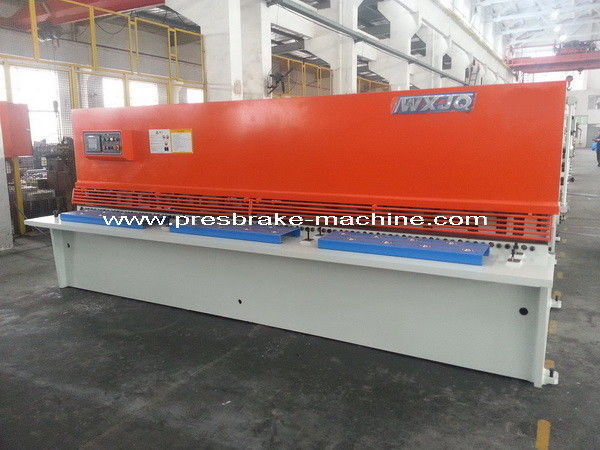

Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears

Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears



factory price for hydraulic shearing mahine/guillotine shear/CNC press brake machine/cutting machine/tandem press brake





Introduction:



A fully welded steel construction with high strength and rigidity.

Front-controlled backgauge by power fast-adjustment and manual fine-adjustment with

counter display.

Fast-adjusting device for blade clearance.

Reliable protection barrier. With counter.

Swing beam type cutting action, hydraulic driven to ensure stable and reliable and

easy to operating.

blade gap can be adjusted accurately and rapidly, top blade stroke can be adjusted stepless to

improve cutting speed.

Matching variety of back gauges and blade gaps which controled by CNC system.





Details:



1. welded frame and blade carrier

Strong steel welded frame and blade carrier are both temperaturetreated tp release the stree.

it improves the cutting precision of the shear.



Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears 0

2. back gauge:

the back gauge is adjsuted by mechnical system,and it can be fine adjusted by hand wheel

with read ou on the mechnical counter.

Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears 1

3. control panel:

the control panel include alarm light, setting switch, counter, pupt strat, emergency switch and the touch screen.it is easy to understand these using function.



Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears 2



4. hydraulic system:

the shear use best quality hydraulic block, valve, pump and hydraulic cylinders to ensure  the

hgih performance and hgih reliability.



Hydraulic CNC Guillotine Shearing Machine Sheet Metal Cutting Shears 3

5. electrical system:

the electrical system adopt low voltage to control and ue the famous brand electrical compents to improve the reliability







Major Elements:

1. CE Conformity including  Light guards
2.  Back gaueg control by the inverter and encode
3.  cutting depth and blade gap can Program on Control DTC-660
4.  control back gauge X and balde gap Z
5.  upper blade ahve two edges and bottom lade ahve four edges for change using
6.  the HRC of balde is 50-55
7. motorized driven back gauge on ball screws
8.  side front arms with scale and stooper
8. Side and rear safety guards and safety interlock switches


Technical Data:



NC hydraulic swing

beam shear

model

Shear

size

(mm)

Shear

angle



Cutting number

(min-1)

Back

gauge

(mm)

Main

motor

(KW)

Weight

(kg)

QC12K-4X2000 4X2000 1°30 ≥18 20-600 7.5 4000
QC12K-4X2500 4X2500 1°30 ≥18 20-600 7.5 5200
QC12K-6X2500 6X2500 1°30 ≥18 20-600 7.5 5200
QC12K-6X3200 6X3200 1°30 ≥14 20-600 7.5 6260
QC12K-6X4000 6X4000 1°30 ≥10 20-600 11 8700
QC12K-6X6000 6X6000 1°30 ≥7 20-800 15 23000
QC12K-8X2500 8X2500 1°30 ≥14 20-600 11 5300
QC12K-8X3200 8X3200 1°30 ≥10 20-600 11 6300
QC12K-8X4000 8X4000 1°30 ≥8 20-600 11 9650
QC12K-8X5000 8X5000 1°30 ≥7 20-750 15 21000
QC12K-10X2500 10X2500 ≥10 20-600 15 9150
QC12K-10X3200 10X3200 1°48 ≥8 20-600 15 9150
QC12K-10X4000 10X4000 ≥10 20-800 18.5 14500
QC12K-12X2500 12X2500 ≥10 20-600 15 7380
QC12K-12X3200 12X3200 1°30 ≥8 20-800 18.5 12500
QC12K-12X4000 12X4000 ≥7 20-800 18.5 18000
QC12K-16X2500 16X2500 ≥8 20-800 18.5 12200
QC12K-16X3200 16X3200 ≥7 20-800 18.5 16300
QC12K-16X4000 16X4000 ≥7 25-800 30 20000
QC12K-20X2500 20x2500 2°30 ≥6 20-800 37 14000
QC12K-20X3200 20x3200 2°30 ≥5 25-800 37 20000
QC12K-20X4000 20x4000 2°30 ≥5 30-1000 37 25000






























































Enclosed Accessory:


  • Front arm support, 4pieces
  • Anchor bolt, 4 pieces
  • Nut, some pieces
  • Washer, some pieces
  • Oil gun, 1 piece
  • Foot pedal 1 piece

More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039



download brochure here

hydraulic shearing machine.pdf
