450Mpa Hydraulic CNC Shearing Machine 380v Electric Shear Cutter Machine
new products hydraulic shearing mahine/guillotine shear/press brake machine/cutting machine
Structure of 6mm plate shearing machine:
1.Totally European design, streamlined looking. This machine belongs to second genaration of
Mechanical shear. Welded structure: the stress of the welded parts can be eliminated by vibration,
so this cutting gives high accuracy.
2. The motor driven precision guillotine shear adopts the England design Q11 Mechanical
guillotine shear, also nemed Electro Precision Plate Shear is specially used for thin plate sheets.
3. Different from the traditional driving methos of mechanical shear, it's one of the most advanced
miniature mechanical shear, and enjoys good reputation both at home and abroad.
4. The low cutting angle and inclined shear direction reduce bowing and twist to a minumum.
Blade clerance is
5. easily set by a manually operated quick set device. Its an ideal precision machining equipment
of metal sheet and nonferrous metal sheet.
More information please contact us:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype:zouqicheng
QQ:2308574039
Feature of Jinqiu hydraulic shearing machine:
1. This machine is different from the treditional driving method of mechanical shears.
2. It is one of the most advanced miniature mechanical precision shear, and enjoys good reputation
both at home and abroad.
3. As brake motor driving though the shaft-mouted speed reduction unit for safety
and low noise operation.
4. The low cutting angle and inclined shear direction reduces bowing and twist to a minimum.
Blade clerance is set by a manually operated quick set device.
5. It's an ideal true-cut machining equipment of metal sheet and nonferrous metal sheet.
6. A brake motor driving through a shaft-mounted speed reduction unit and controlled by
a selector switch for single or continuous strok
7. The machine by the European Union CE certificaiton and ISO quality system certificaiton.
Application from the CNC sheet metal cutting machine JINQIU manufacturer:
Hydraulic shearing machine is the sheet metal industry under the cutting tool,
Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding,
electrical appliances, engineering equipment, sheet metal processing, steel pipe welding,
electronic industry, aerospace industry, agricultural machinery manufacturing, dining
furniture machinery industry.
Components List of CNC hydraulic plate cutting machine:
No. | Item | QTY | Remarks |
1 | CNC Controller | 1set | DTC660 touch screen |
2 | Servo Motor and Drive | 1set | Yaskawa Japan |
4 | Hydraulics | 1set | ATOS ITALY |
5 | Ball Screw | 2 pcs | HIWIN, Taiwan |
6 | Linear Way | 2 pcs | HIWIN, Taiwan |
7 | Hydraulic Fittings | 1set | EMB,USA |
8 | Hydraulic Seals | 1set | Japan NOK |
9 | hydraulic pump | 1 pcs | China |
10 | Electric Components | 1set | Schneider |
Technical Data of hydraulic swing beam shearing machine:
Type | CNC hydraulic shear machine |
Max. thickness of plate | 6mm |
Max. width of plate | 3200mm |
Workbench thickness | 50mm |
Wallboard thickness | 40mm |
Anti-strength of plate | 450N/mm2 |
Shear angle | 1°30′ |
Back gauge range | 20-800mm |
Stroke times | 14 times/min |
Throat depth | 150mm |
Blade length | 3200mm |
Main motor | 7.5KW |
Oil pump | 10MCY14-1B |
Dimension(LxWxH) |
3840×1610×1630 (mm) |
Machine weight | 6500kg |
Our Service:
we can send our engineer to your site and do the training for your men. you will only
bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion
in your country
You can send your men to our factory. we will teach them how to operate the machine
with no training charges
Actually there is another cheap and easy way to choose. every machine leave our factory
with one book of operation manual. You can first read through the manaul,and get familiar
with the machine. Then we can get a video call,and teach you on-line how to operate t
he machine.
Apart from above training course,we also provide 2 year warranty for all the easily
broken part of the macine
download brochure here
hydraulic shearing machine.pdf

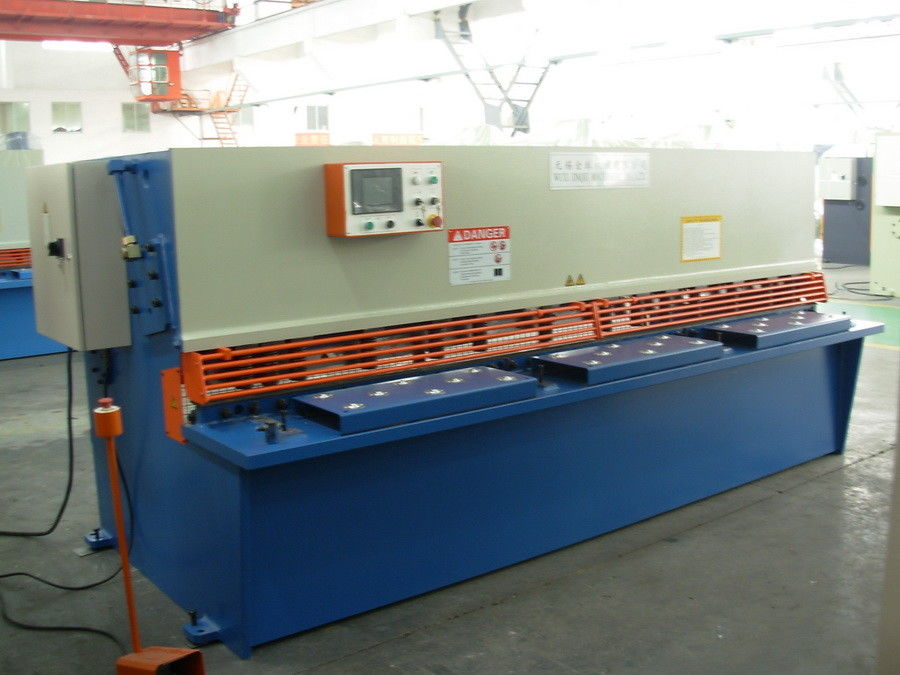

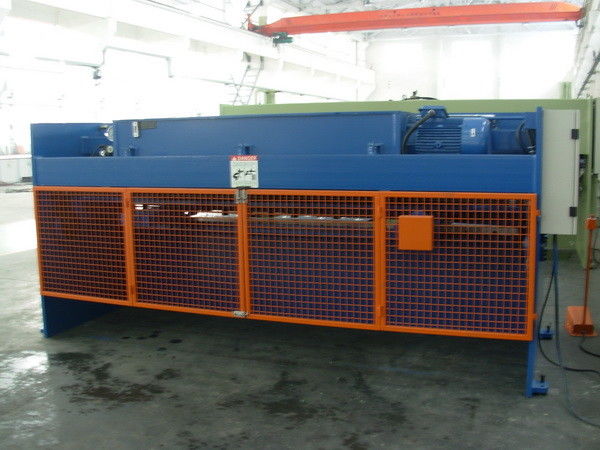

Machine Picture of CNC electrical shearing machine:
