Heavy Duty Hydraulic Shearing Machine 20mm Sheet Metal Guillotine Shear

Heavy Duty Hydraulic Shearing Machine 20mm Sheet Metal Guillotine Shear

  • Highlight

    steel shearing machine

    ,

    hydraulic cnc shearing machine

  • Name
    Standard Hydraulic Cutting Machine/hydraulic Shearing Machine
  • Dispaly
    Mechnical Display
  • Max. Cutting Thickness
    20mm Mild Steel
  • Blade Length
    1300mm Long
  • Cutting Angle
    2 Degree
  • Hydraulic System
    Hydraulic Integrated System
  • Place of Origin
    China
  • Brand Name
    WXJQ
  • Certification
    ISO9001
  • Model Number
    QC12Y-20X2500
  • Minimum Order Quantity
    1 set
  • Packaging Details
    pallet with plastic cover
  • Delivery Time
    30 days
  • Payment Terms
    T/T or L/C

Heavy Duty Hydraulic Shearing Machine 20mm Sheet Metal Guillotine Shear

Heavy Duty Hydraulic Shearing Machine 20mm Sheet Metal Guillotine Shear



supply hydraulic shearing mahine/guillotine shear/press brake machine/cutting machine/CNC press brake machine/tandem press brake





Main Features:



1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress

relief process by Annealing treatment.

2. Boduan engineers utilize parametric 3D SolidWorks using FEM & DOE analysis

as well as static and mechanism analysis.

3.Boduan Hydraulic Shearing Machine is a Swing Beam Action machine which is

produced in a variety of cutting lengths and capacity options.

3. Adopt integrated hydraulic system, more reliable and easy for maintenance.

and the hydraulic system from Bosch-Rexroth, Germany,

4. Equipped with lighting-alignment, so as to align when shearing. The stroke

of knife beam can be adjusted in stepless mode.

5. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.

6. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,

7. Safe fence and the electric interlocker have been designed for the machine to

ensure the operation safety.





More information please contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039



Standard Equipment:



1. Rapid and precise blade clearance adjustment by single handle

on the side frame

2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel

3. Cutting Line Illumination and wire for shadow line cutting

4. Counter of Strokes, Cutting Length Adjustment

5. Hydraulic and Electrical overload protection

6. Squaring Arm and Front Support Arms

7. Germany Bosch-Rexroth Hydraulic

8. Telemecanique/SchneiderElectrics

9. Hydraulic and Electrical overload protection

10. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.

11. Side guard is standard meeting CE regulations.



Better Cuttings:



1. Backgauge adjustment according to blade gap.

2. Backgauge retraction feature.

3. Sub-program and programming loop.

4. Sequence repeat function.

5. Auto cutting (Flying cut).



Description:



1. Hydraulic drive, swing beam, steel plate welded frame, high intensity

and good rigidity.
2. Stress eliminate, whole frame machining, ensure good precision.
3. Indicator-based manual adjustment of blade gap is convenient and fast
4. The machine is equipped with lighting alignment device, and uses stepless

control for the stroke of up tool carrier
5. The machine uses protection fence for safe operation
6. Digital display device for size of back gauge and shearing times available



Technical Parameter:





Model QC12Y-20x25000
Maximum shear plate thickness mm 20
Maximum cutting width mm 2500
Shear plate strength N/m² 450
shear angle deg 2
Cutting times Times/Min 7
Maximum rear stop stroke mm 20-800
Fuel tank volume L 715
Main motor power K w 30
machine length mm 3450
Machine width mm 2075
Machine height mm 2515
machine weight Kg 19000





Packing And Shipping:



1. the machien adopt iron pallet with plastic cover to pack after the machine is

running and testing for 48 hours.

2. Before loading, stable package, professional and skilled loader reduce

damage of product during transport



Shipping Documents:



  • Operation Manual(hydraulic diagram,electro diagram)
  • Foundation plans
  • foundation bolts
  • footswitch
  • Oring parts
  • Quality Certification
  • Packing list
  • Colors: According to Customer's requirements



 download brochure here

hydraulic shearing machine.pdf

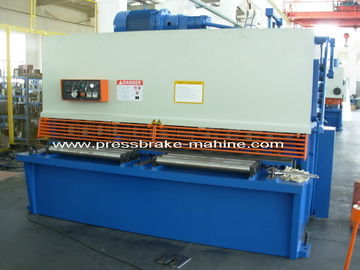

Machine picture:




Heavy Duty Hydraulic Shearing Machine 20mm Sheet Metal Guillotine Shear 0
