2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover

2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover

  • High Light

    cnc grooving machine

    ,

    v groove cutting machine

  • Name
    CNC V Cutting Machine/ V Grooving Machine
  • Cutting Width
    1250mm
  • Sheet Thickness
    6mm Stainless Sheet
  • Color
    Whit And Gray
  • Feeding Speed
    2m/min
  • Control Axes
    2 Axes(Y And Z)
  • Place of Origin
    China
  • Brand Name
    JQ
  • Certification
    CE
  • Model Number
    BC05K-1250X5000
  • Minimum Order Quantity
    Min. 1 set
  • Packaging Details
    iron pallet and wooden case container: 20'GPx1
  • Delivery Time
    30 days
  • Supply Ability
    5 set every month

2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover

2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover



 new type CNC sheet V grooving machine, 8mm thickness V groover,V cutting machine,CNC notching machine


Groover Machine CNC Function
The overall use of frame structure design, increasing the mechanical rigidity,reduce the surface deformation
The base keeps level, the beam drives through the rack and pinion, speed can be arbitrarily transformed,
which making smooth cutting, machining of V groove bright flat.
CNC Controller control X,Y,Z axles, which is accurate and production range.
We adopt pneumatic pressing and clamping tools, which is adjustable to suit different needs on the size.
We provide free training and some knives to our customers. If anything wrong,
we can provide the broken key parts for free within one year.

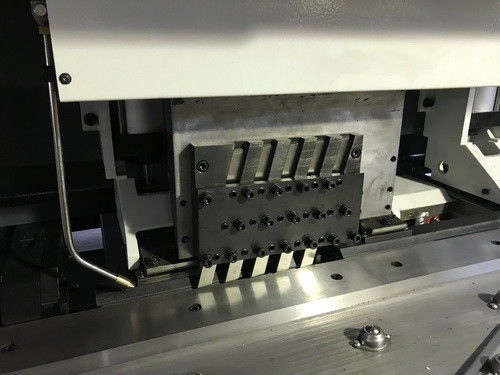

2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover 0

Click the photo to check the video of sheet V grooving machine


CNC metal sheet V grooving machine Feature
This equipment is fully CNC V Groover Machine for metal sheet. It adopts advanced

CNC system and innovative design with the advantages of high processing precision, simple operation, no noise, no vibration and so on.

It is widely used in the sheet metal V-groove, U groove and other irregular groove processing (including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates.). Particularly, it is applicable to the V-groove processing of sheet metal before bending

it can cut Max.8mm thickness stainless steel.

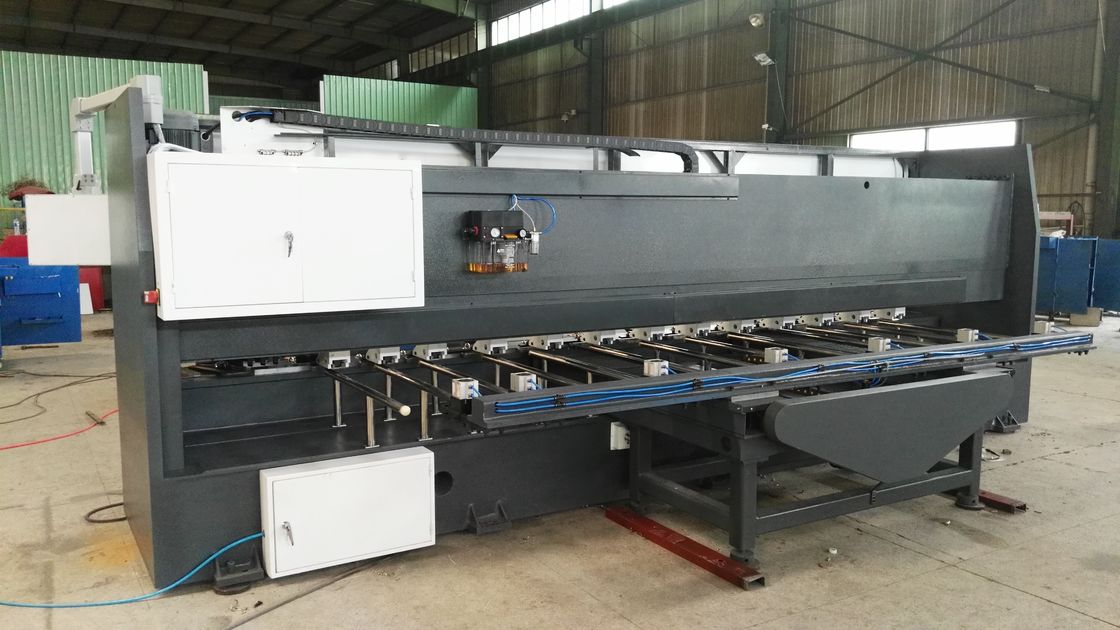

2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover 1

V grooving machine advantages
1. precision:within 0.02mm
2. PLC system,easy to operate
3. widely use,grooving all the steel
4. customize to your need
5. cnc with servo motor

6. Pneumatic drive

sheet V grooving machine Specification


Technical parameters 3200mm 4000mm 5000mm 6000mm
Thickness (mm) 0.3-6 0.3-6 0.3-6 0.3-6
Length(mm) 4000 4000 4000 4000
Width (mm) 850-1500 850-1500 850-1500 850-1500
Grooving speed(m/min) 15-60 15-60 15-60 15-60
Grooving Area (mm) 2.25 2.25 2.25 2.25
PlateFeeding (m/min) 5-0.5 5-0.5 5-0.5 5-0.5
Y axle Min. unit 0.01 0.01 0.01 0.01
Y axle Min. positioning accuracy 0.05 0.05 0.05 0.05
Z axle Min. unit 0.01 0.01 0.01 0.01
Z axle Min. positioning accuracy 0.02 0.02 0.02 0.02
X axle Motor power(kw) W=4 W=4 W=4 W=4
Y axle Motor power(kw) W=1.5 W=1.5 W=1.5 W=1.5
Z axle Motor power(kw) W=1 W=1 W=1 W=1
Air pressure (Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Dimension (L*W*H)mm 4800*2200*2300 5600*2200*2300 6600*2200*2300 7600*2200*2300


Warranty
1. Our guarantee time is 13 months from shipment date. If any component is damaged

during
guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and

trainingfreely. The customer provide the double trip tickets, food and accommodation

for our engineer.

3. The customer can send the engineer to our factory to learn the operation

and maintains freely.
4. Our factory provide the service for the customer forever, if the customer need

operation help, can contact us by MSN, Skype, Email and Telephone at any time,

we provide 24 hours on-line
service.



More information please contact us:



wxmachinery@163.com



WhatsApp:+86 13961729519



Skype: zouqicheng



QQ: 2308574039

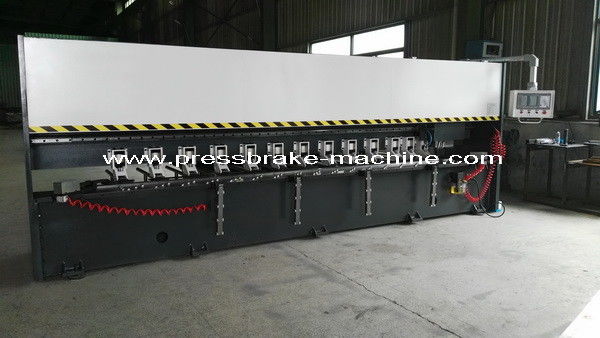

V grooving Machine picture


 2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover 2

 2 Axes CNC V Grooving Machine 2 m/min For Stainless Sheet CNC V Groover 3
