    CNC Notching Machine/v Grooving Machine
  • Worktable Length
    5000mm
  • Feeding Range
    1250mm Width
  • Control System
    H4C System
  • Structure
    Welded Frame Structure
  • Motor Power
    4 KW
  • Place of Origin
    China
  • Brand Name
    JQ
  • Certification
    CE
  • Model Number
    SBC-1250X4000
  • Minimum Order Quantity
    Min. 1 set
  • Packaging Details
    iron pallet and nude packing
  • Delivery Time
    35 days
  • Supply Ability
    5 set every month

V Groove Milling Cutter V Grooving Machine / Mild Steel CNC Notching Machine


V Groove Milling Cutter V Grooving Machine / Mild Steel CNC Notching Machine



 supply V grooving machine, V groover,V cutting machine,sheet metal V grooving machine,CNC notching machine

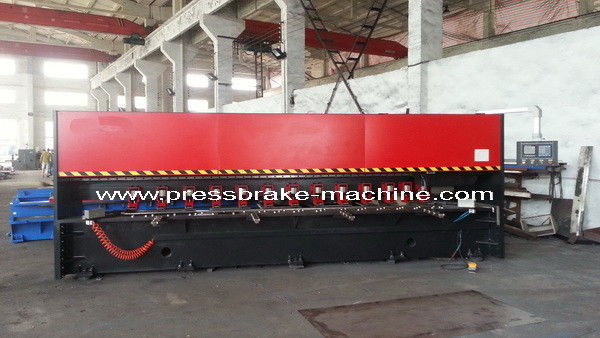

Machine Characteristics:

The SBC V grooving machine is used to make a slotting on the sheet metal to

get the sharp edge angle after bending , the machine adopt precision ball screw

and linear guide way as its transmission, and has high machining accuracy, so it

is particularly significant for high class-products. This structure is universally used

on relevant equipment in foreign countries.

the Grooving machine is subject to three axis controlling. Its axis X( longitudinal

movement of knife rack), axis Y (transversal movement of rear feeding unit) and

axis Z(vertical movement of knife rack) are all subject to servo control, it can realize

full automatic machining after parameter are set up to improving the accuracy of groove.

the transport ball screw is multiple-thread structure with precise machining.

It is character with many force bearing point, reasonable stress distribution and

reliable drive.clamping system adopt the hydraulic system to drive, large pressure,

reliable fastening force. Lowe noise and small energy consumption.

the rear feeding unit is driven by double screw structure and its surface

has high positioning accuracy.

the guild way of knife rack is made of cast iron. it have abrasion resistance

and have repair function to prolong the service life.

the NC program is reasonably designed and easy to learn to learn. the equipment

can realize automatic machining after the parameters are input. there are multiple

interlocking safeguard measure for safe operation.



welcome to contact us:

wxmachinery@163.com

WhatsApp:+86 13961729519

Skype:zouqicheng

QQ:2308574039





Our Service:


Before shipment,we will install and adjust the machine,make the test run to

keep everything is going well.When the machine is ready in customer's factory,

if you need our assistance,we could arrange our engineeer to your factory,to help

and teach your worker how to operate the machine.

The guarantee is 1 year.During the period,if the machine is broken due to its quality

problem,we could send the electrical parts with free.



Features



Whole machine body welded by steel plates with high strength and small

deformation.

Full CNC automatic working

Automatic clamping and loosening

Blade moving meanwhile sheet works stay in its place, so save space

Quick changing of blades

Three sets blades working together to save time

Knock-down front support arms for long work pieces

Servo motor to ensure high precision

Less noise and high performance




Components and parts :

control system: HUST H4C system
communication cable:  IGS  Germany
servo motor: DETA brand   Taiwang

proximity switch:  OMRON   Japan

linear rolling guide: HIWING   Taiwang

ball screw: HINWING  Taiwang

motor: SEW   Germany

pneumatic componets: AIRTAC  Germany

cooling system: Beiqier  Geramny

inverter: DELTA   Taiwang
 alloy balde: korea



Technical date:



The Max. width of the slotting plate 1250mm
The Max. length of the slotting plate 4000mm
The Max. thickness of slotting plate 3mm
The Min. thickness of slotting plate 0.6mm
The Max. distance of rear feeding unit 1200mm
The Min. unit of front& back moving the rear feeding unit 0.01mm
The Max. speed of rear feeding unit 800-2000mm/min
The Max. distance of up& down moving for knife rack 100mm
The Min. unit of up& down moving for knife rack 0.01mm
The Max. distance of left& right moving for knife rack 4300mm
The Max. speed of moving for knife rack 60mm/min
Straightness error in 4000mm long ±0.10mm
The positioning accuracy ±0.05mm
Features of GBC V groove machine products list
  Model Overall dimension
1 1220X3200 4800x2200x2100mm
2 1220x4000 5600x2200x2100mm
3 1220x5000 6600x2200x2100mm
