V Groover Hydraulic CNC V Grooving Machine , 2.2 KW V Cutter Gantry Type
-
High Light
cnc grooving machine
,v groove cutting machine
-
NameGantry Type CNC V Cutting Machine/ V Grooving Machine
-
FeartureLow Noise,quick Cutting Speed And Easy Operating
-
X Axes Drive Power5.5KW
-
Hydraulic Pump Power2.2KW
-
Weight9000kg
-
Structure45 Steel Welded Frame Structure
-
Place of OriginWUXI
-
Brand NameJQ
-
CertificationCE
-
Model NumberBC1200X4000
-
Minimum Order QuantityMin. 1 set
-
Packaging Detailsiron pallet and wooden case container: 20'GPx1
-
Delivery Time30 days
-
Payment TermsL/C or , T/T
-
Supply Ability5 set every month

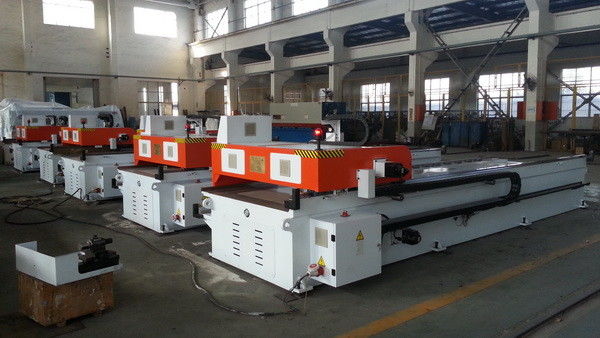

V Groover Hydraulic CNC V Grooving Machine , 2.2 KW V Cutter Gantry Type

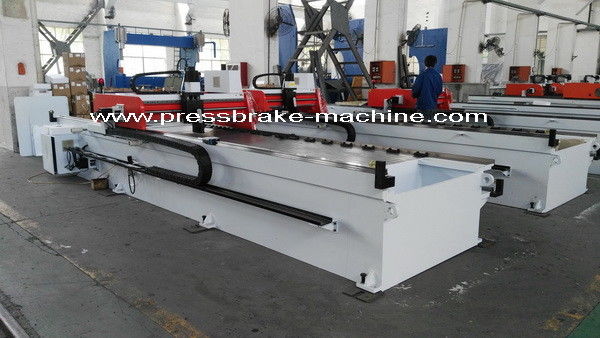

V Groover Hydraulic CNC V Grooving Machine , 2.2 KW V Cutter Gantry Type
exporting V grooving machine, V groover,V cutting machine,sheet metal V grooving machine,CNC notching machine
CNC V groove cutting machine Performance:
Our Gantry-Type High Speed CNC Notching Machine is dedicated to the top-grade
building decoration industry. It 's base and beams are welded structure design, the
overall steel is well and less deformation. The base is fixed ,with the help of helical
gears &rack driving to make the beam moves that achieves cutting.
Servo unit adjustable of the mobile speed, smooth and efficient cutting process&
smooth cutting surface. With three-Axis numerical control machine has high positioning
accuracy, large processing range.
It has individual front feed and end feed. The Pressure is adjustable and the press is
reliable with hydraulic and pneumatic compression.
The machine has a self-planning function. If the table is not flat or defective after
long- time be used, you can use self-planed features for reset.
welcome to contact:
wxmachinery@163.com
WhatsApp:+86 13961729519
Skype:zouqicheng
QQ:2308574039
CNC V grooving machine Advantages:
cutting depth precision:within 0.03mm
CNC system,easy to operate
widely table use,grooving all the steel
customize to your need
cnc with servo motor
Pneumatic cooling
hydraulic clamping
easy load& unload the workpiece
avoid scratch the face of the workpiece
V grooving machine Feature:
Whole machine body welded by steel plates with high strength and small deformation.
Full CNC automatic working
Automatic clamping and loosening
Blade moving meanwhile sheet works stay in its place,so save space
5Quick changing of blades
Three sets blades working together to save time
Knock-down front support arms for long work pieces
Servo motor to ensure high precision
Less noise and high performance
sheet V grooving machineTechncial Parameter:
| Model | 4000mm | 5000mm | 6000mm |
| Thickness (mm) | 0.3-3 | 0.3-3 | 0.3-3 |
| Length(mm) | 4000 | 5000 | 6000 |
| Width (mm) | 850-1500 | 850-1500 | 850-1500 |
| Grooving speed(m/min) | 15-60 | 15-60 | 15-60 |
| Grooving Area (mm) | 2.25 | 2.25 | 2.25 |
| Plate speed (m/min) | 5-0.5 | 5-0.5 | 5-0.5 |
| Y axle Minimum unit | 0.01 | 0.01 | 0.01 |
| Y axle Minimum positioning accuracy | 0.05 | 0.05 | 0.05 |
| Z axle Minimum unit | 0.01 | 0.01 | 0.01 |
| Z axle Minimum positioning accuracy | 0.02 | 0.02 | 0.02 |
| X axle Motor power(kw) | W=5.5 | W=5.5 | W=5.5 |
| Y axle Motor power(kw) | W=1 | W=1 | W=1 |
| Z axle Motor power(kw) | W=1 | W=1 | W=1 |
| Air pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Dimension (L*W*H)mm | 5000*2200*2100 | 5800*2200*2100 | 6800*2200*2100 |
6m sheet CNC grooveing machine Quality Guarantee:
Since press brake machine reached the agreed destination, its main parts will be
guaranteedwithin one year or 1000 hours (subject to the earlier mature term).
We take charge of all troubles caused by plate rolling machine's fault and repair
according to the regulation
stipulated by original plants. Factors not accordance with the regulation of original
plantssuch as daily consumed components, wrong operating, lack of maintenance
are not included in the quality guarantee.
Our products are sold all over the world, you can rest assured.
