CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency

CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency
CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency

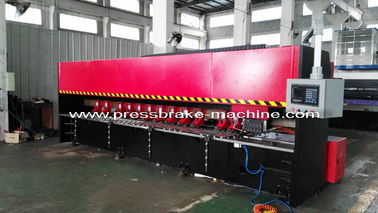

Large Image :  CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency

Product Details:

Place of Origin: China
Brand Name: JQ
Certification: CE
Model Number: VBC-1250X5000

Payment & Shipping Terms:

Minimum Order Quantity: Min. 1 set
Packaging Details: iron pallet and wooden case container: ,40'OTx1,40'HQx2
Delivery Time: 30 days
Supply Ability: 5 set every month
Detailed Product Description
Name: CNC Sheet Slotting Machine/sheet V Grooving Machine Dispaly: Digital Dispaly
Max. Cutting Thickness: 4 Mild Steel And Stainless Steel Voltage: 380v Or Special Order
Groove Depth: 70% Thickness Of Sheet Electrical System: Low Voltage Control
High Light:

cnc grooving machine

,

sheet metal grooving machine

CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency



supply 6mm stainless steel V grooving machine, V groover,V cutting machine,CNC plate v grooving machine



Information for CNC v groover BC05K-1250X4000

4m length CNC V groover Machine to cut the groove on the stainless steel and mild steel.

The equipment adopts the big pitched ball screw and high torqued servo motors as the main drive, which makes knives more stable and faster when processing.

The worktable of high strong plate as the surface makes the workpieces not easy to wear in machining.

A panel with the adjustable fuselage during the workpiece activities makes the point to every bit of mesa precision in 0.02 mm distance that within.

Equipment which adopts PLC man-machine interface programming allows the operating personnel easy to understand and locate accurately.



6mm stainless sheet V groving machine Performace

The machine is designed for cutting Grooves on metal sheets and plates,

such as steel, aluminum, aluminum, copper, plastic, wood and acrylic panels.

It is especially and widely used in Stainless sheet decoration field, to make V grooves before bending.

vertical type machine, alloy steel welded structure, and whole frame stress annealed,

having good rigidity and strength and durability.

Whole table planed in house with good flatness

Open-architecture CNC controller, extensible for new function

3-blade cutting head, working with high efficiency.

High speed sliding Blade Carrier, driven through Ball screw and Linear Guide rail,

with high repeat positioning accuracy.Hydraulic clamping pad unit,Spray Cooling system

Bought-in Parts and Components are world top class, Parker hydraulic piping and

fittings, THK hydraulic and heavy duty Linear Guide Rail, Panasonic AC Servo Motor,

Newcastle Planetary Reducer, Schneider Electric Components, NSK Bearings, IGUST

Power cable and Cable Towline, YUKEN hydraulic Valves, HERG Lubricating system,

R+W Coupling.HUST H4C CNC system from Taiwa

CNC Sheet Metal Surface V Groove Machine from 4000mm to 6000mm



Plate V cutting machine technical parameter

1 Type

CNC Grooving machine ( V cutting machine)

2 Thickness of plate 0.6-4mm
4 Length for plate to be processed 4000mm
5 Width of plate 1250mm
6 Cutting velocity 15m/min-60m/min
8 Feeding speed 2m/min-0m/min
9 Y axis minimum unit set 0.01mm
10 Y axis minimum position accuracy ±0.05
11 Z axis minimum unit set 0.01mm
12 Z axis minimum position accuracy ±0.03
13 X axis motor power 4kw
14 Y axis motor power 1.5kw
17 Z axis motor power 1kw
18 Pneumatic pressure 0.4-0.6Mpa
19 Dimension 5600×2200×2300mm
20 Weight about 8200kg
21 Controller system DELTA 220V input
22 Lubrication system Automatic lubricating
24 Delivery date 30days after receive down payment



Better Cuttings

1. high quality alloy blade

2. fast cutting speed.

3. flatness worktable

4. high efficiency cooling device

5. distribution uniformity pneumatic clamping

CNC Plate V Grooving Machine Equipped 380V 60HZ , V Groove Cutter High Efficiency 0



CNC v grooving machine description

the CNC Notching Machine is dedicated to the top-grade building decoration industry.

It 's base and beams are welded structure design, the overall steel is well and less deformation. The base is fixed ,with the help of helical gears &rack driving to make the beam moves that achieves cutting.

Servo unit adjustable of the mobile speed, smooth and efficient cutting process&

smooth cutting surface. With three-Axis numerical control machine has high positioning accuracy, large processing range.

It has individual front feed and end feed. The Pressure is adjustable and the press is reliable with hydraulic and pneumatic compression.

The machine has a self-planning function. If the table is not flat or defective after

long- time be used, you can use self-planed features for reset.



Packing And Shipping

1. the machien adopt iron pallet with plastic cover to pack after the machine is

running and testing for 48 hours.

2. Before loading, stable package, professional and skilled loader reduce

damage of product during transport
