Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine

Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine

  • High Light

    sheet metal guillotine shear


    guillotine metal cutter

  • Control System
    DLELM Control System
  • Name
    NC Hydraulic Guillotine Shear/ Hydraulic Guillotine Shear
  • Application
    Cutting Sheet Metal
  • Cutting Force
  • Weight
  • Cutting Angle
    0.5-2 Degree
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: ,40'HQx1
  • Delivery Time
    30 days

Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine

Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine


exporting  hydraulic guillotine shear, hydraulic shearing machine,hydraulic cutting machine, sheet press brake machine, CNC press brake,tandem press brake, bending machine

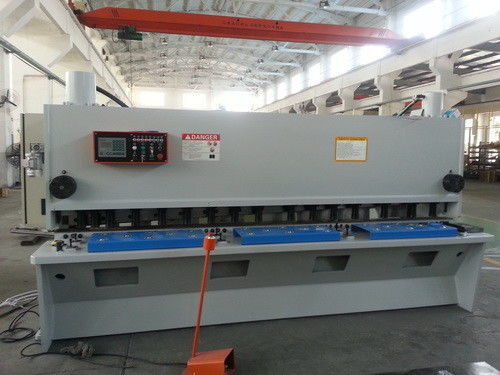

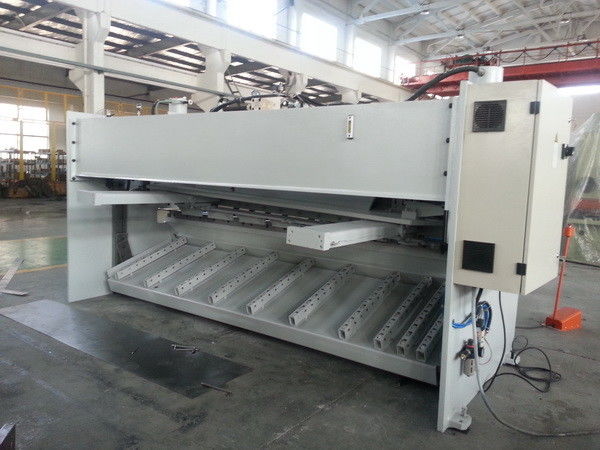

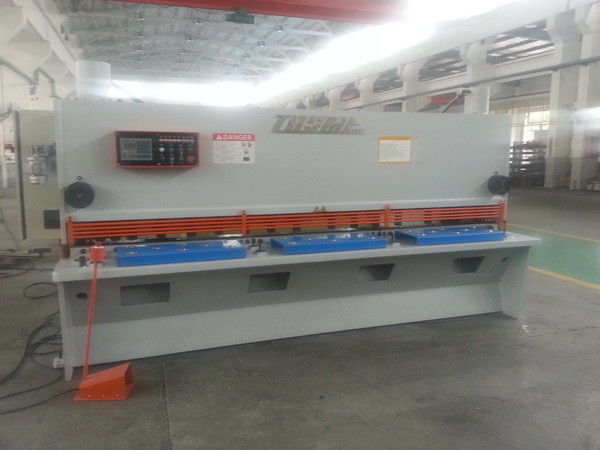

  1. the guillotine shear withTotally European design,streamlined looking
  2. the frame of the shearing machineTaking off inner-stress of welded parts by tempering,good stability
  3. the body of the plate shear Remove rust with sand-blast and coated with anti-rust paint
  4.  the Frames, assembly surfaces and connection holes are machined afte the welding process,up to 60' in a single pass.
  5. The design of the plate cutting machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.
  6. the shearing machine use to cut the mild steel, stainless steel and aluminum sheet in some industries.

Technical Feature:


1 Type CNC Hydraulic guillotine Shear
2 Cutting length 3200 mm
3 Cutting thickness 6 mm (mild steel at 450 Mpa)
4 Shear angle 1°30’
5 Number of stroke per minute 14
6 Throat depth 150 mm
7 Control system DAC-310 system  Netherlands
8 Control axis X back gauge and blade gap
9 servo motor YASKWA  Japan
10 Screw of back gauge Ball screw
11 Stroke back gauge 20-600mm
12 Main motor 7.5kw
13 Main Electric Elements in cabinet Schneider or Siemens
14 Seal in the cylinders NOK, made in Japan
15 Hydraulic pump China
16 Main hydraulic components China
17 Net weight 9000 kg
18 overall size (mm) 3870x1610x2010
19 Packing: Iron Pallet with rainproof cover
20 Delivery date                                                             25 working days


Shearing machine Precision Test

1. geometrical accuracy

item for testing sketch



tolerance actual measurement
uniformity of the blades gap


Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine 0

6mm 0.06mm      0.05mm
parallelism between edge of bottom blade and backgauge


Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine 1



0.20 mm(length over 1000)   0.15mm/m

2. cutting presision

item for testing sketch tolerance actual measurement
straightness of the test piece


Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine 2


(length over 1000)

parallelism of the test piece


Electrical NC Hydraulic Guillotine Shear Plate Cutting Mahine 3


(length over 1000)


































Hydraulic Shear Electrical system and the safety interlock

  • Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a
  • radiation unit is fitted in electrical cabinet.
  • Protective fence and the safety interlock to ensure the operation safety. Have a
  • movable single-hand pedal switch,easy to operate.
  • The machine by the European Union CE certification and ISO quality system certification

CNC Back Gauge(X axis)And Pneumatic Support

  1. X axis back gauge clearance are controlled by CybTouch 6 which ensuresa higher cutting accuracy, Backgauge with Optional ball screw and line guide rail,
  2. the maximum stroke of backgauge can realize 500mm.
  3. Backgauge bar which swings with the top beam to prevent material from jamming
  4. Powerful holddown cylinder to avoid the sheet sliding during cutting
  5. the shear equipped the pneumatic support, it avoid the thin sheet down fall during
  6. cutting to get better quality workpiece.

Packing and Shippping:

  • Seaworthy packing ,plastic film and iorn pallet
  • Packaging optional: Wooden case
  • Loading port: Shanghai or Ningbo
  • the machine transport by sea or railway
  • Technical service all life .
  • Warranty: 24months
  • Engineer available to service machinery abroad.
