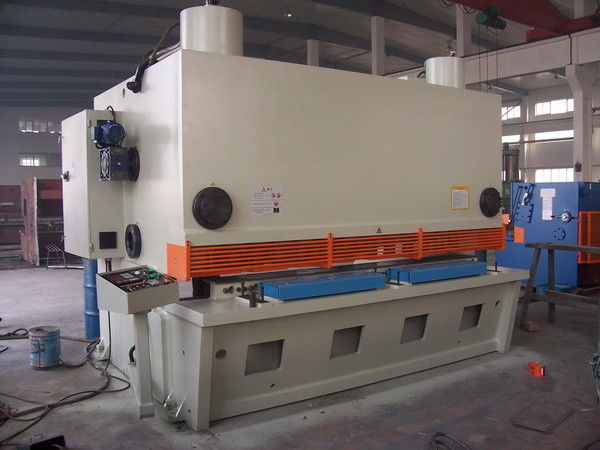

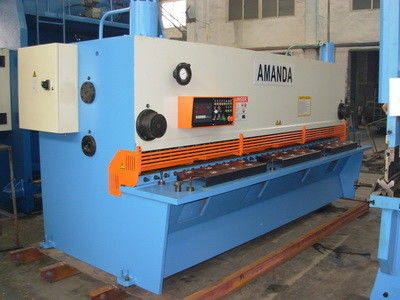

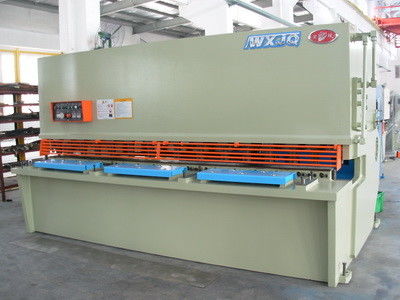

Foot Operated Guillotine For Metal Cutting , Mechanical Guillotine Shear
hot sell providing hydraulic guillotine shear, hydraulic shearing machine,hydraulic cutting machine, sheet press brake machine, CNC press brake,tandem press brake, bending machine
- the shear machine is Streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
- As the cutting beam has been designed in inner-inclined structure, it is easy
- for plates to fall down and the accuracy of products can also be guaranteed.
- High accuracy, high efficiency, simple and convenient operation, good performance,
- favorable price and best service.
- The machine by CE certification and ISO quality system certification
80 tons plate shearing machine parameter
|1||Cutting size||30x2500||mm||Mild steel|
|3||Cutting speed for 30x2500mm||4||Min-1|| |
|4||Back gauge rang||20-1000||mm|| |
|5||Throat Depth||100||mm|| |
|6||Main motor||45||KW|| |
|7||High between worktable and floor||900||mm|| |
|8||Axises controlled||X back gauge|| ||600mm|
|9||Worktable clamping cylinders||14||piece|| |
|12||Front support arms||4||piece|| |
|13||Voltage of machine||Client’s request|| ||415v/380v|
thin sheet guillotine shear Machine Features
- The second generation of sheet metal shear.
- Welded steel plate construction, heating to eliminate stress,
- with high strength and good rigidity.
- Advanced integrated hydraulic system with and excellent reliabitity quality.
- Rapidly,accurately and conveniently adjusting the blade clearance by motor
- The adjustable rake angle can minimize plate deformation.
- As the cutting beam has been designed in inner-inclined structure,
- it is easy for plates to fall down and the accuracy of products can be
- also guaranteed.
- Shearing in sections,shadow-line cutting.
- Counter for the motorized back gauge.
- Back support device (optional).
Advantage of metal sheet guillotine shear
- It’svery popular in metalworking market for cutting metal sheets
- Various model of cutting 4-40mm thickness and 1000-9000mm length.
- Steel welded construction, vibrating aging function
- Shearing gap can be adjusted stepless at will and can do sectional cut
- Debug and good after-sales service
- Motorized back gauge and cutting number can digital readout
- Power break protection device to guarantee safety during maintenance
Standard Equipment for hydraulic shear
- E21 or E200 NC control System
- Motorized Back gauge X-axis
- automatic adjsuting the gap between up blade and bottom blade
- LG Inverter controlled back gauge
- HIWIN Ball screws & Polished rod with 0,05mm accuracy.
- Squaring Arm and Front Support Arms
- Demestic famous Hydraulic system
- Germany EMB Tubing connector
- Germany Siemens Main Motor
- Telemecanique Electric components
- Hydraulic&Electrical overload protection
- Testing the sheet metal machines.
- 24 Hours technical support for sheet metal shear
- After sales services abroad.
- life long time advices to the machines.
- send spare parts durign the guarantee time.
download brochure here
hydraulic guillotine shear.pdf
