Mechnical Hydraulic Guillotine Shearing Machine 6.5m Shear Steel

Mechnical Hydraulic Guillotine Shearing Machine 6.5m Shear Steel

  • High Light

    cnc guillotine shearing machine


    guillotine metal cutter

  • Name
    Standard Hydraulic Cutting Machine/hydraulic Guillotine Shear
  • Dispaly
    Mechnical Display
  • Max. Cutting Thickness
    20mm Mild Steel
  • Blade Length
    1300mm Long
  • Cutting Angle
    2 Degree
  • Hydraulic System
    Hydraulic Integrated System
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: ,40'OTx1,40'HQx2
  • Delivery Time
    30 days

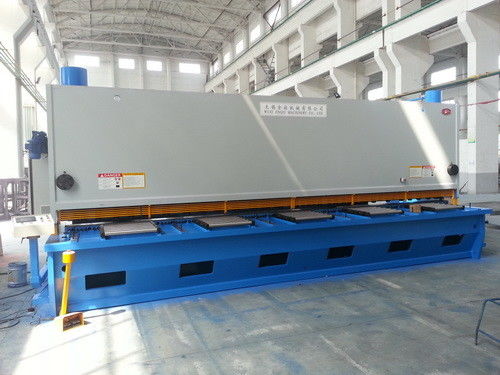

Mechnical Hydraulic Guillotine Shearing Machine 6.5m Shear Steel

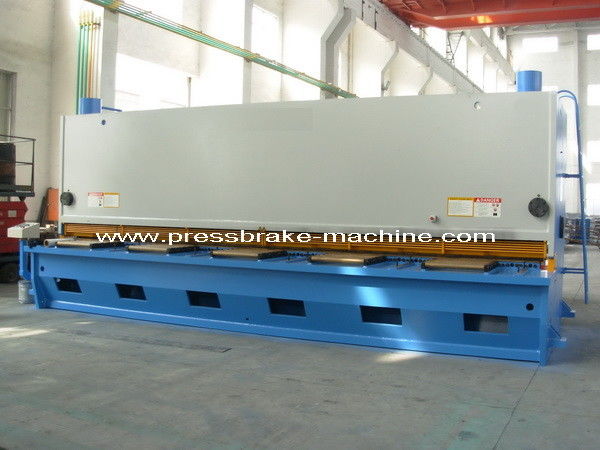

Mechnical Hydraulic Guillotine Shearing Machine 6.5m Shear Steel
buy hydraulic guillotine shear, hydraulic shearing machine,hydraulic cutting machine, sheet press brake machine, CNC press brake,tandem press brake, bending machine
Product Description

  1. the thick sheet cutting machine equip the Well-known top and bottom tool
  2. the shearing machine are long lasting stiffened and provide precise bending.Silent high pressure pump
  3. the guillone shear EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
  4. The use of advanced integrated hydraulic system, good reliability;
  5. We used three point type rolling guide, eliminate rail gap to improve
  6. the quality of cutting,; mechanical back gauge, manual adjustment,
  7. digital display;
  8. The blade gap handwheel adjustment, rapid, accurate, convenient;
  9. The rectangular blade, the four blade can be used, long service life.
  10. Adjustable shearing angle, reduce the distortion of plate material;
  11. The tool carrier by tilting structure, easy to feed, and can improve the
  12. accuracy of the work;
  13. The function of shearing in sections; with the function of lights on the line;
  14. The material supporting device after (the other choice)

Hydraulic shear machine parameter


Model                QC11K-16x6500
Maximum shear plate thickness mm 16
Maximum cutting width mm 6500
Shear plate strength N/m² 450
shear angle deg 0.5-2.5
Cutting times Times/Min 4
Maximum rear stop stroke mm 20-1000
Fuel tank volume L 1550
Main motor power K w 37
machine length mm 7450
Machine width mm 2550
Machine height mm 3170
machine weight Kg 39000

Our Service


1.Installation Service
Installation Services are available with all shenchong machines. We dispatch technician to customer's factory for installation and preoperation of machines.
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making).
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Machine warranty is 2year. We offer flexible extended warranties if needed.

 Machine Introduction

1. Rack part

  • By the frame structure of steel plate welding, with good rigidity,
  • two oil cylinder fixed on the top two columns, the workbench to
  • stud welding connection.Under the blade mounted
  • on the workbench, and can make minor adjustments, make blade gap even.

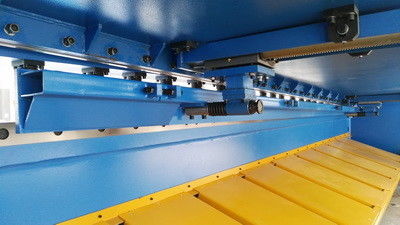

2. Upper slide rest

  • For steel plate welded structure, with good rigidity, after its former roller
  • for the fulcrum,in the driving of the oil cylinder reciprocating movement
  • up and down around the complete shear.Adopts three point rolling guide rail,
  • eliminate the guide clearance, improve the quality of shear.Rectangular blade,
  • four parts all can use, long service life.Rest on the structure of
  • introversion, facilitate blanking, and can improve the precision of the work.
  • Rest on the shearing Angle is adjustable, reduce the deformation of
  • sheet metal distortion,
  • the handwheel adjustment on the front panel, the left side of the blade
  • gap instructions;Front and rear guide rail and the roller adopt alloy steel forging.

3. Press device

  • By installing more pressure on the supporting plate in front of the frame material
  • of oil cylinder,
  • material cylinder inlet pressure, pressure is expected to head down after
  • overcome the spring tension,pressure plate, after completion of the shear,
  • by means of the torsion spring
  • tension and reset.
  • The size of the force that press a material increases with increasing by shear
  • of the thickness of the sheet metal.

4. Keep-off institutions

  • Before keep-off:By the before keep-off rack and Scale and left limit baffle,
  • etc composition.
  • After keep-off(back gauge):In the upper slide rest under the rung, Along
  • with the rest on the upand down, back gauge regulation by screw driven
  • by a motor drive. Control the movement distance,
  • and has a soft limit loading system.. The motor can not meet the need to
  • size, manual and fine-tuning to ensure that the required values to adjust.
  • So the back gauge adjustment
  • is convenient and reliable.

5. Machine hydraulic system

  • This machine adopts hydraulic transmission, the main gear pump, hydraulic
  • system through one-way valve,relief valve system, electromagnetic directional
  • valve and livestock can opener, etc.
  • The system is reasonable,
  • the movement is stable and reliable.
  • According to mark the direction of arrow rotation after motor startup,
  • ( When the electromagnetic valve does not work) Drive gear pump will be filtered
  • oil through oil suction pipe into the valve plate and the electromagnetic valve
  • after back to the tank.
  • Supply pressure by the gear pump used in the system,
  • the system maximum working pressure for 20 Mpa, set by the overflow valve,
  • the hydraulic valve have been setting before they go out, normally the user d
  • oes not need any adjustment, Shanghai hydraulic
  • valve is used in the hydraulic valve, all seal wall card, choose Japan line
  • decorate concise, less leakage,easy maintenance and debugging.

6. The machine electrical system

  • This machine adopts the 50 hz, 380 v ac power supply, by the main loop of
  • the transformer output 220 voltage control, electromagnetic relief valve,
  • indicator light and button.. Machine electrical box located on the left side
  • of the machine tool, control button in front of the machine installation,
  • easy operation,which leads to the pedal switch SA3 lead by the electric box.
  • The machine through the knob switch can be a single, continuous and
  • dynamic capabilities. Machine also has the shear length adjustment,
  • turn knob, time relay external knob, can adjust length of shear, rotate the rotary
  • switch SA2, rev. Bright lights to the line, mobile cut sheet metal, make the row
  • in the sheet metal processing line and machine blade projection overlap,
  • can shear required results. Electrical components by Siemens.
  • Main circuit has corresponding overload and short circuit protection function,
  • safe and reliable, easy to maintain.
