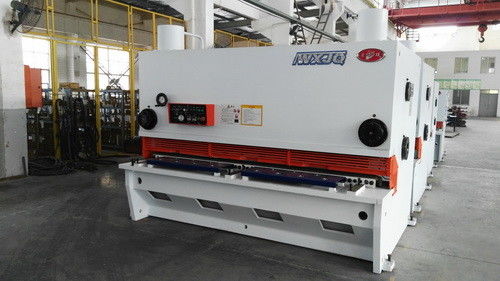

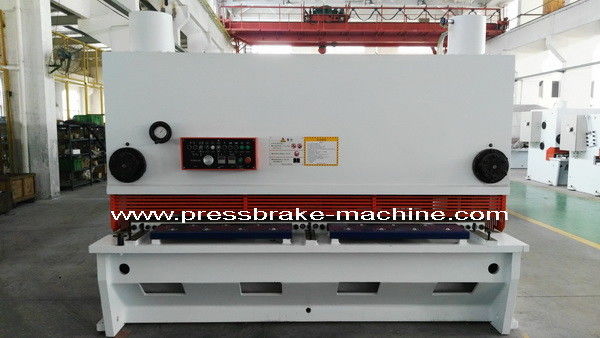

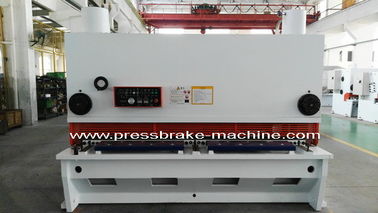

Heavy Duty Metal Cutting Shears 16mm Steel Structure 22 kw Motor

Heavy Duty Metal Cutting Shears 16mm Steel Structure 22 kw Motor

  • High Light

    cnc guillotine shearing machine


    guillotine metal cutter

  • Name
    Metal Sheet Cutting Machine/hydraulic Guillotine Shear
  • Cutting Material
    Tensile Strength 450Mpa Or Q235
  • Back Gage Range
    800mm Width
  • Working Type
    Top Moving Type
  • Motor Power
    22 Kw
  • Blade Life
    One Year For One Edge
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Packaging Details
    iron pallet and wooden case container: ,20'OTx1
  • Delivery Time
    30 days

Heavy Duty Metal Cutting Shears 16mm Steel Structure 22 kw Motor

Heavy Duty Metal Cutting Shears 16mm Steel Structure 22 kw Motor

we are manufacturer of  hydraulic guillotine shear, hydraulic shearing machine,hydraulic cutting machine, sheet press brake machine, CNC press brake,tandem press brake, bending machine


Shearing machine Feature


The sheet cutting machine has fully steel welded structure, with stress eliminated by vibration

aging technology, typical of excellent rigidity and stability.

Advanced hydraulic integrated valve block is employed, and the pipeline connection

is minimized in a compact structure, to enhance the system reliability and maintainability.

Blade clearance is adjustable.

As the cutting beam has been designed in inner-inclined structure, it is easy for plates

to fall down and the accuracy of products can be also guaranteed.




Model QC11Y-12×2500 QC11Y-12×3200 QC11Y-16×2500 QC11Y-16×3200
Plate   12×2500 12×3200 16×4000 16×3200
Shear Angle   0.5-2.5° 0.5-2.5° 0.5-2.5° 0.5-2.5°
Cutting speed min-1 8 ≥8 ≥7 ≥7
Back Gauge Adjustment mm 20-800 20-800 20-800 20-800
Throat Depth mm 120 120 120 120
Main Motor Power kW 15 15 22 22
Net Weight kg 8000 9500 10800 13150

Outline Size


mm 3195×1825×2180 3895×1860×2295 3235×1950×2345 3935×2000×2350


Hydraulic system


  • Adopt integrated hydraulic control system, more reliable and easier for maintenance.
  • The hydraulic system consists of motor, oil pump and valve group and it is installed at the top of the oil box.
  • Every complete working cycle can be achieved through the control of hydraulic valve.
  • The remote adjustment valve can adjust the working pressure at the right side of the
  • wall board.
  • Overload and overflow protection is outfitted to hydraulic system, which can assure
  • no leakage, and the oil level can be read directly.

Blade adjustment and cutting precision

  • Adopt hand wheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.
  • The rectangular monoblock blades featuring long life with 4 cutting edges Shearing
  • angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.


  • The frame is entirely welded with steel plates, and treated to relive stress by tempering.
  • It adopts three point supporting type rolling guide way to raise shearing precision.
  • Rectangle knife which has four blades has a lasting life.
  • The portable and prompt adjustment of the blades gap and the value of gap are
  • indicated by digital, convenient and fast.
  • Equipped with lighting-alignment, so as to align when shearing.
  • The stroke of knife beam can be adjusted in step less mode.
  • Protection fence to ensure the operation safety.
  • The display devices of the back gauge value and the shearing times are on the front
  • of the machine.
  • The shearing angle can be adjusted.

Major Elements:

  1.  CE Conformity including  Light guards
  2.  Back gaueg control by the inverter and encode
  3. cutting depth and blade gap can Program on Control DTC-660
  4. control back gauge X and balde gap Z
  5.  upper blade ahve two edges and bottom lade ahve four edges for change using
  6.  the HRC of balde is 50-55
  7.  motorized driven back gauge on ball screws
  8. side front arms with scale and stooper
  9. Side and rear safety guards and safety interlock switches


Enclosed Accessory

  • Front arm support, 4pieces
  • Anchor bolt, 4 pieces
  • Nut, some pieces
  • Washer, some pieces
  • Oil gun, 1 piece
  • Foot pedal 1 piece

Our service


Seller canarrange people go abroad for installation and test .

The cost at home is paid by seller ,but cost a broad include the round-trip ticket

should be paid by buyer .

Seller offers the operation manual (English).

Seller offers one set of wearing parts and one set tools for installation

and maintenance .

Length of warranty : one year as from the date of acceptance.

one year as from the date of installation and acceptance. Within the 1 year ,

if the accessory is demaged exce pt the human factor of your parts, we will

express a new related accessory (free) and instruct you how to repair. exceed 1 year.,

if the accessory is demaged we can express a new related accessory (changed)

and instruct you how to repair

Buyer can arrange people here to examine and verify the machine, buyer also

can send people here to learn how to use the machine (it’s free of charge to learn )
