Full Automatic Feeding CNC Hydraulic Guillotine Shear Machine 6mm Pneumatic clamping
exporting hydraulic guillotine shear, hydraulic shearing machine,hydraulic cutting machine, sheet press brake machine, CNC press brake,tandem press brake, bending machine
380V mechnical sheet guillotine shear Characterristic
- The CNC hydraulic shearing machine is programmable guillotine shear with
- full automatic controlling. Its gauging system are at front working table with
- full auto control;
- The front feeding drive by servo motor, etter positioning. Fast feeding speed..
- Its CNC system adopts DAC310 from DELEM. LCD display, provides a complete
- solution for shearing machines, including the control of backgauge, cutting angle,
- stroke length and gap, based on state of the art electronics.
- Its welded steel plate construction, hydraulic drive and welded blades frame,
- with high strength and good rigidity. Full hydraulic driven returns steadily and quickly.
- The rolling guide with 3-point support and improves the shearing quality.
- Back gauge adopts ball screw and drive without clearance.
- Depending on the application you can select either two-side positioning
- or single side positioning with spindle fault correction
95 tons cutting force sheet shear machine Operational Principle
- The sheet cutting machine adopt the suitable blade clearance between motorial
- above blade and fixed under blade, which form shearing force to sheet metal with
- various thickness and separate the sheet with required size. Shearing machine is
- one of the forging machinery, which is widely used in aviation, light industry,
- metallurgy, chemical industry, construction, shipbuilding, automobile, electric power,
- electrical appliances, decoration and other industries. This equipment is applied
- to cutting drawing bending extrusion and the form Hydraulic Guillotine Shearing
- Machine process to various strength metal sheets.
Techncial Data of 2500mm front feeding hydraulic shearing machine
| No. |
Type |
CNC Hydraulic GuillotineType |
| 2 |
Cutting Length |
3200mm |
| 3 |
Cutting Chickness |
6 mm(mild steel at 450Mpa) |
| 4 |
Shearing Angle with Indicate |
0.5~1.5 degree adjustable |
| 5 |
Number of stroke per minute |
9 |
| 6 |
Throat depth |
100mm |
| 7 |
Front feeding range |
3000mm |
| 8 |
Main motor |
7.5kw |
| 9 |
CNC control system |
DAC310, DELEM |
| 10 |
CNC axes |
Front feeding , cutting stroke,
cutting clearance and cutting angle
|
| 11 |
Positioning precision |
±0.10/300 |
| 12 |
Gripper number |
7 pieces |
| 13 |
Weight |
11500kg |
| 14 |
Before packing size (mm) |
5650X1400X1730 |
Advantage of DAC310T shearing machine
- Competitive price: It is can meet your budget and best-selling business very well.
- OEM Accepted: We can produce any your request design.
- Good Service: We treat clients as friends.
- Good Quality: We have strict quality control system. Good reputation in the market.
- Fast & Delivery: We have big discount from forwarder (Long Contract).
-
Service
- During the production we arrange the samples lot as per the customer requirement,
- then we send the samples photo and samples to the customer to approval.
- After the production finish we send the samples to customer to check, after customer
- approval we ship the goods to the customer.
- After customer received the goods we check and take the necessary follow-up with
- the customer in order to solve some small mistakes in next lot.

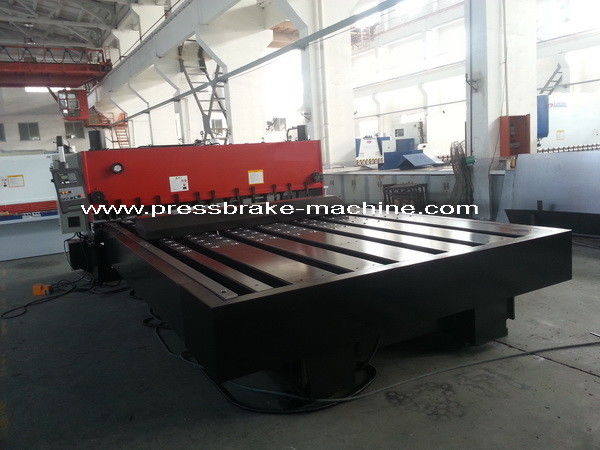

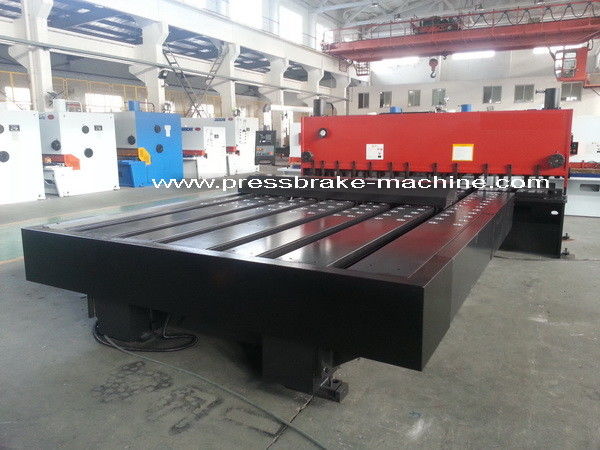

Machine picture of pnuematic shearing machine 4mmX2500mm.
